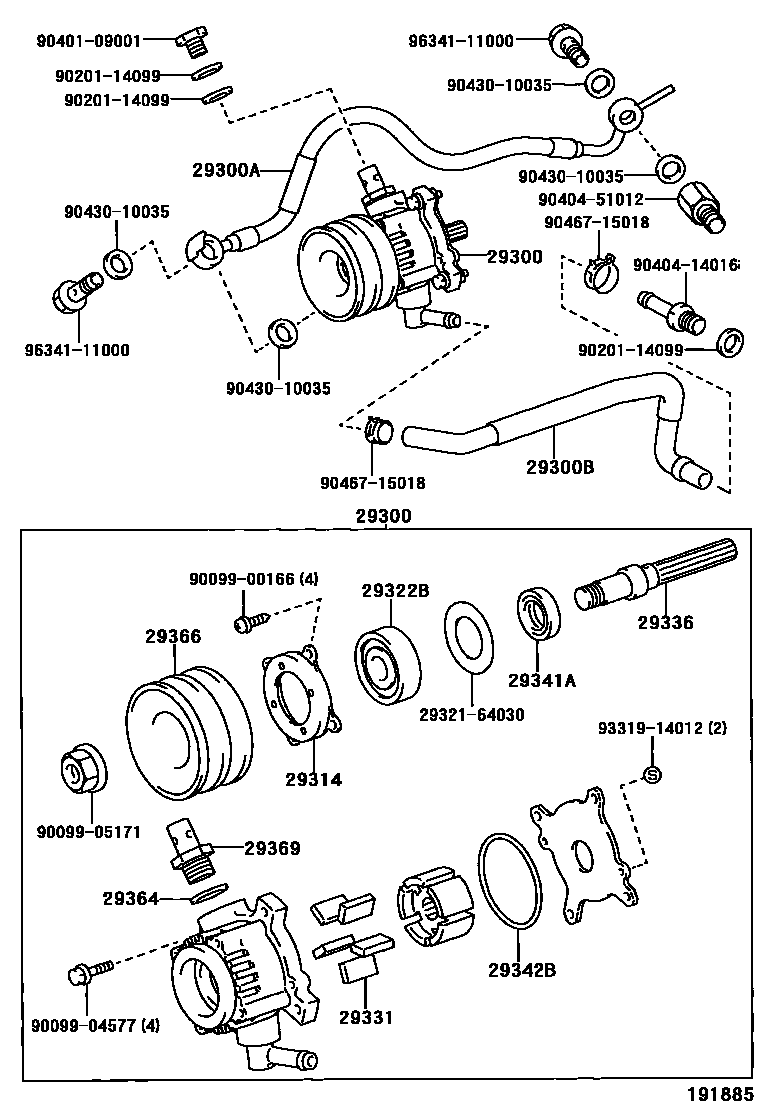

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-54180i2L..LF50199912

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02118i2L..LF50199912

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54050i2L..LF50199912

29314RING, STOP

main29314-64030i2L..LF50199912

29322BBEARING, VACUUM PUMP

main90099-10199i2L..LF50199912

29331BLADE, VACUUM PUMP, A

main29331-54130×5i2L..LF50199912

29336SHAFT, VACUUM PUMP

main29336-64031i2L..LF50199912

29341ASEAL, OIL

main29341-64030i2L..LF50199912

29342BRING, O

main29342-64030i2L..LF50199912

29364WASHER, VACUUM PUMP

main29364-66010i2L..LF50199912

29366PULLEY, VACUUM PUMP

main29366-54110i2L..LF50199912

29369VALVE SUB-ASSY, CHECK

main29369-64030i2L..LF50199912

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9040414016

main90404-14016

9040451012

main90404-51012

9043010035

main90430-10035

9046715018

main90467-15018

9331914012

main93319-14012

9634111000

main96341-11000

24 parts on this diagram · 2 diagrams in section
