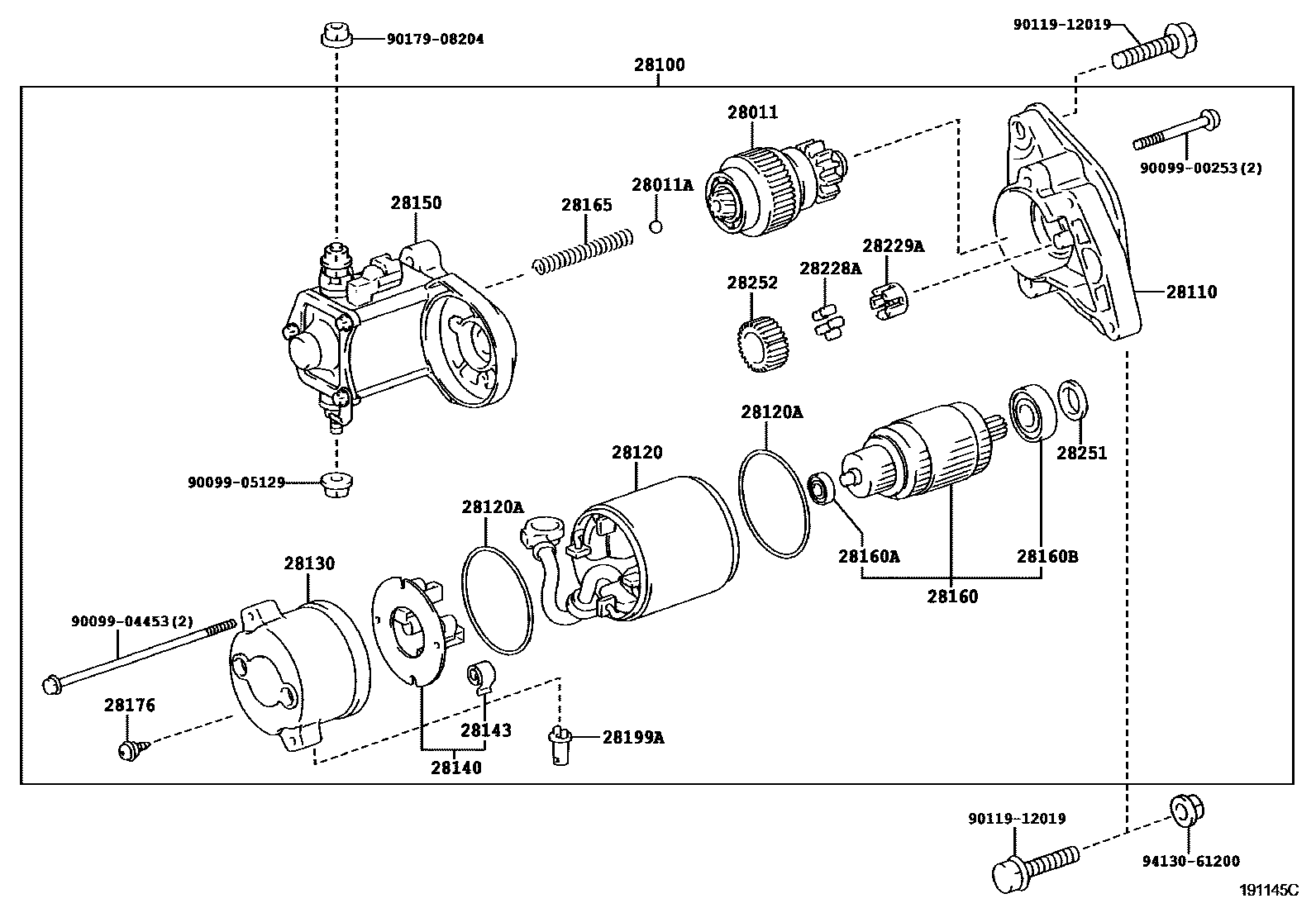

STARTER
28011CLUTCH SUB-ASSY, STARTER
28011ABALL, STARTER CLUTCH
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
28120YOKE ASSY, STARTER
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
28140HOLDER ASSY, STARTER BRUSH
28143SPRING, STARTER BRUSH
28160ARMATURE ASSY, STARTER
28160ABEARING, STARTER ARMATURE
28160BBEARING, STARTER ARMATURE, NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
28199APROTECTOR, DUST STARTER
28228AROLLER, STARTER CLUTCH
28229ARETAINER, STARTER IDLE GEAR
28251PINION, STARTER DRIVE
28252GEAR, STARTER IDLE
9009900253
main90099-00253
9009904453
main90099-04453
9009905129
main90099-05129
9011912019
main90119-12019
9017908204
main90179-08204
9413061200
main94130-61200
26 parts on this diagram · 2 diagrams in section
