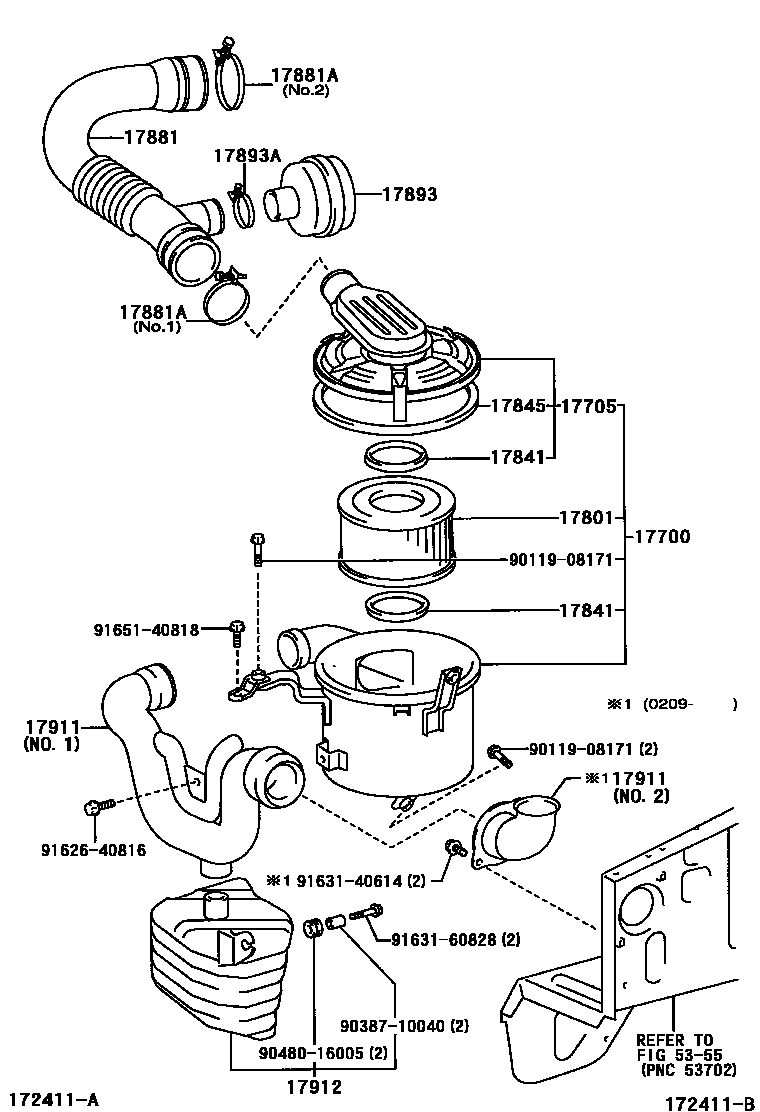

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-05030i2L..LF50..DLX,STD199912

sub17700-05090

main17700-0C090i1RZE..RZF50200201

17705CAP SUB-ASSY, AIR CLEANER

main17705-05020i2L..LF50199912

main17705-0C060i1RZE..RZF50200201

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-35030i2L..LF50199912

17841GASKET, FILTER ELEMENT

main17841-54010×2i2L..LF50199912

17845GASKET, AIR CLEANER CAP

main17845-54020i2L..LF50199912

17881HOSE, AIR CLEANER, NO.1

main17881-54710i2L..LF50199912

main17881-75200i1RZE..RZF50200201

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i2L..LF50199912

NO.2

main96111-10750i2L..LF50199912

NO.1

main96111-10780×2i1RZE..RZF50..GL200201

NO.2

17893RESONATOR, INTAKE AIR

main17893-54210i2L..LF50199912

17893ACLAMP, HOSE

main96111-10450i2L..LF50199912

main96111-10500i1RZE..RZF50200201

17911DUCT, COOL AIR INTAKE, NO.1

main52810-0B060i2L..LF50199912-200209

main52810-0B100i2L..LF50200209

NO.1

main52810-0B120i1RZE..RZF50200201-200209

main52810-0B130i1RZE..RZF50200209

NO.1

main52810-0B150i1RZE..RZF50200209

NO.2

17912DUCT, COOL AIR INTAKE, NO.2

main52820-0B040i2L..LF50199912

main52820-0B090i1RZE..RZF50200201

5355

9011908171

main90119-08171

9038710040

main90387-10040

9048016005

main90480-16005

9162640816

main91626-40816

9163140614

main91631-40614

9163160828

main91631-60828

9165140818

main91651-40818

19 parts on this diagram · 2 diagrams in section
