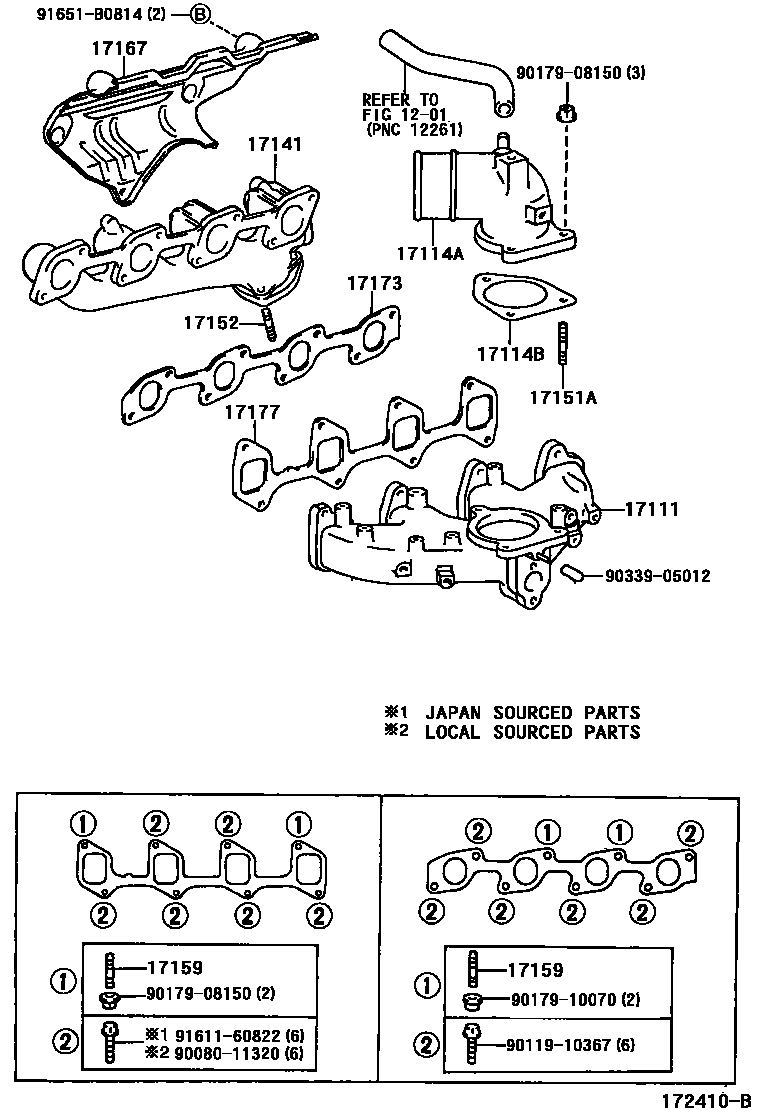

MANIFOLD
1201
17111MANIFOLD, INTAKE
W(EGR), ENGINE NO.=9000001-9999999
ENGINE NO.=0002001-9000000
W(EGR), ENGINE NO.=0002001-9000000
17114AFLANGE, INTAKE
17141MANIFOLD, EXHAUST
W(EGR)
17151ABOLT, STUD(FOR MANIFOLD TO VENTURI)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
(J)
(L)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD,(J)
EXHAUST MANIFOLD,(J)
INTAKE MANIFOLD,(L)
EXHAUST MANIFOLD,(L)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(J)
9008011320
main90080-11320
9011910367
main90119-10367
9017908150
main90179-08150
9017910070
main90179-10070
9033905012
main90339-05012
9161160822
main91611-60822
91651B0814
main91651-B0814
18 parts on this diagram · 2 diagrams in section
