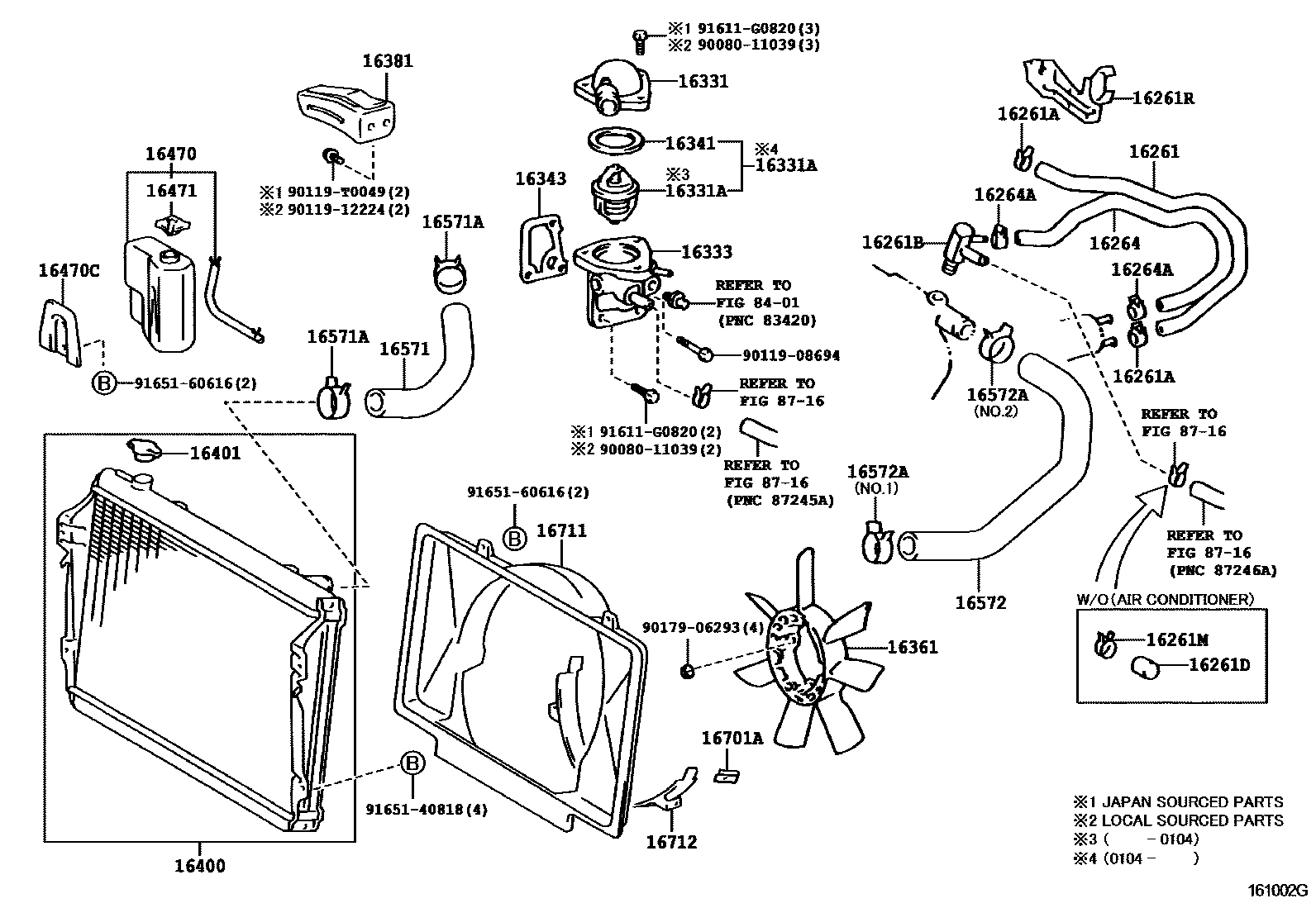

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16261HOSE, WATER BY-PASS

main16261-54121i2L..LF50199912-200412

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15022×2i2L..LF50199912-200412

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-54037i2L..LF50199912-200412

16261DPLUG, W/O HEATER

main90339-16001×2i2L..LF50..STD199912

16261MCLIP, W/O HEATER PLUG

main90467-22011×2i2L..LF50..STD199912-200412

16261RCLAMP OR CLIP(FOR WATER BY-PASS HOSE)

main90929-01219i2L..LF50199912-200412

16264HOSE, WATER BY-PASS, NO.2

main16264-54121i2L..LF50199912-200412

main16264-75050i1RZE..RZF50200201-200412

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15022×2i2L..LF50199912-200412

main96135-51300×2i1RZE..RZF50200201-200412

16331OUTLET, WATER

main16304-75010i1RZE..RZF50200201-200412

main16331-54090i2L..LF50199912-200412

16331ATHERMOSTAT

main16340-54040i2L..LF50..DLX,STD200403-200412

*WAX 82-95

main90916-03106i2L..LF50199912-200104

*WAX 88-100

main90916-03116i2L..LF50199912-200104

*WAX 82-95

main90916-03120i1RZE..RZF50200201-200412

*WAX 82-95

16333HOUSING, WATER OUTLET

main16333-54113i2L..LF50199912-200412

16341GASKET, WATER OUTLET

main16341-05020i2L..LF50199912-200403

(L)

main16341-35010i2L..LF50199912-200412

(J)

main16341-75010i1RZE..RZF50200201-200412

16343GASKET, WATER OUTLET HOUSING

main16343-05010i2L..LF50199912-200403

(L)

main16343-54040i2L..LF50199912-200412

(J)

16361FAN

main16361-54070i2L..LF50199912-200412

main16361-75020i1RZE..RZF50200201-200412

16381BAR, FAN BELT ADJUSTING

main16381-54121i2L..LF50199912-200303

main16381-75050i1RZE..RZF50200201-200412

16400RADIATOR ASSY

main16400-05080i2L..LF50199912

main16400-0C130i1RZE..RZF50200201

16401CAP SUB-ASSY, RADIATOR

main16401-05050i1RZE..RZF50200201

16470TANK ASSY, RADIATOR RESERVE

main16470-05020i2L..LF50199912

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-05020i1RZE..RZF50; 2L..LF50200211

main16611-12020i1RZE..RZF50200201-200211

16471CAP SUB-ASSY, RESERVE TANK

main16471-05010i1RZE..RZF50200201

16571HOSE, RADIATOR, INLET

main16571-05040i2L..LF50199912

main16571-0C070i1RZE..RZF50200201

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005×2i1RZE..RZF50200201

16572HOSE, RADIATOR, OUTLET

main16572-05040i2L..LF50199912

main16572-0C060i1RZE..RZF50200201

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37005i2L..LF50199912-200412

NO.1

main90467-41002i2L..LF50199912-200412

NO.2

16701ACLIP(FOR FAN SHROUD)

main90468-06092×2i2L..LF50199912

16711SHROUD, FAN

main16711-05040i2L..LF50199912

main16711-0C080i1RZE..RZF50200201

16712SHROUD, FAN, NO.2

main16712-05030i2L..LF50199912

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9008011039

main90080-11039

9011908694

main90119-08694

9011912224

main90119-12224

90119T0049

main90119-T0049

9017906293

main90179-06293

91611G0820

main91611-G0820

9165140818

main91651-40818

9165160616

main91651-60616

37 parts on this diagram · 3 diagrams in section
