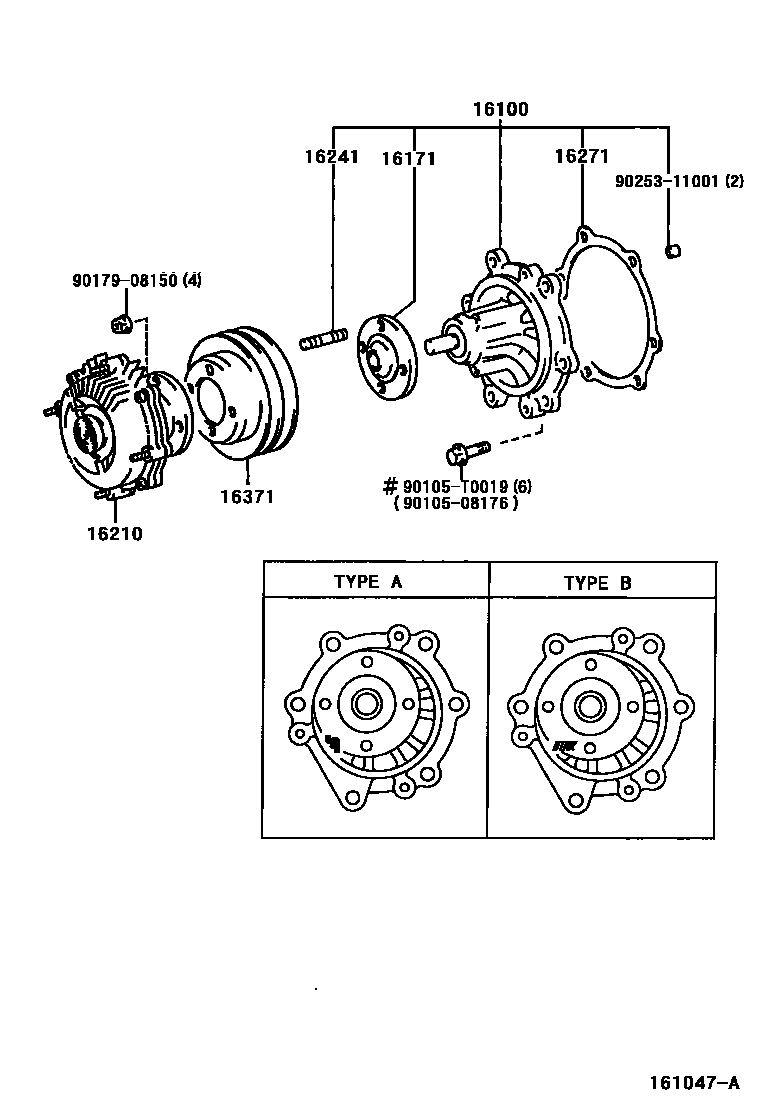

WATER PUMP
16100PUMP ASSY, ENGINE WATER
TYPE A:REFER TO ILLUSTRATION,(L)
TYPE A:REFER TO ILLUSTRATION,(L)
TYPE A:REFER TO ILLUSTRATION,(L)
TYPE B:REFER TO ILLUSTRATION,(L)
TYPE B:REFER TO ILLUSTRATION,(L)
TYPE B:REFER TO ILLUSTRATION,(L)
(J)
16171SEAT, WATER PUMP PULLEY
16210COUPLING ASSY, FLUID
(L)
16241BOLT, STUD(FOR WATER PUMP COUPLING)
16271GASKET, WATER PUMP
(L)
(J)
16371PULLEY, FAN
(L)
(J)
9010508176
main90105-08176
90105T0019
main90105-T0019
9017908150
main90179-08150
9025311001
main90253-11001
10 parts on this diagram · 2 diagrams in section
