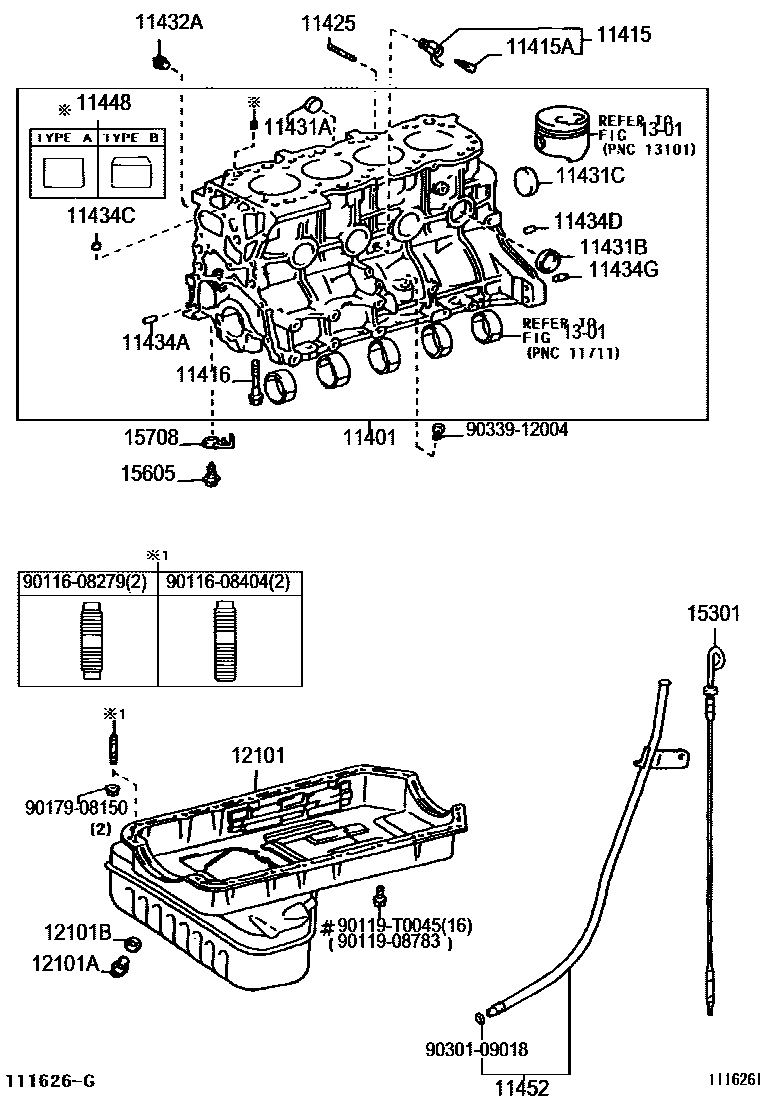

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
(L)
W(EGR)
(J)
W(EGR)
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11425BOLT, STUD(FOR OIL FILTER)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
11432APLUG, W/HEAD TAPER SCREW, NO.1
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=8,OD=11
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=7,OD=14.5
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=14,OD=6
L=8,OD=11
11434GPIN, STRAIGHT(FOR END PLATE)
11448ORIFICE, CYLINDER BLOCK OIL
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
11452GUIDE, OIL LEVEL GAGE
12101PAN SUB-ASSY, OIL
(L)
(J)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
1301CRANKSHAFT & PISTON
15301GAGE SUB-ASSY, OIL LEVEL
(L)
(J)
15605VALVE SUB-ASSY, OIL CHECK
15708NOZZLE SUB-ASSY, OIL, NO.1
9011608279
main90116-08279
9011608404
main90116-08404
9011908783
main90119-08783
90119T0045
main90119-T0045
9017908150
main90179-08150
9030109018
main90301-09018
9033912004
main90339-12004
29 parts on this diagram · 2 diagrams in section
