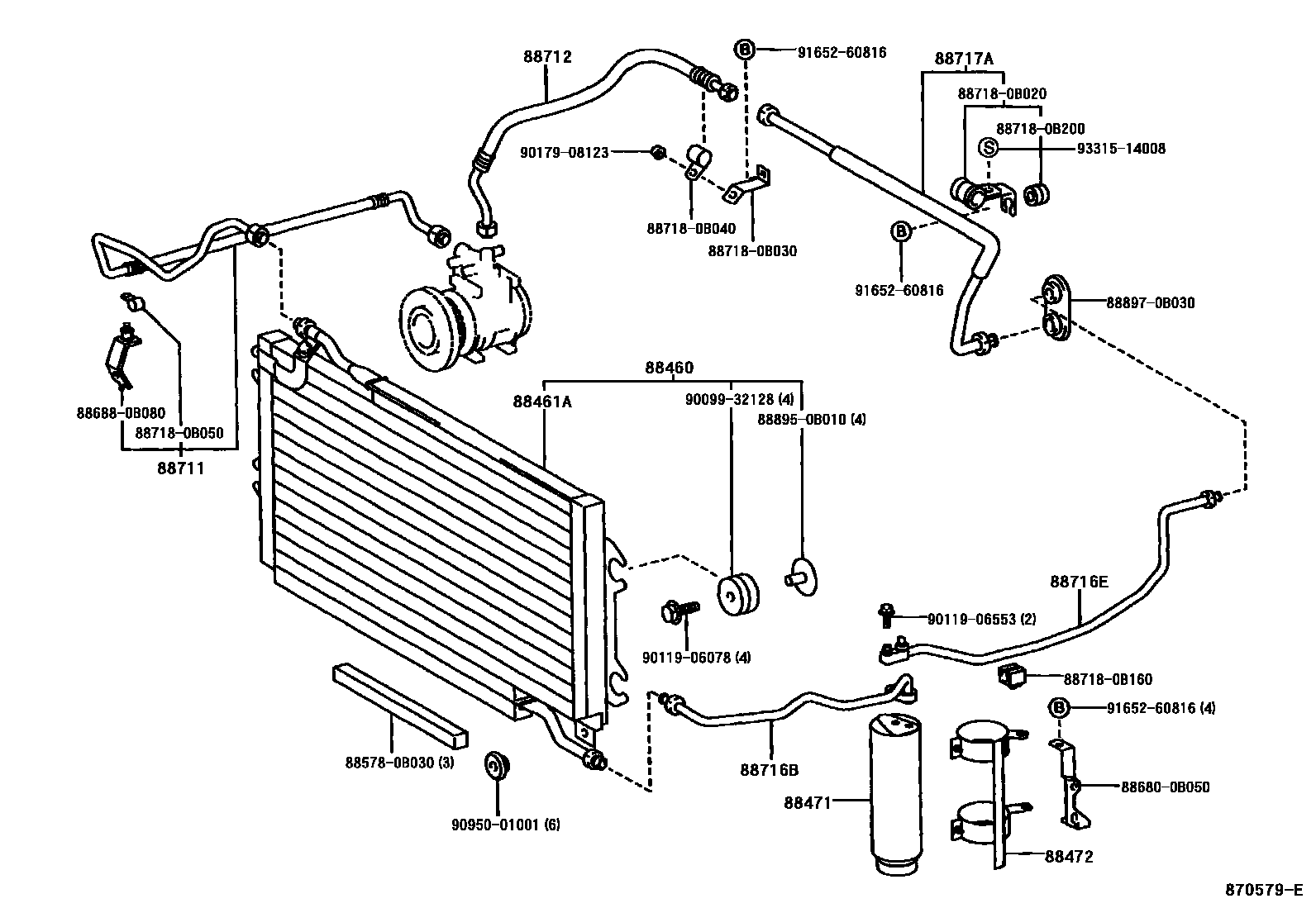

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT,SINGLE AIR CONDITIONER 0002 1FRONT,SINGLE AIR CONDITIONER 0004 1FRONT,DUAL AIR CONDITIONER 0006 1FRONT,SINGLE AIR CONDITIONER 0008 1FRONT,DUAL AIR CONDITIONER 0010 1FRONT,SINGLE AIR CONDITIONER 0011 1FRONT,SINGLE AIR CONDITIONER 0013 1FRONT,SINGLE AIR CONDITIONER 0016 1FRONT,DUAL AIR CONNDITIONER 0018 1FRONT,SINGLE(FOR MALAYSIA) 0019 1DUAL(FOR MALAYSIA) 0020 1DUAL(FOR MALAYSIA) 0021 1FRONT,SINGLE AIR CONDITIONER 0023 1DUAL AIR CONDITIONER 0024 1DUAL AIR CONDITIONER 0025 1DUAL AIR CONDITIONER 0026 1DUAL AIR CONDITIONER 0028 1DUAL AIR CONDITIONER 0030 1FRONT,DUAL AIR CONDITIONER 0032 1DUAL AIR CONDITIONER 0034 1DUAL AIR CONDITIONER 0036 1DUAL AIR CONDITIONER 0037 1DUAL AIR CONDITIONER 0038 1DUAL AIR CONDITIONER 0039 1DUAL AIR CONDITIONER 0040 1FRONT,SINGLE AIR CONDITIONER 0041 1FRONT,SINGLE AIR CONDITIONER 0042 1FRONT,SINGLE AIR CONDITIONER 0043 1FRONT,DUAL AIR CONDITIONER 0044 1FRONT,DUAL AIR CONDITIONER 0045 1FRONT,SINGLE AIR CONDITIONER 0046 1FRONT,SINGLE AIR CONDITIONER 0047 1FRONT,DUAL AIR CONDITIONER 0048 1FRONT,DUAL AIR CONDITIONER 0049 1FRONT,SINGLE AIR CONDITIONER 0051 1DUAL AIR CONDITIONER 0053 1DUAL AIR CONDITIONER 0054 1DUAL AIR CONDITIONER 0055 1FRONT,SINGLE AIR CONDITIONER 0056 1FRONT,SINGLE AIR CONDITIONER 0057 1FRONT,SINGLE AIR CONDITIONER 0058 1REAR 0059 1O-RING

88460CONDENSER ASSY, COOLER

main88460-0B020iKF60,70,80..MTM..CBU..GEN199612-200001

main88460-0B021iLF60200208-200405

main88460-0B030iKF70,80..4FC..GEN;LF60,70,80..CBU..GEN199612-200001

main88460-0B031iKF82..4FC..RHD;LF80,82,RZF81..GEN200208-200406

main88460-0B060iKF80..5F..MA199804-200103

main88460-0B061iKF80..5F..MA200212-200503

main88460-0B070iLF80..MA;KF80..4FC..MA199804-200103

main88460-0B071iLF80..MA;KF80..4FC..RHD200103-200212

main88460-0B080iKF80..5F..GLX199810-200102

main88460-0B081iKF80..5F..GLX200102-200211

main88460-0B090iKF80..4FC..PHL199810-200102

main88460-0B091iRZF81..LHD;KF80..4FC..PHL200102-200211

main88460-0B100iKF60,80..TAIW,VN199902-200107

main88460-0B101iKF60,80..TAIW,VN200107-200301

main88460-0B120iRZF84,85..LHD199911-200107

main88460-0B121iKF82..VN200210-200512

main88460-0B130iLF81,85,RZF80,81,85..SA200306-200503

88461ACORE, COOLER CONDENSER

main88460-0B050iKF70,80..4FC..GEN;LF60,70,80..CBU..GEN199612-200001

main88461-0B010iKF60,70,80..MTM..CBU..GEN199612-200001

main88461-0B011iLF60200208-200405

main88461-0B021iKF82..4FC..RHD;LF80,82,RZF81..GEN200208-200406

main88461-0B030iKF80..5F..MA199804-200212

main88461-0B040iKF80..4FC..RHD200212-200503

88471TANK, RECEIVER AIR CONDITIONER

main88471-28100iKF80,LF85..SHRW..5F..LHD200212-200306

main88471-34010iKF82..DLX..VN200302-200601

88472BRACKET, RECEIVER TANK, NO.1

main88472-0B010iKF60,70,80..GEN200208-200612

main88472-0B030iLF60,70,80..CBU..GEN199612-200001

main88472-0B040iKF80,LF80..MA199804-200103

main88472-0B041iKF80,LF80..MA200103-200212

main88472-0B070iKF72,82,LF60,72,80,82,RZF71,81..CBU..GEN200001-200208

main88472-0B090iRZF81..LHD200102-200211

main88472-0B110iKF82..GL..VN200210-200512

main88472-8C001iKF80,LF85..SHRW..5F..LHD200210-200306

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-0B100iKF80..5F..GLX199810-200102

main88703-0B110iKF80..4FC..PHL199810-200102

main88711-0B030iKF60,70,80..MTM..CBU..GEN199612-200001

main88711-0B040iLF70,80..CBU..GEN199612-200001

main88711-0B070iLF60199612-200001

main88711-0B100iRZF71,81..RHD200010-200208

main88711-0B120iKF82..5F..GL..PHL200211-200501

main88711-0B130iKF82..4FC..LHD200211-200501

main88711-0B140iRZF82200211-200501

main88711-0B150iLF80..MA200103-200212

main88711-0B160iKF80..5F..MA200212-200503

main88711-0B170iKF80..4FC..RHD200103-200212

main88711-8C000iKF60,80..TAIW199902-199903

main88711-8C002iKF60,80..TAIW200210-200301

main88711-8C003iRZF84,85..LHD200210-200612

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-0B030iKF82..GL..PHL200211-200501

main88712-0B010iKF60,70,80..(DLX,STD)..CBU..GEN; KF70,80..GL..GEN199612-200001

SINGLE TYPE

main88712-0B020iKF70,80..DLX..CBU..GEN199612-200001

DUAL TYPE

main88712-0B030iLF80..GL..GEN199801-200001

main88712-0B080iLF80..MA199804-200212

main88712-0B090iKF80..MA199804-200212

main88712-0B140iRZF81..GEN200208-200405

main88712-0B160iRZF82200211-200501

main88712-8C000iKF82..GL..VN200302-200512

main88712-8C001iKF82..DLX..VN;KF60,80..(DLX,STD)..TAIW200210

main88712-8C002iRZF84,85..LHD200210-200612

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-0B120iKF60,70,80..MTM..CBU..GEN199612-200001

main88716-0B160iLF70,80..CBU..GEN199612-200001

main88716-0B240iLF60199612-200001

main88716-0B250iKF70,80..4FC..GEN199612-200001

main88716-0B370iLF80..MA;KF80..4FC..MA199804-200103

main88716-0B371iLF80..MA;KF80..4FC..RHD200103-200212

main88716-0B400iKF80..5F..MA199804-200103

main88716-0B401iKF80..5F..MA200103-200212

main88716-0B460iKF80..5F..GLX199810-200102

main88716-0B461iKF80..5F..GLX200102-200211

main88716-0B470iKF80..4FC..PHL199810-200102

main88716-0B471iKF80..4FC..PHL200102-200211

main88716-0B510iKF60,80..TAIW,VN199902-200107

main88716-0B511iKF80..VN200210-200302

main88716-0B660iRZF84,85..LHD199911-200107

main88716-0B661iRZF84,85..LHD200107-200210

main88716-0B830iRZF71,81..RHD200010-200208

main88726-0B030iRZF81..LHD200102-200211

main88726-0B180iKF80..5F..MA200212-200503

main88726-0B190iKF80..4FC..RHD200212-200503

main88726-0B220iRZF82200211-200501

main88726-0B250iKF82..DLX..VN;KF60,80..(DLX,STD)..TAIW200210

main88726-0B260iKF80..SHRV..(DLX,GL)200210

DUAL AIR CONDITIONER

main88726-0B270iRZF84,85..LHD200210-200612

main88726-0B290iLF81,85..RHD200306-200503

main88726-0B300iRZF80,81,85..SA..RHD200306-200503

main88726-0B310iLF81,85..LHD200306-200503

main88726-0B320iRZF81..LHD200306-200503

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-0B150iKF70,80..(DLX,GL)..CBU..GEN199612-200001

main88716-0B151iKF72,82..GL200001-200208

main88716-0B170iLF60,70,80..(DLX,STD)..CBU..RHD199612-200001

SINGLE TYPE

main88716-0B171iLF60,72,80,82..(DLX,STD)..CBU..RHD200001-200208

main88716-0B190iLF70,80..5F..CBU..GEN199612-200001

main88716-0B191iLF82..GL200001-200208

main88716-0B280iKF60,70,80..GEN200001-200208

main88716-0B320iKF80..DLX..MA199804-200103

main88716-0B330iKF80..GL..MA199804-200103

main88716-0B331iKF80..MA200103-200212

main88716-0B380iLF80..MA199804-200103

main88716-0B381iLF80..MA200103-200212

main88716-0B480iKF82..GL..PHL200211-200501

main88716-0B520iKF80..DLX..VN200210-200302

main88716-0B700iKF72,82..DLX..CBU200001-200208

main88726-0B140iKF72,82..DLX..RHD200208-200405

main88726-0B160iLF82..DLX..RHD200208-200405

main88726-0B200iKF80..MA200212-200503

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-0B020iKF60,70,80..(DLX,STD)..CBU..GEN199612-200001

SINGLE TYPE

main88717-0B030iKF70,80..DLX..CBU..GEN199612-200001

DUAL TYPE

main88717-0B031iKF70,80..GL199612-199703

main88717-0B032iKF72,82..GL..RHD200208-200406

main88717-0B071iLF70,80..5F..CBU..GEN199612-200001

DUAL TYPE

main88717-0B072iLF82..GL..RHD200208-200406

main88717-0B090iLF60,70,80..(DLX,STD)..CBU..RHD199612-200001

SINGLE TYPE

main88717-0B140iKF80..GL..MA199804-200103

main88717-0B150iLF80..MA199804-200103

main88717-0B160iKF80..DLX..MA199804-200103

main88717-0B210iLF70,80..5F..CBU..GEN199612-200001

main88717-0B230iKF80..GLX199810-200211

main88717-0B240iKF80..SHRW..TAIW200210-200612

main88717-0B320iRZF84,85..LHD200210-200612

main88717-0B420iRZF81..GEN200208-200406

main88717-0B430iRZF81..LHD200102-200211

main88717-0B460iKF80..MA200103-200212

main88717-0B470iLF80..MA200103-200212

885780B030PAKING, COOLER AIR DUCT

main88578-0B030

886800B050SWITCH ASSY, VACUUM

main88680-0B050

886880B080BRACKET, COOLER DIAPHRAGM

main88688-0B080

887180B020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B020

887180B030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B030

887180B040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B040

887180B050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B050

887180B160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B160

887180B200PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B200

888950B010HOLDER, FUSE

main88895-0B010

888970B030VALVE, COOLER MAGNET

main88897-0B030

9009932128

main90099-32128

9011906078

main90119-06078

9011906553

main90119-06553

9017908123

main90179-08123

9095001001

main90950-01001

9165260816

main91652-60816

9331514008

main93315-14008

27 parts on this diagram · 43 diagrams in section
