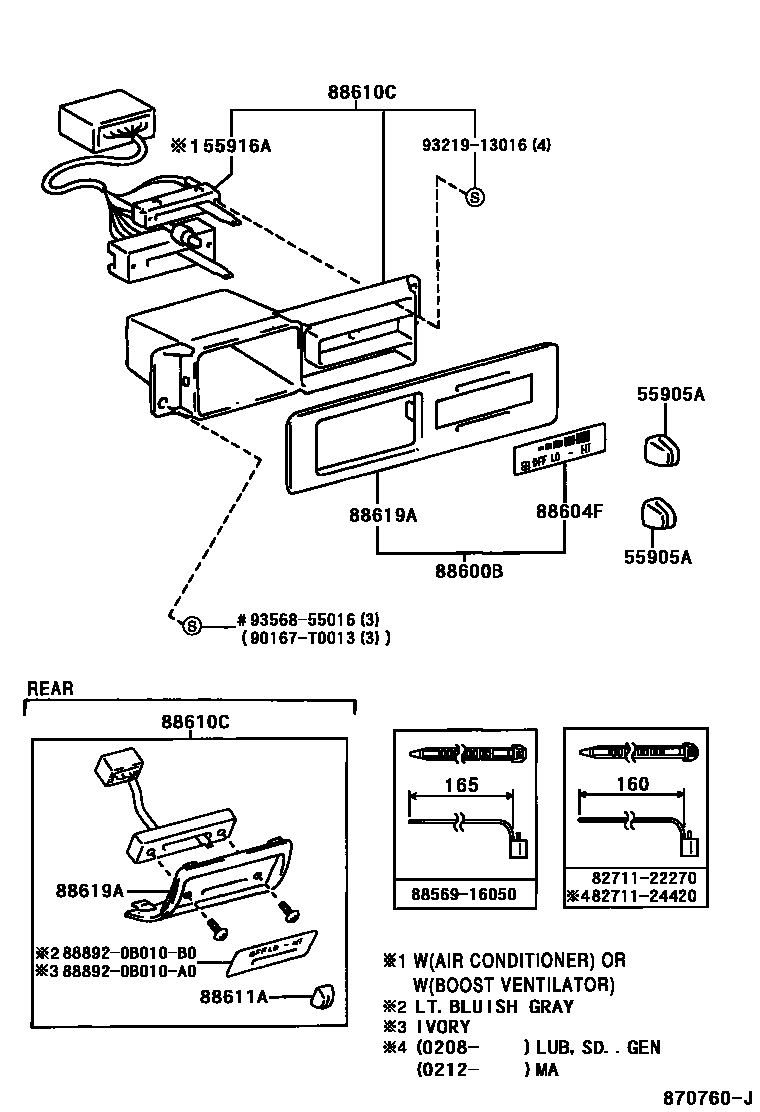

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1CONTROL PANEL 0005 1CONTROL PANEL 0006 1DUCT 0008 1DUCT 0009 1DUCT 0011 1DUCT

55905AKNOB, HEATER CONTROL

main55905-38010×2iLF82..DLX..RHD;KF72,8#,LF80..GEN200209-200503

main55905-89115iLF60;KF60..SD200208-200209

W(BOOST VENTILATOR)

55916ALEVER, COOLER CONTROL

main88613-0B010iKF60,70,80,LF60,70,80..CBU..RHD199612-200001

main88613-0B020iLF60;KF60..SD200005-200208

W(BOOST VENTILATOR)

88600BPANEL ASSY, CONTROL

main88600-0B010iLF60,80..GEN;KF60,7#,8#,LF82,RZF81..(LUB,SD)..(GEN,MA)200208-200612

main88600-0B030iLF82,RZF81..GL200208-200209

W(DUAL AIR CONDITIONER)

88604FPANEL SUB-ASSY, COOLER CONTROL

main88604-0B010iKF80,LF60,80..(4FC,5F)..RHD;KF60,7#,82,LF7#,82,RZF71,81..RHD199612-200209

88610CSWITCH ASSY, COOLER CONTROL

main88610-0B010iKF80,LF80..MA199804-200103

FRONT

main88610-0B020-A0iKF72,8#,LF82,RZF81..GL..RHD200208-200503

IVORY,TRIM4#

main88610-0B020-B0iKF72,82,LF82..DLX..RHD200208-200405

LT.BLUISH GRAY,TRIM1#

main88610-0B030iKF60,LF60..RHD199804-200001

W(BOOST VENTILATOR),FRONT

main88610-0B040iKF70,80,LF70,80..IV7;KF60,70,80,LF60,80..STD..RHD199612-200001

FRONT

main88610-0B070-A0iKF82,RZF82..GL..PHL200211-200501

IVORY,TRIM4#

main88610-0B070-B0iKF80,RZF81..GLX199810-200211

LT.BLUISH GRAY,TRIM1#

main88610-0B080-A0iKF80,RZF84,85..GL..TAIW200210-200707

IVORY,TRIM4#

main88610-0B080-B0iKF80..GL..VN;KF80,RZF84,85..(DLX,GL)..TAIW200011-200302

LT. BLUISH GRAY,TRIM1#

main88610-0B100iKF72,8#,LF80,82,RZF81..GEN200208-200406

W(AIR CONDITIONER)

main88610-0B110iLF60;KF60..SD200005-200208

W(BOOST VENTILATOR),FRONT

88611AKNOB, COOLER CONTROL SWITCH

main88611-0B010-A0iKF72,8#,LF82,RZF81..GL..RHD200208-200503

IVORY,TRIM4#

main88611-0B010-B0iKF80..GL..MA;LF80..(DLX,GL)..CBU..RHD;KF7#,8#,LF7#,82,RZF71,81..(DLX,GL)..CBU..GEN199612-200208

LT.BLUISH GRAY,TRIM1#

main88611-0B030-A0iKF80,RZF84,85..GL..TAIW200210-200707

IVORY,TRIM4#

main88611-0B030-B0iKF80..GL..VN;KF80,RZF84,85..(DLX,GL)..TAIW200011-200302

LT. BLUISH GRAY,TRIM1#

main88611-0B040-A0iKF82,RZF82..GL..PHL200211-200501

IVORY,TRIM4#

main88611-0B040-B0iKF80,RZF81..GLX199810-200211

LT. BLUISH GRAY,TRIM1#

88619APANEL, CONTROL

main88619-0B010iKF80,LF80..MA200208-200212

FRONT

main88619-0B020-A0iKF72,8#,LF82,RZF81..GL..RHD200208-200503

IVORY,TRIM4#,REAR

main88619-0B020-B0iKF80..GL..MA;LF80..(DLX,GL)..CBU..RHD;KF7#,8#,LF7#,82,RZF71,81..(DLX,GL)..CBU..GEN199612-200208

LT.BLUISH GRAY,TRIM1#

main88619-0B040-A0iKF80,RZF84,85..GL..TAIW200210-200707

IVORY,TRIM4#

main88619-0B040-B0iKF80..GL..VN;KF80,RZF84,85..(DLX,GL)..TAIW200011-200302

LT. BLUISH GRAY,TRIM1#

main88619-0B050-A0iKF82,RZF82..GL..PHL200211-200501

IVORY,TRIM4#

main88619-0B050-B0iKF80,RZF81..GLX200102-200211

LT. BLUISH GRAY,TRIM1#

main88619-0B050-B1iKF80..GLX199810-200102

LT. BLUISH GRAY,TRIM1#

main88619-0B070iLF82..GL; RZF71,81..RHD200010-200208

LUXURY

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

8856916050CLAMP (FOR COOLER RELAY)

main88569-16050

888920B010A0BRACKET, COOLER EVAPORATOR MOUNTING

main88892-0B010A0

888920B010B0BRACKET, COOLER EVAPORATOR MOUNTING

main88892-0B010B0

90167T0013

main90167-T0013

9321913016

main93219-13016

9356855016

main93568-55016

15 parts on this diagram · 8 diagrams in section
