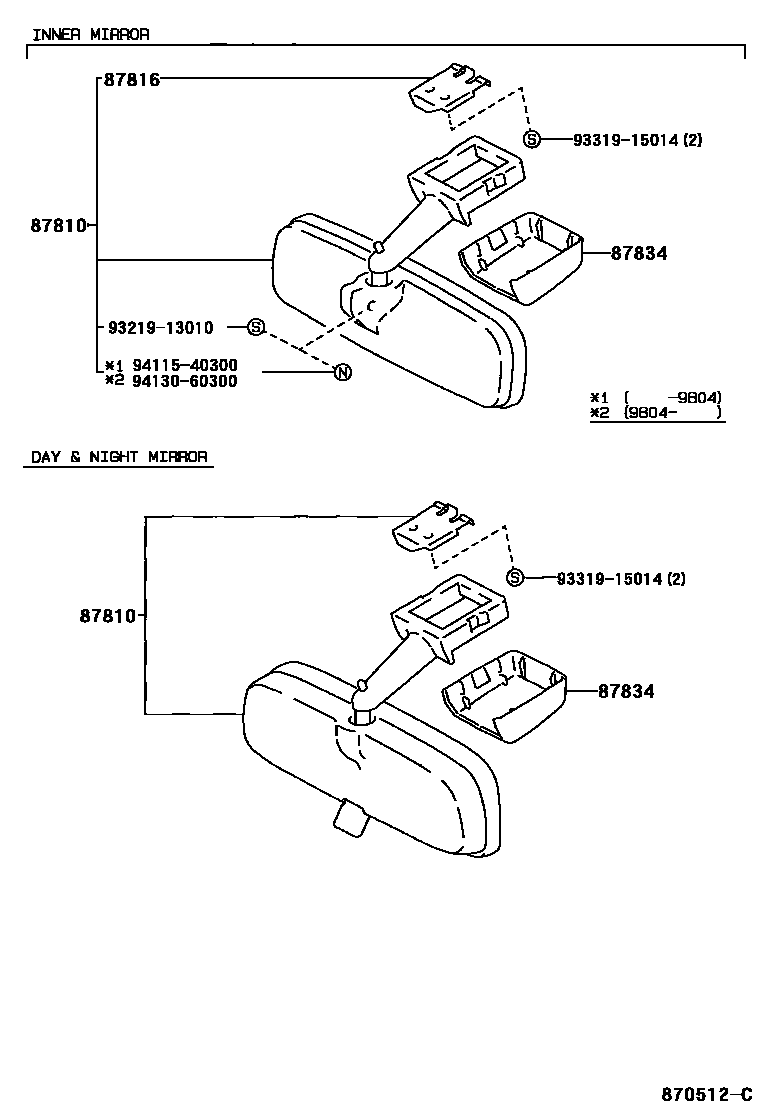

MIRROR

0001 1 0002 1 0003 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-0B020-A0iKF80..MA200212-200503

W(DAY & NIGHT MIRROR),IVORY,TRIM4#

main87810-0B020-B0iKF80,LF80..MA199804-200212

W(DAY & NIGHT MIRROR),BLUISH GRAY,TRIM1#

main87810-0B040-A0iKF72,82,LF82,RZF81..GL..RHD200208-200406

IVORY,TRIM4#

main87810-0B040-B0iLF60;KF60,7#,8#,LF80,82..(LUB,SD)..(DLX,STD)..RHD200208-200612

BLUISH GRAY,TRIM1#

main87810-12221-A0iLF85,RZF80,85..GL..RHD; LF85..LHD200306-200503

IVORY,TRIM4#; W(DAY & NIGHT MIRROR),IVORY,TRIM4#

main87810-12221-B1iLF85..LHD200104-200306

GRAY,TRIM1#

main87810-90P01-B1iKF60,70,80,LF60,70,80..GEN199612-200001

BLUISH GRAY,TRIM1#

main87810-90P50-B0iKF80,LF80..DLX..PHL199810-200211

BLUISH GRAY,TRIM1#

main87810-90P51-A0iKF80..GL..TAIW;KF82,LF82,RZF82,84,85..GL..(PHL,TAIW)200210-200707

W(DAY & NIGHT MIRROR),IVORY,TRIM4#

main87810-90P51-B0iKF82,LF82..DLX..PHL;KF60,80,RZF84,85..TAIW200210-200707

W(DAY & NIGHT MIRROR),BLUISH GRAY,TRIM1#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iLF60;KF60,7#,8#,LF80,82,RZF81..(LUB,SD)..GEN200208-200612

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-0B030-A0iKF72,82,LF82,RZF81..GL..RHD200208-200406

IVORY,TRIM4#

main87834-0B030-B0iKF60..FD200208-200406

LT. BLUISH GRAY,TRIM1#

main87834-20080-A2iKF80,LF85,RZF80,85..GL..(MA,SA)200212-200503

IVORY,TRIM4#

main87834-20080-B3iKF60,70,80,LF60,80..4F;KF70,80,LF80..(DLX,GL)..RHD;LF61,70,81,85,RZF80,85,YF60,80..GEN,SA199612-200212

LT.BLUISH GRAY,TRIM1#

main87834-90P50-A0iKF80..GL..TAIW;KF82,LF82,RZF82,84,85..GL..(PHL,TAIW)200210-200707

IVORY,TRIM4#

main87834-90P50-B0iKF60,80,LF80,RZF81,84,85..LHD199810-200302

LT.BLUISH GRAY,TRIM1#

9321913010

main93219-13010

9331915014

main93319-15014

9411540300

main94115-40300

9413060300

main94130-60300

7 parts on this diagram · 3 diagrams in section
