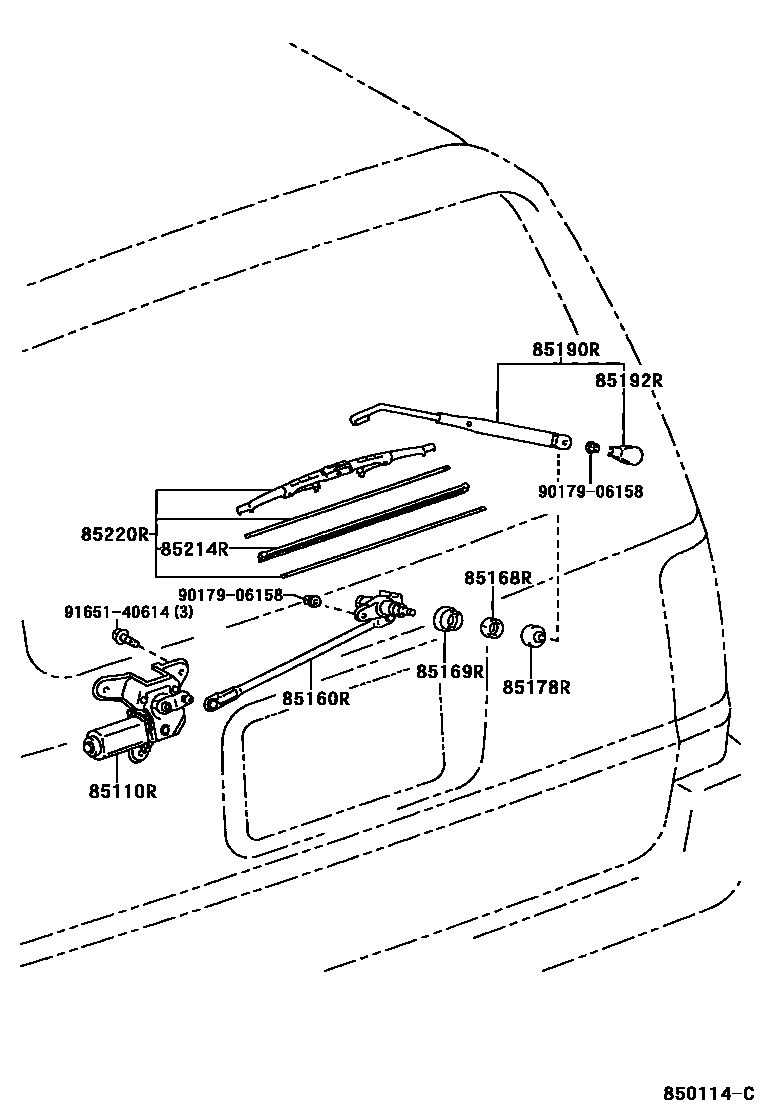

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0B010iKF80,LF80..MA199804-200103

main85130-0B030iKF80..MA200212-200503

main85130-38020iKF80,LF81,85,RZF80,85,YF80..SHRW..5F200210-200306

main85130-38030iKF80,LF80,RZF81..GLX200210-200211

85160RLINK ASSY, REAR WIPER

main85170-38020iKF80,RZF84,85..(DLX,GL)..(TAIW,VN)200103-200210

main85170-38030iKF80,LF80..MA;KF80,LF80..GLX;KF72,82,LF82,RZF71,81..GL,GLX200103-200210

main85170-38040iLF81,85,RZF80,81,85..SA200306-200503

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85168-95700iKF82..GL..RHD;KF80,LF80..GLX;LF81,RZF80,YF80;KF80..DLX..(MA,TAIW,VN);KF7#,LF85,RZF71,81,84,85..GL,GLX;KF80,LF80,82..GL..(GEN,MA,TAIW,VN)199612-200306

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-38020iKF82..GL..RHD;KF80,LF80..GLX;LF81,RZF80,YF80;KF80..DLX..(MA,TAIW,VN);KF7#,LF85,RZF71,81,84,85..GL,GLX;KF80,LF80,82..GL..(GEN,MA,TAIW,VN)199612-200306

85178RNUT (FOR REAR WIPER ARM SETTING)

main85178-95J00iKF82..DLX..VN;KF80..(DLX,GL)..TAIW;KF72,82,LF82,RZF81,82,84,85..GL..(GEN,PHL,TAIW,VN)200208-200405

85190RARM ASSY, REAR WIPER

main85241-0B020iKF80,LF80,RZF84,85..(DLX,GL)..(MA,TAIW,VN)200102-200103

main85241-0B030iKF80,LF80..MA;KF80,LF80,RZF81..GLX200210-200212

main85241-0B040iLF81,85,RZF80,81,85..SA200306-200503

main85241-38020iKF80..DLX..MA;KF70,80,LF80..GL199612-199808

85192RCOVER, REAR WIPER ARM

main85192-10440iKF82..DLX..VN;KF80..(DLX,GL)..TAIW;KF72,82,LF82,RZF81,82,84,85..GL..(GEN,PHL,TAIW,VN)200208-200405

main85244-0B010iLF81,85,RZF80,81,85..SA200306-200503

85214RRUBBER, REAR WIPER

main85214-0B050iLF81,85,RZF80,81,85..SA200306-200503

main85214-10100iKF80..MA200208-200503

main85214-44050iKF80,LF80..GLX;KF80..DLX..(MA,TAIW,VN);KF70,80,LF80,RZF84,85..GL..(GEN,MA,TAIW,VN)199612-200102

85220RBLADE ASSY, REAR WIPER

main85242-0B020iKF80,LF80,RZF84,85..(DLX,GL)..(MA,TAIW,VN)200102-200103

main85242-0B030iKF80,LF80..GLX;KF72,82,LF82,RZF71,81..GL,GLX200102-200103

main85242-0B040iLF81,85,RZF80,81,85..SA200306-200503

main85242-38010iKF80..DLX..MA;KF70,80,LF80..GL199612-199808

9017906158

main90179-06158

9165140614

main91651-40614

11 parts on this diagram · 1 diagram in section
