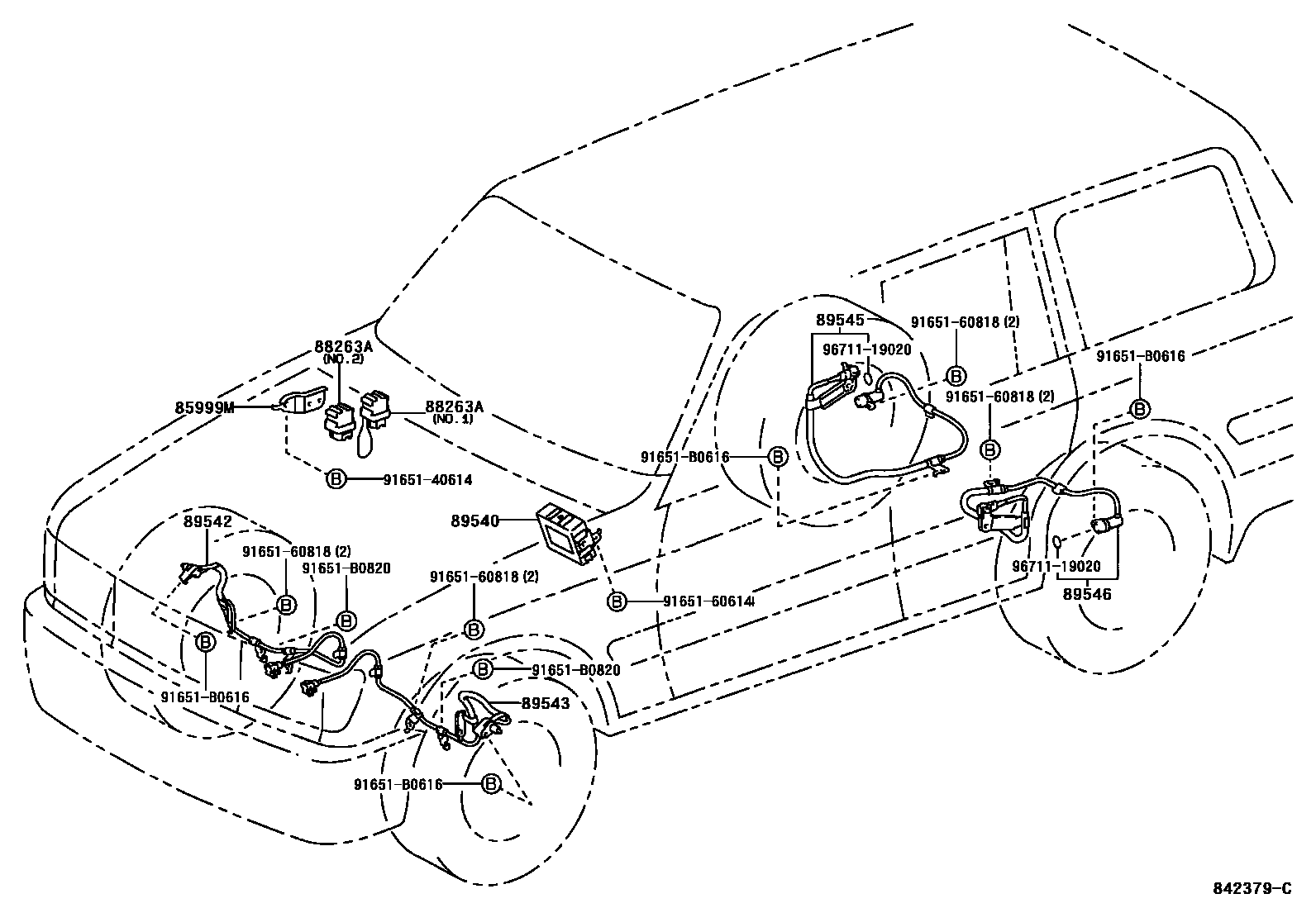

ABS & VSC

0001 1 0003 1

85999MBRACKET, RELAY

main85999-38010iKF80,RZF85..(DLX,GL)..TAIW199903-200210

88263ARELAY, SKID CONTROL

main88263-12110iRZF85..LHD;KF80..SHRW..TAIW200210-200612

NO.1

main88263-35070iKF80..SHRV..(DLX,GL)200210

NO.2

89540COMPUTER ASSY, SKID CONTROL

main89540-38010iKF80..DLX..TAIW;KF80,LF80..(GL,GLX)..LHD199810-199903

main89540-38020iRZF85..LHD200210-200612

89542SENSOR, SPEED, FRONT RH

main89542-38010iKF80..DLX..TAIW;KF80,LF80..(GL,GLX)..LHD199810-199903

main89542-38020iRZF85..LHD199911-200210

89543SENSOR, SPEED, FRONT LH

main89543-38010iKF80..(DLX,GL)..TAIW199903-200210

main89543-38020iRZF85..LHD199911-200210

89545SENSOR, SPEED, REAR RH

main89545-38010iKF80..SHRW..TAIW200210-200612

main89545-38020iRZF85..LHD200210-200612

89546SENSOR, SPEED, REAR LH

main89546-38010iKF80..DLX..TAIW;KF80,LF80..(GL,GLX)..LHD199810-199903

main89546-38020iRZF85..LHD199911-200210

9165140614

main91651-40614

9165160614

main91651-60614

9165160818

main91651-60818

91651B0616

main91651-B0616

91651B0820

main91651-B0820

9671119020

main96711-19020

13 parts on this diagram · 2 diagrams in section
