METER

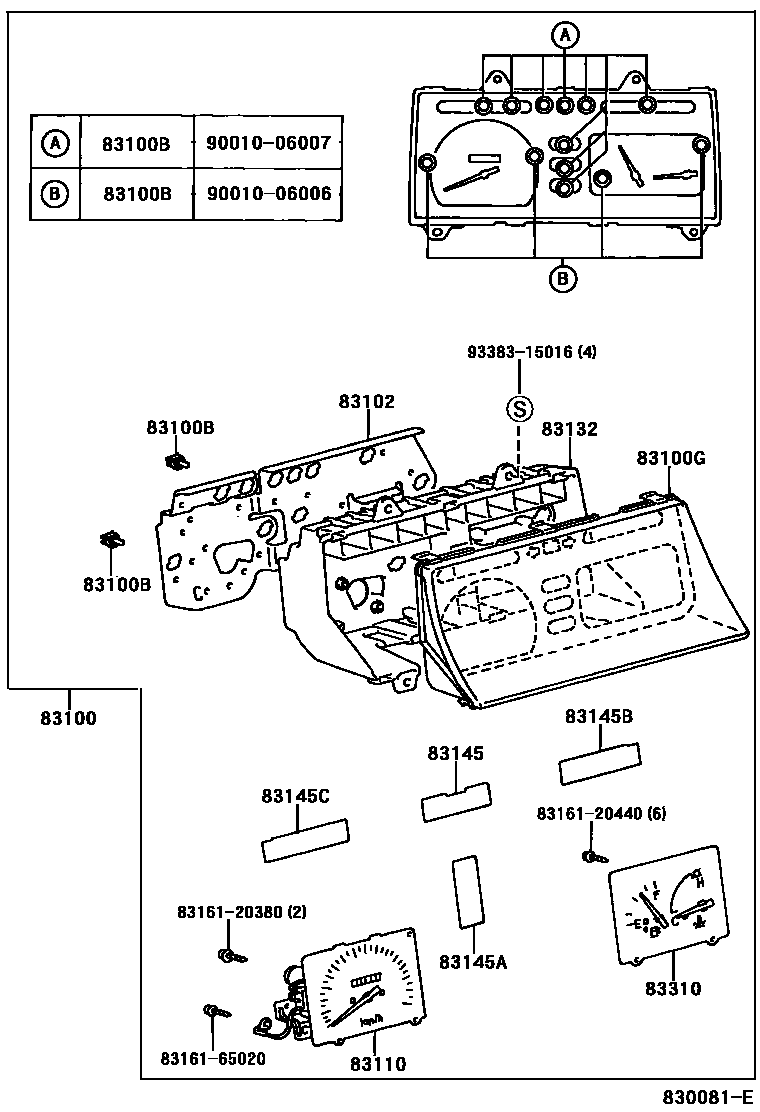

83100METER ASSY, COMBINATION
LUXURY
83100BBULB, COMBINATION METER, NO.1
12V 3.4W
12V3.4W,W(GREEN CAP)
12V 1.4W,W(SOCKET)
main90010-06003iKF72,82,LF72,82,RZF71,81..RHD; KF72,82,LF72,82,RZF84,85..GEN,TAIW;KF80,LF80,RZF81..(GL,GLX)..(PHL,TAIW); KF80,LF80,RZF81,84,85..(GL,GLX)..(MA,PHL,TAIW)200103-200208
14V 3.0W,W(SOCKET),REFER TO ILLUSTRATION; 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION; 14V 3.0W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION
12V3.4W,W(GREEN CAP)
12V 3.4W,W(SOCKET),TYPE A:REFER ILLUST.
83100GGLASS, COMBINATION METER
main83821-0B060iKF82..(DLX,GL)..LHD;KF80,LF81,82,85,RZF80,81,82,85..(DLX,GL)..(MA,PHL,SA)200211-200601
W(BLUE METER)
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83110SPEEDOMETER ASSY
W(BLUE METER)
LUXURY
83132CASE, COMBINATION METER
main83841-0B530iKF82..(DLX,GL)..LHD;KF80,LF81,82,85,RZF80,81,82,85..(DLX,GL)..(MA,PHL,SA)200211-200601
83145LENS, METER, NO.1
main83831-0B030iKF80..SHRV..GL;KF80..(SHRW,SRF)..(DLX,GL)..(GEN,TAIW);KF7#,82,LF7#,80,82,RZF71,81,84..(DLX,GL)..(GEN,TAIW)199612-200210
83145ALENS, METER, NO.2
83145BLENS, METER, NO.3
main83833-0B060iKF82..5F..(DLX,GL)..LHD;KF80,LF82,RZF80,81,82,85..5F..(DLX,GL)..(MA,PHL,SA)200211-200601
83145CLENS, METER, NO.4
83310GAGE ASSY, FUEL RECEIVER
8316120380CASE, COMBINATION METER MIRROR, NO.1
main83161-20380
8316120440CASE, COMBINATION METER MIRROR, NO.1
main83161-20440
8316165020CASE, COMBINATION METER MIRROR, NO.1
main83161-65020
9338315016
main93383-15016
15 parts on this diagram · 15 diagrams in section
