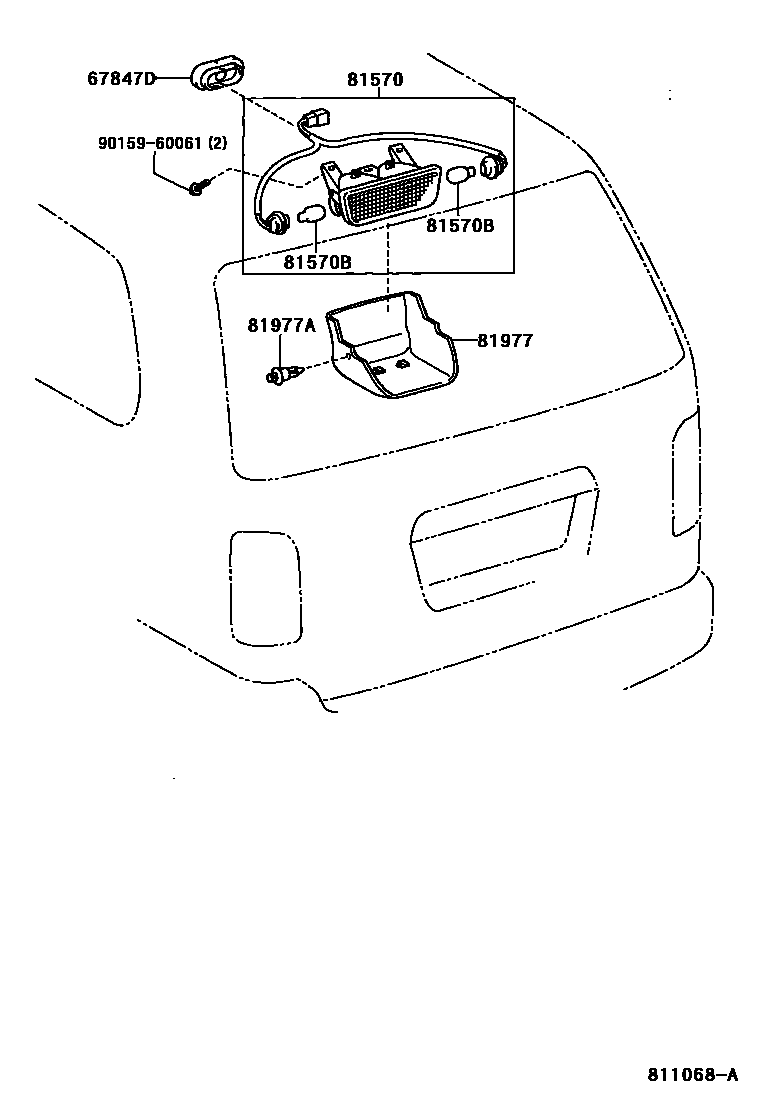

CENTER STOP LAMP

0001 1 0002 1

67847DCOVER, BACK DOOR SERVICE HOLE

main67847-26050iKF80,LF81,85,RZF80,84,85,YF80..SHRV,SHRW200002-200306

81570LAMP ASSY, CENTER STOP

main81570-0B020iKF80..(DLX,STD)..TAIW199902-199908

main81570-0B030iKF80..SHRW..TAIW; RZF84,85..LHD200210-200612

W(PRIVACY GLASS)

main81570-0B040iKF80..(DLX,STD)..TAIW;LF81,85,RZF80,85,YF80..SA199908-200306

main81570-38020iKF80,RZF81..GLX200102-200201

81570BBULB (FOR CENTER STOP LAMP)

main90981-13043×2iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

12V 21W

81977COVER, CENTER STOP LAMP

main81977-0B020-B0iKF80,LF81,85,RZF80,84,85,YF80..SHRV,SHRW199902-200306

GRAY,TRIM1#

main81977-0B020-E0iLF81,RZF80,81..DLX200210-200502

FAWN,TRIM4#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07071-B3×2iKF82..VN200210-200512

GRAY,TRIM1#

main90467-07071-E4×2iLF81,RZF80,81..DLX200210-200502

FAWN,TRIM4#

9015960061

main90159-60061

6 parts on this diagram · 2 diagrams in section
