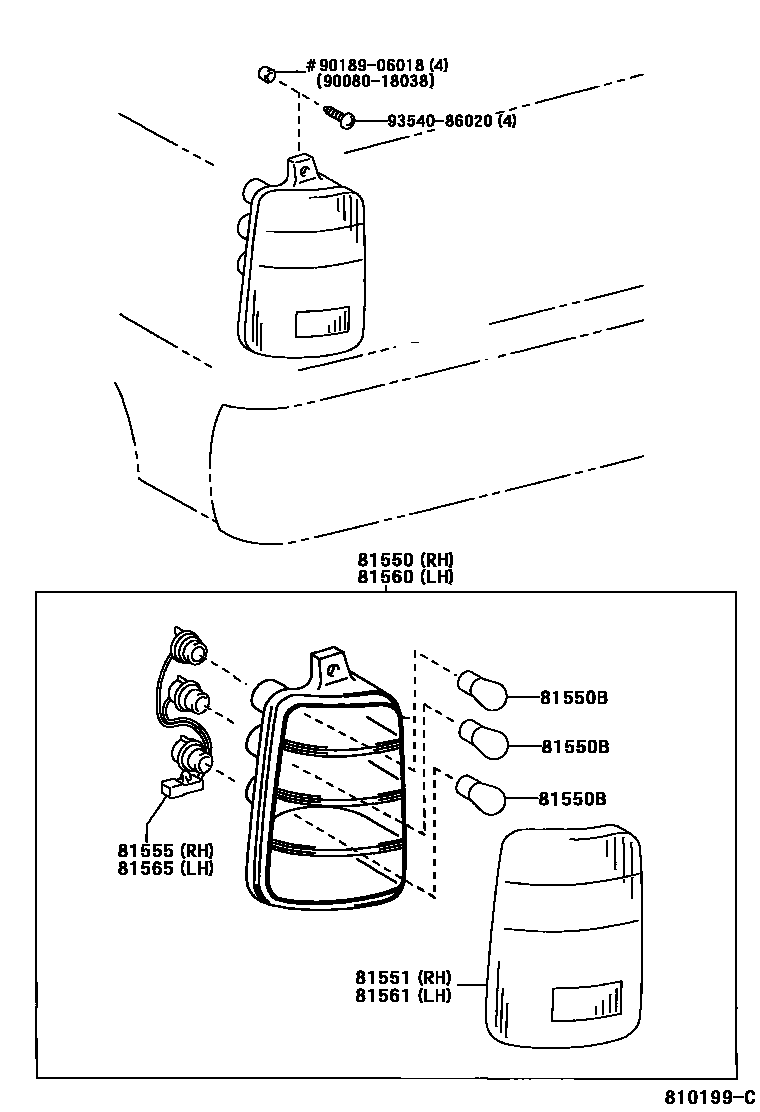

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0B010iKF70,80,LF80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200102

main81550-0B020iKF60..FD200408-200612

main81550-0B040iKF80..TAIW199902-199908

main81550-0B060iKF7#,8#,LF72,80,82,RZF71,81..GEN200001-200102

main81550-0B080iKF82,LF82,RZF82..(DLX,GL)..PHL200208-200411

main81550-0B090iKF80,LF61,81,85,RZF80,85,YF60,80..SA,VN200210-200306

main81550-0B100iKF80..SHRV200210

main81550-90P52iKF60..LHD200210

81550BBULB(FOR REAR COMBINATION LAMP)

main90083-81003×4iKF60..LHD200210

12V 21W

main90083-81005×2iKF60..LHD200210

12V 21/5W

main90981-15009×2iKF80,LF61,81,85,RZF80,85,YF60,80..SA,VN200212-200306

12V 21W,AMBER

main99132-11210×4iKF82,LF82,RZF82..(DLX,GL)..PHL; KF82,LF82..STD200208-200411

12V 21W

main99132-21210×2iKF60..FD200208-200406

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-0B010iKF70,80,LF80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200102

main81551-0B020iKF60,LF60..RHD199612-200001

main81551-8C002iKF80,LF61,81,85,RZF80,85,YF60,80..SA,VN200210-200306

main81551-8C007iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

main81551-90P50iKF60..LHD199902-200210

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0B010iKF70,80,LF80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200102

main81555-8C000iKF80,LF61,81,85,RZF80,85,YF60,80..SA,VN200210-200306

main81555-8C005iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0B010iKF70,80,LF80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200102

main81560-0B020iKF60..FD200208-200406

main81560-0B040iKF80..TAIW199902-199908

main81560-0B060iKF7#,8#,LF72,80,82,RZF71,81..SRF200103-200208

main81560-0B080iKF82,LF82,RZF82..(DLX,GL)..PHL200208-200411

main81560-0B090iKF80,LF61,81,85,RZF80,84,85,YF60,80..SHRV,SHRW199908-200210

main81560-0B100iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

main81560-90P52iKF60..LHD200210

81561LENS, REAR COMBINATION LAMP, LH

main81551-0B020iKF60..FD200408-200612

main81561-0B010iKF80,LF80..MA200102-200103

main81561-8C002iKF80,LF61,81,85,RZF80,85,YF60,80..SA,VN200210-200306

main81561-8C007iKF80..SHRV200210

main81561-90P50iKF60..LHD199902-200210

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0B010iKF80,LF80..MA200102-200103

main81555-8C000iKF80,LF61,81,85,RZF80,84,85,YF60,80..SHRV,SHRW199902-200210

main81555-8C005iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

9008018038

main90080-18038

9018906018

main90189-06018

9354086020

main93540-86020

10 parts on this diagram · 3 diagrams in section
