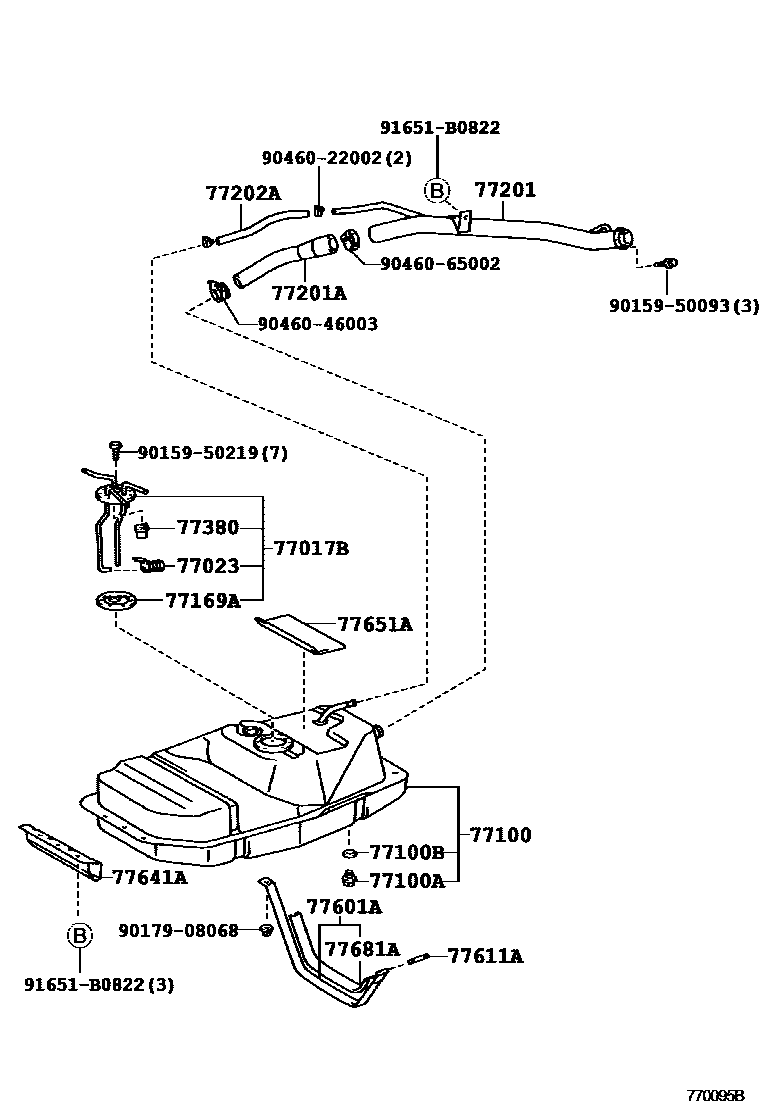

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0005 1 0007 1 0010 1 0011 1 0012 1 0013 1W/O(CHARCOAL CANISTER)&W/O(RE0014 1W/O(CHARCOAL CANISTER)&W(RETU0016 1W(CHARCOAL CANISTER)&W(RETURN0018 1W(CHARCOAL CANISTER)&W(RETURN0019 1W/O(CHARCOAL CANISTER)&W(RETU0020 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1 0027 1

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-38100iKF60..FD199612-200612

main77017-38110iLF60,70,80199612-199704

sub77017-38111

main77017-38111iLF60,80,82..GEN199704-200411

main77017-38120iYF60,80200004-200306

main77017-38130iLF61,81,85200004-200503

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-10010iKF60,70,80,YF60,80..GEN,SA199612-200612

main77023-32040iLF82..LHD199612-200503

77100TANK ASSY, FUEL

main77001-0B010iKF60..SD199612-200612

main77001-0B020iKF80,LF80..MA199804-200503

main77001-0B030iKF80,LF80,RZF81..PHL199810-200411

main77001-0B040iKF82..VN;KF60,80,RZF84,85..TAIW199902-200302

main77001-0B060iLF61,81,85,RZF61,80,81,85..SA200306-200503

77100APLUG(FOR FUEL TANK)

main90105-12116iKF82,LF82,RZF82..PHL199612-200411

77100BGASKET(FOR FUEL TANK)

main90430-12245iKF80..MA,TAIW;KF60,82,RZF84,85..(SCB,SHRV,SHRW)..(LUB,SD,T2)..(GEN,TAIW,VN)199612-200411

77169AGASKET, FUEL SUCTION TUBE SET

main77169-38010iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80199612-200411

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0B010iKF60..SD199612-200612

main77201-0B021iKF60,LF60..FD199612-200612

main77201-0B030iKF82,LF82,RZF82..PHL199612-200411

main77201-0B040iKF7#,LF7#,RZF71199612-200405

main77201-0B050iKF60..LHD199902-200210

main77201-0B060iKF80,RZF84,85..TAIW199902-200210

main77201-0B070iKF80..MA199804-200601

main77201-0B090iRZF61..LHD;LF61,81,85,RZF80,81,85..SA200306-200503

TYPE A:REFER TO ILLUSTRATION

main77201-0B100iRZF61,80,81,85..SA..RHD200306-200503

TYPE B:REFER TO ILLUSTRATION

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77217-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..(LUB,SD)..(GEN,MA,VN)199612-200612

main77217-0B020iKF60,LF60..FD199612-200612

main77217-0B030iKF82,LF82,RZF82..PHL199810-200411

main77217-0B040iKF60..LHD199902-200210

main77217-0B050iKF80,RZF84,85..TAIW199902-200210

main77217-0B070iLF61,81,85,RZF61,80,81,85..SA200306-200503

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95313-13010iLF60..SD199612-200612

L=100

main95313-13034iKF80..MA,TAIW;KF60,82,RZF84,85..(SCB,SHRV,SHRW)..(LUB,SD,T2)..(GEN,TAIW,VN)199612-200411

*H,L=300

main95313-13036iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

L=360

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200503

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0B010iLF60;KF60,7#,8#,LF80,82,RZF81..(FD,LUB)..GEN199612-200612

main77601-0B020iKF82,LF82,RZF82..PHL199810-200411

main77601-0B030iKF82..VN;KF60,80,RZF84,85..TAIW199902-200302

main77601-0B050iLF61,81,85,RZF61,80,81,85..SA200306-200503

77611APIN (FOR FUEL TANK BAND)

main77653-0B010iLF61,81,85,RZF61,80,81,85..SA200306-200503

main77653-25010iLF60;KF60,7#,8#,LF80,82,RZF81..(FD,LUB)..GEN199612-200411

77641APROTECTOR, FUEL TANK, NO.1

main77641-0B010iLF80..DLX,STD;KF60,70,80,LF60,70199612-199804

sub77641-0B011

main77641-0B011iKF60..FD199801-200612

main77641-0B020iKF60,80,RZF84,85..TAIW,VN199902-200302

main77641-0B040iLF61,81,85,RZF61,80,81,85..SA200306-200503

77651ACUSHION, FUEL TANK, NO.1

main77651-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN199612-200612

main77651-38010iKF82,LF82,RZF82..PHL199804-200411

main77651-38020iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

77681ASEAT, FUEL TANK BAND

main77681-0B010iKF60..FD199612-200612

main77681-0B020iKF80,LF80,RZF81..PHL199810-200411

main77681-0B030iKF82..VN;KF60,80,RZF84,85..TAIW200210

main77681-0B050iLF61,81,85,RZF61,80,81,85..SA200306-200503

9015950093

main90159-50093

9015950219

main90159-50219

9017908068

main90179-08068

9046022002

main90460-22002

9046046003

main90460-46003

9046065002

main90460-65002

91651B0822

main91651-B0822

22 parts on this diagram · 21 diagrams in section
