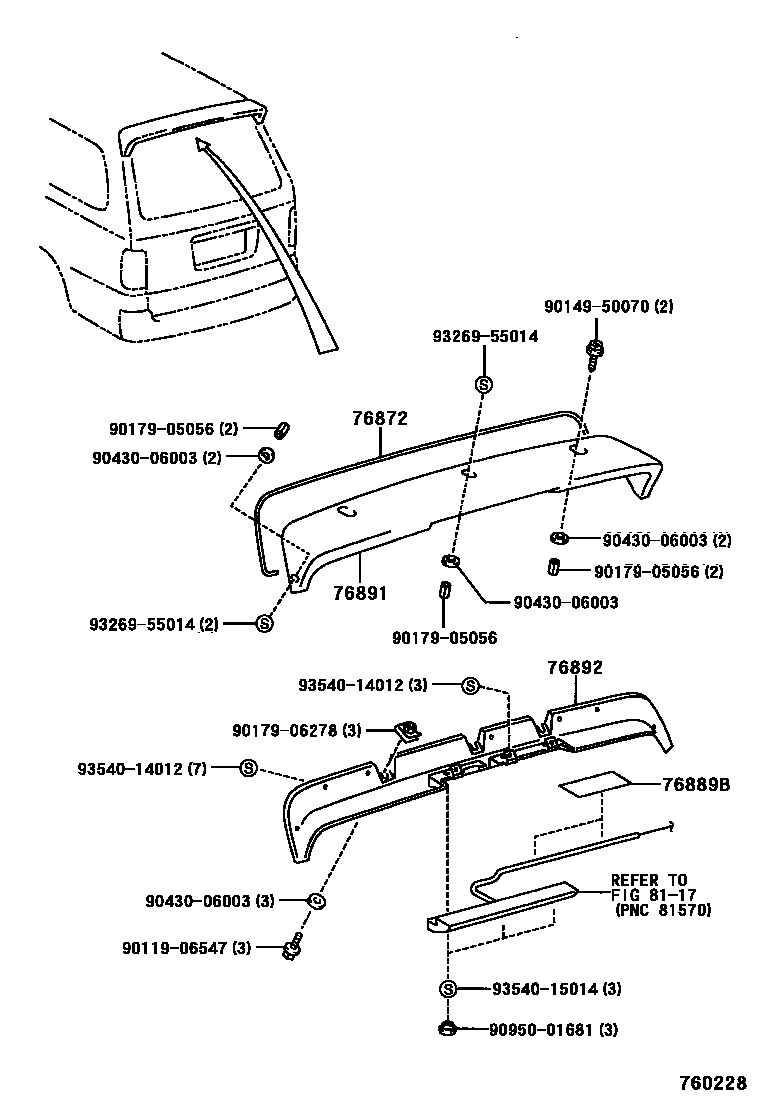

SPOILER & SIDE MUDGUARD

0001 1 0003 1 0006 1 0007 1

76872PROTECTOR, REAR SPOILER, NO.1

main76872-0B010iKF80,LF80,RZF81..GLX200201-200211

76889BSEAL, REAR SPOILER, NO.1

main76889-0B010×2iKF80,LF80,RZF81..GLX200201-200211

76891SPOILER, REAR NO.1

main76891-0B020-A2iKF82,LF82..GL..PHL200211-200411

WHITE,060

main76891-0B020-B1iRZF82200211-200411

SILVER ME.,1C0

main76891-0B020-C0iRZF81..LHD200102-200211

BLACK ME,205

main76891-0B020-C1iKF82,LF82..GL..PHL200211-200411

BLACK MC.,209

main76891-0B020-D1iKF80,LF80..GLX200201-200211

RED MC.,2HM

main76891-0B020-D2iKF82,LF82,RZF82..GL..PHL200211-200411

RED M.M.,2JG ,3P1

main76891-0B020-E1iKF80,RZF81..GLX200102-200203

BROWN ME.,2HN

main76891-0B020-F0iRZF82200211-200411

CHAMPAGNE ME.,583

main76891-0B020-G1iKF80,LF80,RZF81..GLX200201-200211

DK.GREEN MC.,2HP

main76891-0B020-G2iKF82,LF82..GL..PHL; RZF82200211-200411

DARK GREEN MC.,2JH; DARK GREEN MC.,2JH ,6R4

main76891-0B020-J1iKF82,LF82..GL..PHL200211-200411

DK.BLUE MC.,8N8

76892SPOILER, REAR NO.2

main76892-0B020-A2iKF82,LF82..GL..PHL200211-200411

WHITE,060

main76892-0B020-B1iRZF82200211-200411

SILVER ME.,1C0

main76892-0B020-C0iRZF81..LHD200102-200211

BLACK ME,205

main76892-0B020-C1iKF82,LF82..GL..PHL200211-200411

BLACK MC.,209

main76892-0B020-D1iKF80..GLX200102-200201

RED MC.,2HM

main76892-0B020-D2iKF82,LF82,RZF82..GL..PHL200211-200411

RED M.M.,2JG ,3P1

main76892-0B020-E1iKF80,LF80,RZF81..GLX200203-200211

BROWN ME.,2HN

main76892-0B020-F0iRZF82200211-200411

CHAMPAGNE ME.,583

main76892-0B020-G1iKF80,RZF81..GLX200102-200201

DK.GREEN MC.,2HP

main76892-0B020-G2iKF82,LF82..GL..PHL; RZF82200211-200411

DARK GREEN MC.,2JH; DARK GREEN MC.,2JH ,6R4

main76892-0B020-J1iKF80,LF80,RZF81..GLX200201-200211

DK.BLUE MC.,8N8

8117CENTER STOP LAMP

→ Go to FIG 81-17

9011906547

main90119-06547

9014950070

main90149-50070

9017905056

main90179-05056

9017906278

main90179-06278

9043006003

main90430-06003

9095001681

main90950-01681

9326955014

main93269-55014

9354014012

main93540-14012

9354015014

main93540-15014

14 parts on this diagram · 4 diagrams in section
