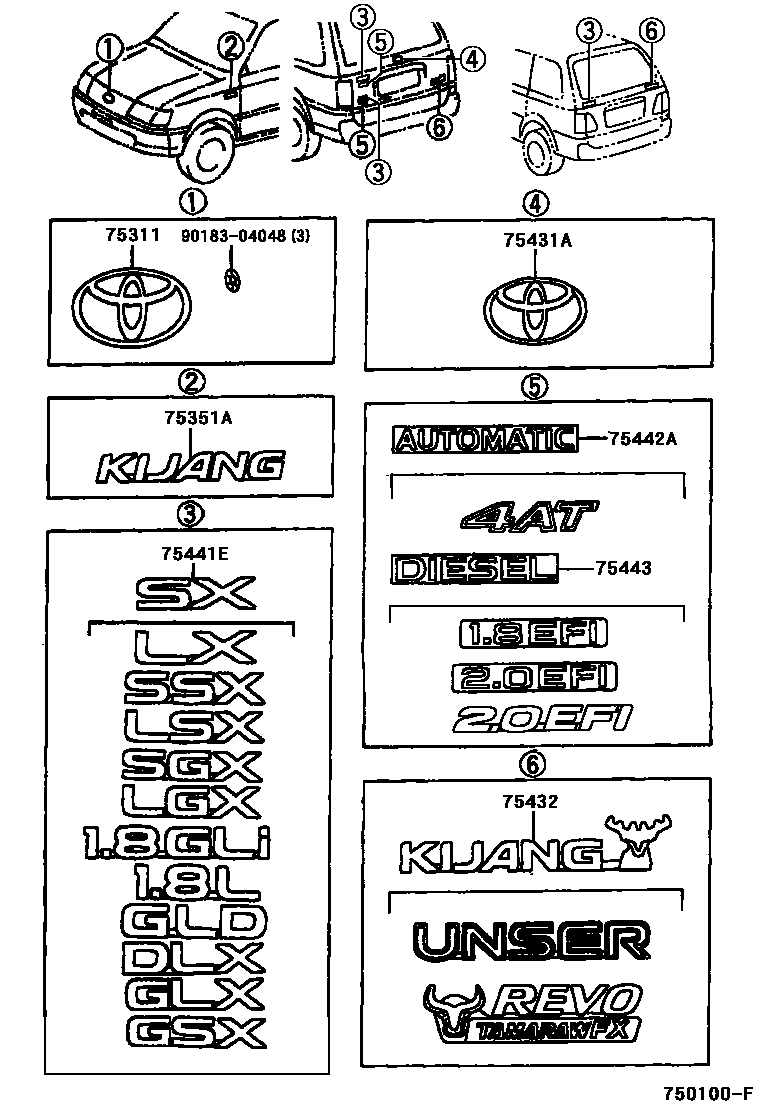

EMBLEM & NAME PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-04050iKF82,LF82..GL..PHL200211-200411

TYPE A:ILLUSTRATION (FIG 53-51)

main75311-0B010iKF80,LF80..MA199804-200103

main75311-0B020iKF80,LF80..PHL199810-200102

main75311-0B030iKF80..VN200210-200302

main75311-0B050iLF60;KF60..SD200208-200612

W=113,H=77.5

main75311-0B070iKF82,LF82..GL..PHL200211-200411

TYPE B:ILLUSTRATION (FIG 53-51)

main75311-26020iKF60,70,80,LF60,70,80..GEN199612-200001

main90975-02011iKF80,LF80..GLX200201-200211

W=130,H=88.8

75351AEMBLEM, FRONT FENDER

main75351-0B010×2iLF60;KF60,7#,8#,LF80,82,RZF81..(LUB,SD)..GEN200208-200612

main75351-0B030×2iKF60..LHD199902-200210

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75431-0B110iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

SURF

main75431-38040iKF80..VN199909-200302

main75431-YG020iRZF61..RHD200306-200503

STALLION

main75431-YG030iRZF61..LHD;LF61,81,85,RZF80,81,85..SA200306-200503

main75431-YG040iLF81,RZF80,81..SA200306-200503

ESTATE,NO.2

75431AEMBLEM, BACK DOOR, NO.1

main75431-0B010iKF80,LF80..MA199804-200103

main75431-0B050iKF80,LF61,81,85,RZF80,84,85,YF60,80..SHRV,SHRW199902-200210

main75431-38030iKF70,80,LF80..4F;KF70,80,LF70,80..(DLX,GL,GLX)..(GEN,PHL)199612-200102

75432EMBLEM, BACK DOOR, NO.2

main75351-0B010iLF82,RZF81..GL..RHD200208-200406

KIJANG,LUXURY

main75431-0B020iKF7#,8#,LF7#,80,82,RZF71,81..CBU..GEN199612-200208

KIJANG

main75431-0B040iKF80..MA200212-200503

UNSER

main75431-38050iKF82,LF82,RZF82..PHL200211-200411

REVO

main75432-0B010iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

ZACE

75441EPLATE, BACK DOOR NAME, NO.1

main75441-0B010iKF70..STD199612-200208

SX

main75441-0B020iKF80,LF80..GEN200208-200406

LX

main75441-0B030iKF72..DLX200208-200406

SSX

main75441-0B040iKF82,LF82..DLX..RHD200208-200406

LSX

main75441-0B050iKF72..GL200208-200406

SGX

main75441-0B060iKF82,LF82,RZF81..GL..RHD200208-200406

LGX

main75441-0B070iKF80..DLX..MA199804-200103

1.8GLI

main75441-0B080iKF80..MA200212-200503

1.8L

main75441-0B090iLF80..MA199804-200212

GLD

main75441-0B100iKF80..SHRW..TAIW200210-200612

GL

main75441-0B110iKF80..DLX..(TAIW,VN)199902-200302

DX

main75441-0B140iRZF84,85..LHD199911-200210

2.4

main75441-0B170iRZF84200210-200612

VX

main75441-0B180iRZF85..LHD200210-200612

VX-4

main75441-38010iKF82,LF82..GL..PHL200211-200411

GLX

main75441-38020iKF80,LF80..DLX..PHL199810-200211

DLX

main75441-38030iRZF82200211-200411

GSX

main75441-YG050×2iLF85,RZF80,85..GL..SA200306-200503

TX

main75441-YG060×2iLF81,RZF80,81..DLX..RHD200306-200503

TE

main75441-YX010iLF82,RZF81..GL..RHD200208-200406

KRISTA

75442APLATE, BACK DOOR NAME, NO.2

main75442-0B010iKF70,80..4FC..GEN199612-200001

AUTOMATIC

main75442-0B020iRZF85..LHD199911-200210

4WD FULL TIME

main75442-0B040iKF82,RZF81..4FC..RHD200208-200406

4AT

main75442-YG030iRZF81..SA200306-200503

2000I

main75442-YG040iRZF80,85..RHD200306-200503

2400I

main75442-YG050iLF61,81,85200306-200503

3000D

main75442-YG060iLF85,RZF85..SA200306-200503

4X4

75443PLATE, BACK DOOR NAME, NO.3

main75443-0B010iLF7#,80,82..GEN199612-200208

DIESEL

main75443-0B020iKF82..PHL200211-200411

1.8 EFI

main75443-0B030iLF82..LHD200211-200411

DIESEL

main75443-0B040iRZF85..LHD199911-200210

VX-4

main75443-0B060iKF72,82..RHD200208-200406

1.8 EFI

main75443-0B080iRZF71,81..RHD200010-200208

2.0 EFI

main75443-0B090iRZF81..LHD200102-200211

2.0 EFI

main75443-YX010iLF80,82..GEN200208-200406

2.4D

9018304048

main90183-04048

9 parts on this diagram · 6 diagrams in section
