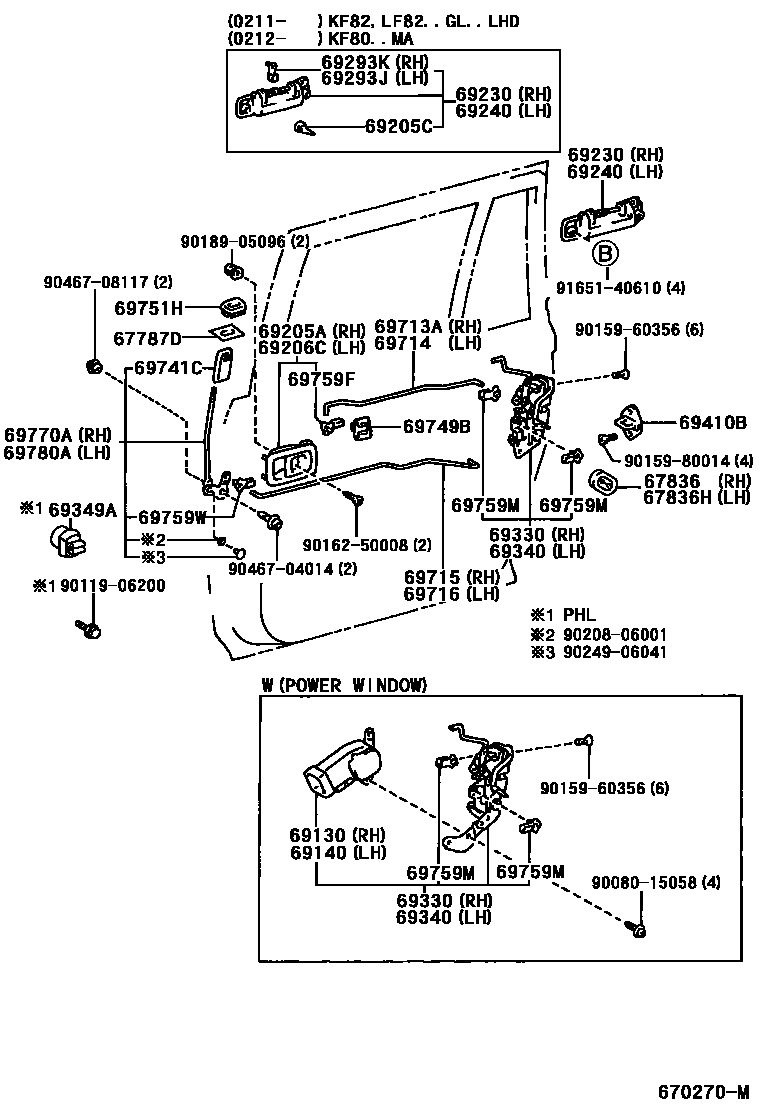

REAR DOOR LOCK & HANDLE

0001 1 0002 1

67787DSILENCER, REAR DOOR LOCKING BUTTON KNOB

main67787-37020iKF72,82,LF82,RZF81..GEN199612-200612

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-95D00iLF81,85,RZF80,85,YF80..SA200004-200612

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-95D00iKF80,LF80,81,85,RZF80,81,85,YF80..MA,PHL,SA200004-200612

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-0B010iKF72,82,LF82,RZF81..GL..RHD199612-200405

main69130-20140iRZF84,85..LHD;KF80..SHRW..TAIW199810-200612

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-0B010iKF72..CBU;KF80..DLX..MA;KF70,8#,LF80,82..GL..RHD199612-200405

main69140-20140iRZF84,85..LHD;KF80..SHRW..TAIW199810-200612

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0B010-B0iKF80..VN199909-200302

BLUISH GRAY,TRIM1#

main69205-16110-B0iKF82,LF82..(DLX,STD)..PHL199810-200707

BLUISH GRAY,TRIM1#

main69205-16110-E0iKF82,LF82,RZF82..GL..PHL200210-200707

FAWN,TRIM4#

main69205-38010-B0iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

BLUISH GRAY,TRIM1#

main69205-38010-E0iLF81,85,RZF80,81,85..SA200306-200503

FAWN,TRIM4#

main69207-0B010iKF72,LF82..IV7200102-200208

sub69206-0B010

main69207-0B010-B0iKF7#,8#,LF7#,80,82,RZF71,81..RHD199612-200601

BLUISH GRAY,TRIM1#

sub69206-0B010

main69207-0B010-E0iKF72,82,LF82,RZF81..GL..RHD200208-200503

FAWN,TRIM4#

sub69206-0B010

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-03021iKF80..MA200212-200503

main90541-T0001iKF82,LF82..GL..PHL200211-200411

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0B010-B0iKF80..VN199909-200302

BLUISH GRAY,TRIM1#

main69206-16110-B0iKF82,LF82..(DLX,STD)..PHL199810-200707

BLUISH GRAY,TRIM1#

main69206-16110-E0iKF80,RZF84,85..GL..TAIW200210-200707

FAWN,TRIM4#

main69206-38010-B0iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

BLUISH GRAY,TRIM1#

sub69206-38010

main69206-38010-E0iLF81,85,RZF80,81,85..SA200306-200503

FAWN,TRIM4#

sub69206-38010

main69208-0B010iKF72,LF82..IV7200102-200208

sub69205-0B010

main69208-0B010-B0iKF7#,8#,LF7#,80,82,RZF71,81..RHD199612-200601

BLUISH GRAY,TRIM1#

sub69205-0B010

main69208-0B010-E0iKF80..MA200208-200503

FAWN,TRIM4#

sub69205-0B010

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0B040iKF72,82,LF82,RZF81..GL..RHD200208-200405

NO PAINT REQ.

main69210-0B060-A1iKF82,LF82..GL..PHL200211-200411

WHITE,060

main69210-0B060-C0iKF82,LF82..GL..PHL200211-200411

BLACK MC.,209

main69210-0B060-D0iKF82,LF82..GL..PHL200211-200411

RED M.M.,2JG ,3P1

main69210-0B060-G0iKF82,LF82..GL..PHL200211-200411

DARK GREEN MC.,2JH ,6R4

main69210-0B060-J0iKF82,LF82..GL..PHL200211-200411

DK.BLUE MC.,8N8

main69210-0B900iKF80..MA200212-200503

main69210-38010iRZF81..LHD200010-200612

CHROME PLATED

main69210-90P00iKF7#,8#,LF80,82..(DLX,STD)..RHD199612-200405

NO PAINT REQ.

main69210-90P50iKF80,LF80..PHL,VN199810-200411

BLACK

main69230-38010iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

NO PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-0B040iKF72,82,LF82,RZF81..GL..RHD200208-200405

BLACK

main69220-0B060-A1iKF82,LF82..GL..PHL200211-200411

WHITE,060

main69220-0B060-C0iKF82,LF82..GL..PHL200211-200411

BLACK MC.,209

main69220-0B060-D0iKF82,LF82..GL..PHL200211-200411

RED M.M.,2JG ,3P1

main69220-0B060-G0iKF82,LF82..GL..PHL200211-200411

DARK GREEN MC.,2JH ,6R4

main69220-0B060-J0iKF82,LF82..GL..PHL200211-200411

DK.BLUE MC.,8N8

main69220-0B900iKF80..MA200212-200503

UNPAINTED

main69220-38010iKF82..GL..VN;KF80..(SHRV,SRF)..GL..(MA,TAIW)200010-200612

CHROME PLATED

main69220-90P00iKF80,LF80..MA199612-200405

BLACK

main69220-90P50iKF82,LF82..(DLX,STD)..PHL199810-200411

BLACK

main69240-38010iLF61,81,85,RZF61,80,81,85..SA200004-200503

BLACK

69293JSNAP, REAR DOOR OUTSIDE HANDLE, LH

main69293-0B060iKF82,LF82..GL..PHL200211-200411

main69293-12030iKF80,LF61,81,85,RZF61,80,81,85..MA,SA200212-200503

69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH

main69293-0B050iKF82,LF82..GL..PHL200211-200411

main69293-12040iKF80,LF61,81,85,RZF61,80,81,85..MA,SA200212-200503

69330LOCK ASSY, REAR DOOR, RH

main69050-0B020iKF80,RZF84,85..GL..(TAIW,VN)199810-200302

main69050-0B030iKF80..DLX..TAIW199902-200210

main69050-0B060iKF80,LF80,RZF81..GLX200102-200612

main69050-0B080iKF72,82,LF82,RZF81..GL..RHD200208-200405

main69050-38010iLF85;LF81,RZF80,81,85..SA..RHD200004-200503

main69305-0B010iKF72,82,LF82..GL199612-200208

W(POWER DOOR LOCK)

main69305-0B010iRZF71,81..RHD200010-200208

main69330-0B010iKF7#,8#,LF7#,80,82..(DLX,STD)..GEN199612-200208

main69330-0B020iKF80..DLX..(PHL,VN);LF80..(DLX,GL)..LHD;KF80..5F..(GL,STD)..(PHL,TAIW)199810-200302

main69330-0B050iKF82,LF82..(DLX,STD)..PHL200102-200411

main69330-0B060iKF7#,8#,LF80,82..(DLX,STD)..RHD200208-200405

main69330-0B080iKF82..DLX..VN;KF80..STD..LHD200210

main69330-38030iLF81,YF80..LHD200004-200503

main69330-38040iLF61,YF60200004-200503

69340LOCK ASSY, REAR DOOR, LH

main69060-0B020iKF80..GL..VN199810-200302

main69060-0B030iKF80..DLX..TAIW199902-200210

main69060-0B060iKF80,LF80,RZF81..GLX200102-200612

main69060-0B080iKF72,82,LF82,RZF81..GL..RHD200208-200405

main69060-38010iLF85;LF81,RZF80,81,85..SA..RHD200004-200503

main69306-0B010iKF80..MA;KF72,82,LF80,82..GL..RHD199612-200208

W(POWER DOOR LOCK)

main69306-0B010iRZF71,81..RHD200010-200208

main69340-0B010iKF7#,8#,LF7#,80,82..(DLX,STD)..GEN199612-200208

main69340-0B020iKF80..DLX..VN;KF80..STD..LHD199810-200302

main69340-0B050iKF80,LF80..(DLX,GL)..PHL200102-200411

main69340-0B060iKF7#,8#,LF80,82..(DLX,STD)..RHD200208-200405

main69340-0B080iKF82..DLX..VN;KF80..STD..LHD200210

main69340-38030iLF81,RZF81..LHD200004-200503

main69340-38040iLF61,YF60200004-200503

69349ACLAMP, DOOR LOCK LINK

main69749-20030iKF80,LF80,81,85,RZF80,81,85,YF80..PHL,SA200004-200503

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0B020iKF80,LF61,RZF61..SHRV;KF82,LF81,85,RZF80,81,85..SHRW..5F199902-200612

main69410-0B040iKF7#,8#,LF80,82,RZF81..GEN200307-200405

main69410-87001iKF80,LF80,RZF81..SRF..CBU;KF7#,82,LF7#,82,RZF71..CBU..RHD199612-200307

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-0B010iKF7#,8#,LF7#,80,82,RZF71,81..CBU..GEN199612-200405

main69713-0B020iKF80,RZF84,85..TAIW,VN199902-200612

main69713-38030iKF80,LF80,RZF81..MA,PHL199804-200503

main69713-38050iLF61,81,85,RZF61,80,81,85..SA200004-200503

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-0B010iKF7#,8#,LF7#,80,82,RZF71,81..CBU..GEN199612-200405

main69714-0B020iKF80,RZF84,85..TAIW,VN199902-200612

main69714-38030iKF80,LF80,RZF81..MA,PHL199804-200503

main69714-38050iLF61,81,85,RZF61,80,81,85..SA200004-200503

69715LINK, REAR DOOR LOCKING CONTROL, NO.2 RH

main69715-0B010iKF7#,8#,LF7#,80,82,RZF71,81..CBU..GEN199612-200405

main69715-0B020iRZF84,85..LHD;KF80..SHRW..TAIW199902-200612

main69715-38030iKF80..MA199804-200503

69716LINK, REAR DOOR LOCKING CONTROL, NO.2 LH

main69716-0B010iKF7#,8#,LF7#,80,82,RZF71,81..CBU..GEN199612-200405

main69716-0B020iKF80,RZF84,85..TAIW,VN199902-200612

main69716-38030iKF80..MA199804-200503

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-0B010iKF72,LF82..IV7200102-200208

sub69741-32010

main69741-0B010-B0iKF7#,8#,LF80,82..(DLX,STD)..RHD199612-200405

BLUISH GRAY,TRIM1#

sub69741-32010

sub69741-0B010

main69741-0B010-E0iKF72,82,LF82,RZF81..GL..RHD200208-200405

FAWN,TRIM4#

sub69741-32010

sub69741-0B010

main69741-0B020-B0iKF82..VN;KF80,RZF84,85..TAIW200210-200707

BLUISH GRAY,TRIM1#

main69741-0B020-E0iKF80,RZF84,85..GL..TAIW200210-200707

FAWN,TRIM4#

main69741-0B060-B0iKF82,LF82..(DLX,STD)..PHL199810-200411

BLUISH GRAY,TRIM1#

main69741-0B060-E0iKF82,LF82,RZF82..GL..PHL200211-200411

FAWN,TRIM4#

main69741-32010-B0iKF80,LF80..MA199804-200212

BLUISH GRAY,TRIM1#

sub69741-32010

sub69741-90K00

main69741-32010-E0iKF80..MA200212-200503

FAWN,TRIM4#

sub69741-32010

sub69741-90K00

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12030iKF82..VN;KF80..(SHRV,SRF)..(MA,TAIW)199612-200612

main69749-32030iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB

main69751-20031-B0iKF70,80,LF80..GEN199612-200707

GRAY,TRIM1#

sub69751-20031

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-0B010iKF80..VN199909-200302

LH

main69759-0B100iKF7#,8#,LF80,82,RZF81..GEN199612-200601

RH

main69759-0B110iKF7#,8#,LF7#,80,82,RZF71,81..RHD199612-200601

LH

main69759-0B120iKF80..VN199909-200302

RH

main69759-20060iKF80,LF80,RZF81,84,85..PHL,TAIW199810-200612

RH

main69759-20070iRZF84,85..LHD;KF80..SHRW..TAIW199810-200612

LH

main69759-22040iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

LH

main69759-22050iLF61,81,85,RZF61,80,81,85..SA200004-200503

RH

69759MSNAP, DOOR LOCK CONTROL LINK

main69759-0B080iKF7#,8#,LF80,82,RZF81..GEN199612-200405

GREEN

main69759-0B090iKF7#,8#,LF80,82,RZF81..GEN199612-200405

GRAY

main69759-0B190iKF80,LF80,RZF84,85..LHD199810-200612

GREEN

main69759-0B200iKF82,LF82,RZF82..PHL199810-200612

GRAY

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-0B210iKF80,LF80,RZF81,84,85..LHD199810-200612

LH

main69759-0B220iKF82,LF82,RZF82..PHL199810-200612

RH

main69759-20380iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

BLACK

main69759-24030iKF7#,8#,LF80,82,RZF81..GEN199612-200503

LH

main69759-24030iLF61,81,85,RZF61,80,81,85..SA200004-200503

RED

main69759-24040iKF80..MA199612-200503

RH

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0B010-B0iKF7#,8#,LF7#,80,82,RZF71,81..CBU..GEN199612-200405

BLUISH GRAY,TRIM1#

main69770-0B020-B0iKF82..DLX..VN;KF80..STD..LHD199902-200707

BLUISH GRAY,TRIM1#

main69770-0B030iKF80,LF80,RZF81..PHL199810-200411

main69770-0B050-E0iKF72,82,LF82,RZF81..GL..RHD200208-200405

FAWN,TRIM4#

main69770-0B060-B0iKF82..GL..VN;KF80,RZF84,85..(DLX,GL)..TAIW200210-200707

BLUISH GRAY,TRIM1#

main69770-0B060-E0iKF80,RZF84,85..GL..TAIW200210-200707

FAWN,TRIM4#

main69770-38030-B0iKF80,LF80..MA199804-200212

BLUISH GRAY,TRIM1#

main69770-38050-E0iKF80..MA200212-200503

FAWN,TRIM4#

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-0B010-B0iKF7#,8#,LF80,82..(DLX,STD)..RHD199612-200405

BLUISH GRAY,TRIM1#

main69780-0B020-B0iKF80..VN199902-200707

BLUISH GRAY,TRIM1#

main69780-0B030iKF80,LF80,RZF81..PHL199810-200411

main69780-0B050-E0iKF72,82,LF82,RZF81..GL..RHD200208-200405

FAWN,TRIM4#

main69780-0B060-B0iKF82..GL..VN;KF80,RZF84,85..(DLX,GL)..TAIW200210-200707

BLUISH GRAY,TRIM1#

main69780-0B060-E0iKF80,RZF84,85..GL..TAIW200210-200707

FAWN,TRIM4#

main69780-38030-B0iKF80,LF80..MA199804-200212

BLUISH GRAY,TRIM1#

main69780-38050-E0iKF80..MA200212-200503

FAWN,TRIM4#

9008015058

main90080-15058

9011906200

main90119-06200

9015960356

main90159-60356

9015980014

main90159-80014

9016250008

main90162-50008

9018905096

main90189-05096

9020806001

main90208-06001

9024906041

main90249-06041

9046704014

main90467-04014

9046708117

main90467-08117

9165140610

main91651-40610

39 parts on this diagram · 2 diagrams in section
