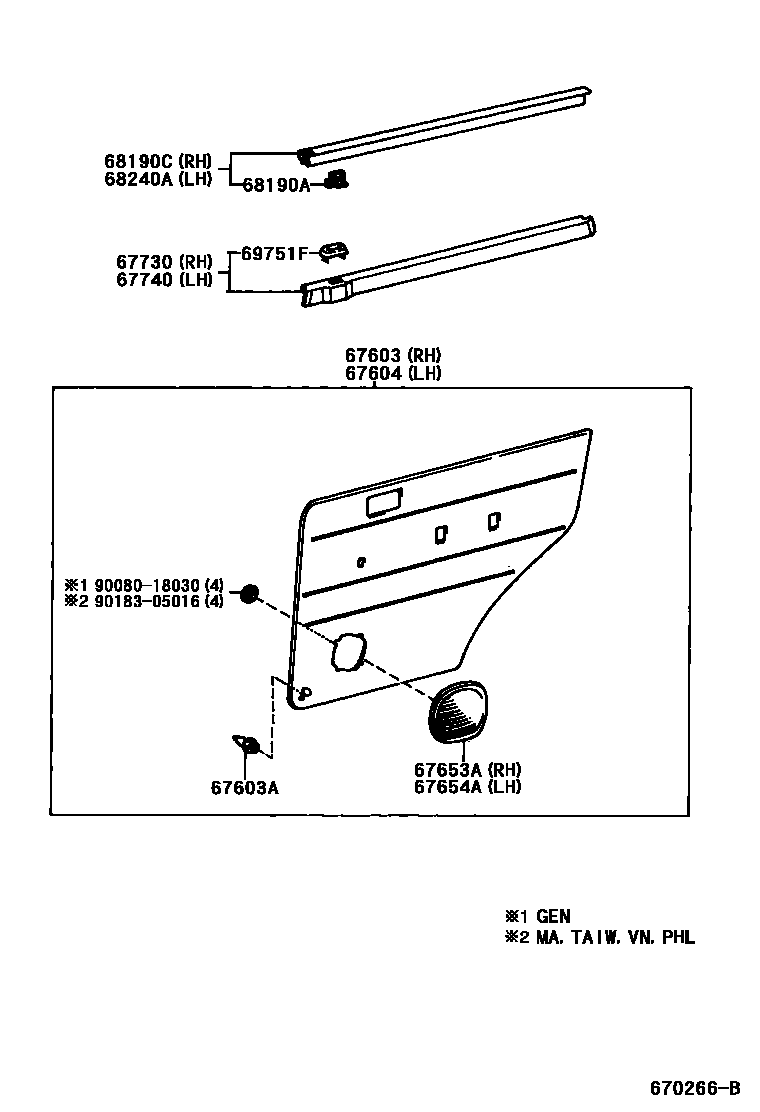

REAR DOOR PANEL & GLASS

0001 1 0005 1 0010 1 0014 1W(WINDOW GUARD) 0015 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67613-YG010iLF61,RZF61200306-200503

main67630-0B010-B0×2iKF70200208-200406

BLUISH GRAY,TRIM1#

main67630-0B020-B0iKF70,LF70..DLX..CBU199612-199809

BLUISH GRAY,TRIM1#

main67630-0B030-B0iKF70..GL199612-200001

BLUISH GRAY,TRIM1#

main67630-0B040-B0iKF80,LF80..STD..RHD199612-200208

BLUISH GRAY,TRIM1#

main67630-0B050-B0iKF80,LF80..DLX..CBU..GEN199612-199809

BLUISH GRAY,TRIM1#

main67630-0B060-B0iKF80,LF80..GL..RHD199612-199910

BLUISH GRAY,TRIM1#

main67630-0B070-B0iKF80..DLX..MA199804-199910

BLUISH GRAY,TRIM1#

main67630-0B080-B0iKF80,LF80..DLX..PHL199810-200211

BLUISH GRAY,TRIM1#

main67630-0B090-B0iKF80,LF80..GL..PHL199810-200102

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main67630-0B100-B0iKF80,LF80..GLX199810-200102

W(6 SPEAKER),BLUISH GRAY,TRIM1#

main67630-0B110-B0iKF80..STD..LHD200210-200707

BLUISH GRAY,TRIM1#

main67630-0B130-B0iKF80..GL..TAIW199902-200210

BLUISH GRAY,TRIM1#

main67630-0B160-B0iKF80,LF80..GL..PHL199810-200102

BLUISH GRAY,TRIM1#

main67630-0B170-B0iKF80,LF80..GLX199810-200102

BLUISH GRAY,TRIM1#

main67630-0B210-B0iKF80..DLX..TAIW199902-200210

BLUISH GRAY,TRIM1#

main67630-0B260-B1iKF70,LF70..DLX..CBU199809-200001

BLUISH GRAY,TRIM1#

main67630-0B270-B0iRZF71200010-200208

BLUISH GRAY,TRIM1#,(L)

main67630-0B280-B1iKF80,LF80..DLX..CBU..GEN199809-200001

BLUISH GRAY,TRIM1#

main67630-0B290-B0iRZF81..RHD200010-200208

BLUISH GRAY,TRIM1#,(L)

main67630-0B300-B1iKF72,LF72..DLX..CBU200001-200208

BLUISH GRAY,TRIM1#

main67630-0B310-B0iKF72..GL200001-200208

BLUISH GRAY,TRIM1#

main67630-0B320-B1iKF82,LF82..DLX..CBU200001-200208

BLUISH GRAY,TRIM1#

main67630-0B330-B0iKF82,LF82..GL200001-200208

BLUISH GRAY,TRIM1#

main67630-0B340-B0iKF80..DLX..VN199909-200302

BLUISH GRAY,TRIM1#

main67630-0B350-B0iKF80..GL..VN199909-200302

BLUISH GRAY,TRIM1#

main67630-0B390-B0iRZF85..LHD199911-200210

BLUISH GRAY,TRIM1#

main67630-0B390-B1iRZF84200003-200210

BLUISH GRAY,TRIM1#

main67630-0B400-B0iRZF71200010-200208

BLUISH GRAY,TRIM1#,(J)

main67630-0B410-B0iRZF81..RHD200010-200208

BLUISH GRAY,TRIM1#,(J)

main67630-0B440-B0iRZF81..LHD200102-200211

BLUISH GRAY,TRIM1#

main67630-0B450-B0iKF80..DLX..MA199910-200103

BLUISH GRAY,TRIM1#

main67630-0B460-B0iKF80,LF80..GL..MA199910-200103

BLUISH GRAY,TRIM1#

main67630-0B550-E3iKF72..GL200208-200406

FAWN,TRIM4#

main67630-0B560-E3iKF82,LF82..GL..RHD200208-200406

FAWN,TRIM4#

main67630-0B570-E2iRZF81..GEN200208-200406

FAWN,TRIM4#

main67630-0B580-E1iKF80..MA200212-200503

DOOR TRIM=TYPE A-*104,FAWN,TRIM4#

main67630-0B590-E2iKF80..MA200212-200503

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67630-0B600-E2iRZF82200211-200501

DOOR TRIM=TYPE A-*104,FAWN,TRIM4#

main67630-0B600-E3iKF82,LF82..GL..PHL200211-200501

DOOR TRIM=TYPE A-*104,FAWN,TRIM4#

main67630-0B610-B0iKF80,LF80..GL..PHL200102-200211

BLUISH GRAY,TRIM1#

main67630-0B620-B0iKF80,LF80..GLX200102-200211

BLUISH GRAY,TRIM1#

main67630-0B630-B0iKF80,LF80..MA200103-200212

BLUISH GRAY,TRIM1#

main67630-0B650-B0iLF81,RZF80,81..DLX200306-200503

BLUISH GRAY,TRIM1#

main67630-0B660-B0iKF72..DLX200208-200406

BLUISH GRAY,TRIM1#

main67630-0B680-E0iLF85,RZF80,85..GL..SA200306-200503

FAWN,TRIM4#

main67630-0B700-E2iRZF82200211-200501

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67630-0B700-E3iKF82,LF82..GL..PHL200211-200501

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67630-0B730-B0iKF80..DLX..TAIW200210-200707

BLUISH GRAY,TRIM1#

main67630-0B730-E1iKF80,RZF84,85..GL..TAIW200210-200707

FAWN,TRIM4#

main67630-0B760-B1iKF82..DLX..VN200302-200512

BLUISH GRAY,TRIM1#

main67630-0B830-B0iKF82,LF82..DLX..RHD200208-200406

BLUISH GRAY,TRIM1#

main67630-0B850-B0iKF82,LF82..DLX..PHL200211-200501

BLUISH GRAY,TRIM1#

main67630-0B860-E0iLF82,RZF81..GL..RHD200208-200406

LUXURY,FAWN,TRIM4#

main67630-0B870-B0iRZF84,85..LHD200210-200612

BLUISH GRAY,TRIM1#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-0B010×20iLF81,RZF80,81..DLX200306-200503

main67771-0B020×16iKF80..MA200212-200503

main67771-0B030×20iKF7#,8#,LF80,82..(DLX,STD)..RHD; KF72,82,LF82,RZF81..GL..RHD200301-200406

main67771-12030×8iKF82..DLX..VN200302-200512

YELLOW GREEN

main67771-12050×12iKF80..VN199911-200302

RED

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67614-YG010iLF61,RZF61200306-200503

main67640-0B010-B0iKF70..STD199612-200208

BLUISH GRAY,TRIM1#

main67640-0B020-B0iKF70,LF70..DLX..CBU199612-199809

BLUISH GRAY,TRIM1#

main67640-0B030-B0iKF70..GL199612-200001

BLUISH GRAY,TRIM1#

main67640-0B040-B0×2iKF80,LF80..GEN200208-200406

BLUISH GRAY,TRIM1#

main67640-0B050-B0iKF80,LF80..DLX..CBU..GEN199612-199809

BLUISH GRAY,TRIM1#

main67640-0B060-B0iKF80,LF80..GL..RHD199612-199910

BLUISH GRAY,TRIM1#

main67640-0B070-B0iKF80..DLX..MA199804-199910

BLUISH GRAY,TRIM1#

main67640-0B080-B0iKF80,LF80..DLX..PHL199810-200211

BLUISH GRAY,TRIM1#

main67640-0B090-B0iKF80,LF80..GL..PHL199810-200102

W(4 SPEAKER),BLUISH GRAY,TRIM1#

main67640-0B100-B0iKF80,LF80..GLX199810-200102

W(6 SPEAKER),BLUISH GRAY,TRIM1#

main67640-0B110-B0iKF80..STD..LHD200210-200707

BLUISH GRAY,TRIM1#

main67640-0B130-B0iKF80..GL..TAIW199902-200210

BLUISH GRAY,TRIM1#

main67640-0B160-B0iKF80,LF80..GL..PHL199810-200102

BLUISH GRAY,TRIM1#

main67640-0B170-B0iKF80,LF80..GLX199810-200102

BLUISH GRAY,TRIM1#

main67640-0B210-B0iKF80..DLX..TAIW199902-200210

BLUISH GRAY,TRIM1#

main67640-0B260-B1iKF70,LF70..DLX..CBU199809-200001

BLUISH GRAY,TRIM1#

main67640-0B270-B0iRZF71200010-200208

BLUISH GRAY,TRIM1#,(L)

main67640-0B280-B1iKF80,LF80..DLX..CBU..GEN199809-200001

BLUISH GRAY,TRIM1#

main67640-0B290-B0iRZF81..RHD200010-200208

BLUISH GRAY,TRIM1#,(L)

main67640-0B300-B1iKF72,LF72..DLX..CBU200001-200208

BLUISH GRAY,TRIM1#

main67640-0B310-B0iKF72..GL200001-200208

BLUISH GRAY,TRIM1#

main67640-0B320-B1iKF82,LF82..DLX..CBU200001-200208

BLUISH GRAY,TRIM1#

main67640-0B330-B0iKF82,LF82..GL200001-200208

BLUISH GRAY,TRIM1#

main67640-0B340-B0iKF80..DLX..VN199909-200302

BLUISH GRAY,TRIM1#

main67640-0B350-B0iKF80..GL..VN199909-200302

BLUISH GRAY,TRIM1#

main67640-0B390-B0iRZF85..LHD199911-200210

BLUISH GRAY,TRIM1#

main67640-0B390-B1iRZF84200003-200210

BLUISH GRAY,TRIM1#

main67640-0B400-B0iRZF71200010-200208

BLUISH GRAY,TRIM1#,(J)

main67640-0B410-B0iRZF81..RHD200010-200208

BLUISH GRAY,TRIM1#,(J)

main67640-0B440-B0iRZF81..LHD200102-200211

BLUISH GRAY,TRIM1#

main67640-0B450-B0iKF80..DLX..MA199910-200103

BLUISH GRAY,TRIM1#

main67640-0B460-B0iKF80,LF80..GL..MA199910-200103

BLUISH GRAY,TRIM1#

main67640-0B550-E3iKF72..GL200208-200406

FAWN,TRIM4#

main67640-0B560-E3iKF82,LF82..GL..RHD200208-200406

FAWN,TRIM4#

main67640-0B570-E2iRZF81..GEN200208-200406

FAWN,TRIM4#

main67640-0B580-E1iKF80..MA200212-200503

DOOR TRIM=TYPE A-*104,FAWN,TRIM4#

main67640-0B590-E2iKF80..MA200212-200503

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67640-0B600-E2iRZF82200211-200501

DOOR TRIM=TYPE A-*104,FAWN,TRIM4#

main67640-0B600-E3iKF82,LF82..GL..PHL200211-200501

DOOR TRIM=TYPE A-*104,FAWN,TRIM4#

main67640-0B610-B0iKF80,LF80..GL..PHL200102-200211

BLUISH GRAY,TRIM1#

main67640-0B620-B0iKF80,LF80..GLX200102-200211

BLUISH GRAY,TRIM1#

main67640-0B630-B0iKF80,LF80..MA200103-200212

BLUISH GRAY,TRIM1#

main67640-0B650-B0iLF81,RZF80,81..DLX200306-200503

BLUISH GRAY,TRIM1#

main67640-0B660-B0iKF72..DLX200208-200406

BLUISH GRAY,TRIM1#

main67640-0B680-E0iLF85,RZF80,85..GL..SA200306-200503

FAWN,TRIM4#

main67640-0B700-E2iRZF82200211-200501

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67640-0B700-E3iKF82,LF82..GL..PHL200211-200501

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67640-0B730-B0iKF80..DLX..TAIW200210-200707

BLUISH GRAY,TRIM1#

main67640-0B730-E1iKF80,RZF84,85..GL..TAIW200210-200707

FAWN,TRIM4#

main67640-0B760-B1iKF82..DLX..VN200302-200512

BLUISH GRAY,TRIM1#

main67640-0B830-B0iKF82,LF82..DLX..RHD200208-200406

BLUISH GRAY,TRIM1#

main67640-0B850-B0iKF82,LF82..DLX..PHL200211-200501

BLUISH GRAY,TRIM1#

main67640-0B860-E0iLF82,RZF81..GL..RHD200208-200406

LUXURY,FAWN,TRIM4#

main67640-0B870-B0iKF82..GL..VN200302-200307

BLUISH GRAY,TRIM10

67653AGRILLE, SPEAKER REAR DOOR, RH

main67651-0B010-B0iKF72,82,LF82..DLX..RHD200208-200406

BLUISH GRAY,TRIM1#

main67651-0B050-B0iKF80,RZF84,85..(DLX,GL)..(TAIW,VN)199902-200210

BLUISH GRAY,TRIM1#

main67651-0B080-B0iLF81,RZF80,81..DLX200306-200503

BLUISH GRAY,TRIM1#

main67651-0B080-E0iLF85,RZF80,85..GL..SA200306-200503

FAWN,TRIM4#

67654AGRILLE, SPEAKER REAR DOOR, LH

main67651-0B010-B0iKF80,LF80..(GL,GLX)..PHL;KF80,LF80..(DLX,GL)..CBU..RHD;KF7#,82,LF7#,82,RZF71,81..(DLX,GL,GLX)..CBU199612-200208

BLUISH GRAY,TRIM1#

main67651-0B050-B0iKF80,RZF84,85..(DLX,GL)..(TAIW,VN)199902-200210

BLUISH GRAY,TRIM1#

main67651-0B080-B0iLF81,RZF80,81..DLX200306-200503

BLUISH GRAY,TRIM1#

main67651-0B080-E0iLF85,RZF80,85..GL..SA200306-200503

FAWN,TRIM4#

67730PANEL ASSY, REAR DOOR TRIM, UPPER RH

main67730-0B010-B0iKF7#,8#,LF7#,80,82,RZF71,81..(DLX,GL)..CBU..RHD199612-200208

BLUISH GRAY,TRIM1#

main67730-0B020-B0iKF80,LF80,RZF81..(GL,GLX)..PHL199810-200211

BLUISH GRAY,TRIM1#

main67730-0B030-B0iKF80,RZF84,85..(DLX,GL)..TAIW199902-200210

BLUISH GRAY,TRIM1#

main67730-0B040-B0iLF81,RZF80,81..DLX200306-200503

BLUISH GRAY,TRIM1#

main67730-0B040-E0iLF85,RZF80,85..GL..SA200306-200503

FAWN,TRIM4#

main67730-0B050-B0iKF80..VN199909-200302

BLUISH GRAY,TRIM1#

67740PANEL ASSY, REAR DOOR TRIM, UPPER LH

main67740-0B010-B0iKF72,82,LF82..DLX..RHD200208-200406

BLUISH GRAY,TRIM1#

main67740-0B020-B0iKF80,LF80,RZF81..(GL,GLX)..PHL199810-200211

BLUISH GRAY,TRIM1#

main67740-0B030-B0iKF80,RZF84,85..(DLX,GL)..TAIW199902-200210

BLUISH GRAY,TRIM1#

main67740-0B040-B0iLF81,RZF80,81..DLX200306-200503

BLUISH GRAY,TRIM1#

main67740-0B040-E0iLF85,RZF80,85..GL..SA200306-200503

FAWN,TRIM4#

main67740-0B050-B0iKF82..DLX..VN200302-200512

BLUISH GRAY,TRIM1#

68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030×8iKF7#,8#,LF80,82,RZF81..GEN200208-200405

68190CWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH

main68190-0B010iKF82,LF82..(DLX,STD)..PHL200208-200411

main68190-0B030iLF81,85,RZF80,81,85..SA200306-200503

main68190-0B040iKF80..MA200208-200503

main68190-0B070iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68240-0B010iKF7#,8#,LF7#,80,82,RZF71,81,84,85..CBU..(GEN,MA,PHL,TAIW,VN)199612-200208

main68240-0B030iLF81,85,RZF80,81,85..SA200306-200503

main68240-0B040iKF72,82,LF82,RZF81..GL..RHD200208-200405

main68240-0B070iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-0B020-B0×2iKF80..VN200212-200302

BLUISH GRAY,TRIM1#

main69751-0B050-B0×2iKF80,RZF84,85..(DLX,GL)..TAIW199902-200210

BLUISH GRAY,TRIM1#

main69751-0B080-E0×2iKF80..MA200212-200503

FAWN,TRIM4#

main69751-12050-B3×2iKF82..GL..VN200210-200512

BLUISH GRAY,TRIM1#

main69751-12050-E1×2iKF80..GL..TAIW;KF72,82,LF82,RZF81,82,84,85..GL..(GEN,PHL,TAIW)200208-200707

FAWN,TRIM4#

9008018030

main90080-18030

9018305016

main90183-05016

13 parts on this diagram · 5 diagrams in section
