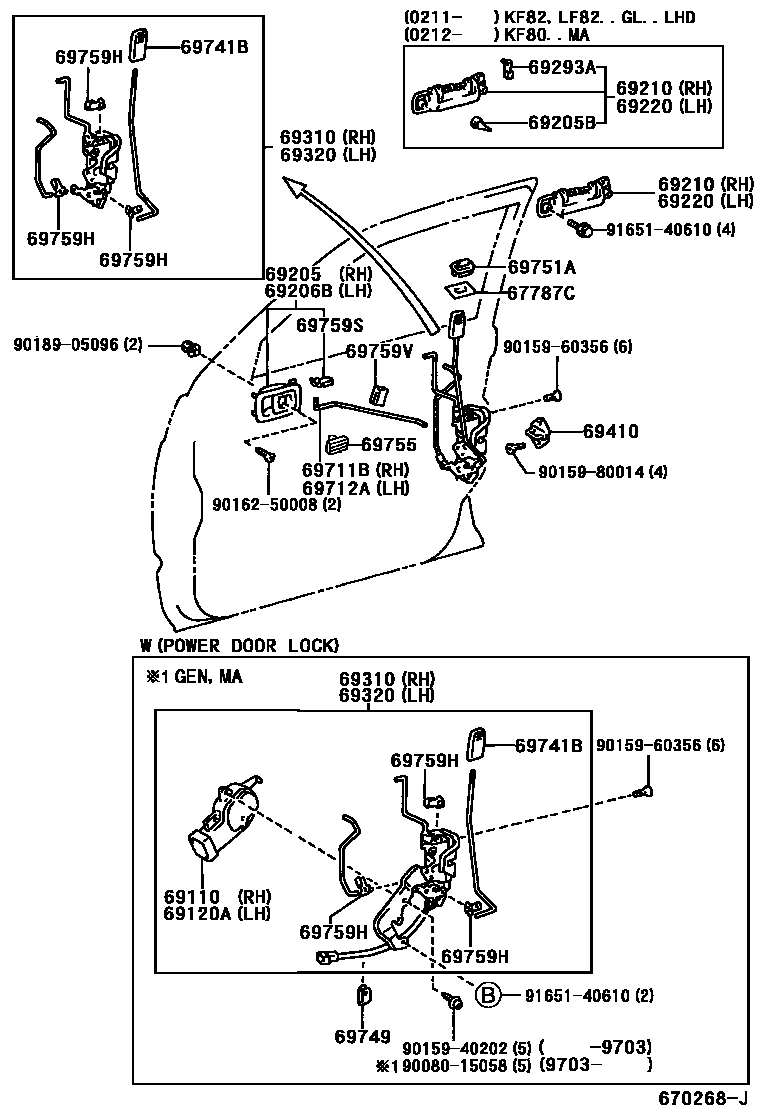

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

67787CSILENCER, FRONT DOOR LOCKING BUTTON KNOB

main67787-37020iKF82,LF82,RZF82..(DLX,GL)..PHL199612-200612

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-0B010iKF72..CBU;KF80..DLX..MA;KF70,8#,LF80,82..GL..RHD199612-200405

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-0B010iKF80..MA;KF72,82,LF80,82,RZF71,81..GL..RHD199612-200405

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0B010iKF72,LF82..IV7200102-200208

main69205-0B010-B0iKF60,7#,8#,LF60,72,80,82,RZF71,81..CBU..(GEN,MA,VN)199612-200612

BLUISH GRAY,TRIM1#

main69205-0B010-E0iKF80..MA200208-200503

FAWN,TRIM4#

main69205-38010-B0iLF61,81,85,RZF61,80,81,85..SA200004-200503

BLUISH GRAY,TRIM1#

main69205-38010-E0iLF81,85,RZF80,81,85..SA200306-200503

FAWN,TRIM4#

main69206-16110-B0iKF60,80,LF80,RZF81,84,85..PHL,TAIW199810-200707

BLUISH GRAY,TRIM1#

main69206-16110-E0iKF80,RZF84,85..GL..TAIW200210-200707

FAWN,TRIM4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-03021iKF80..MA200212-200503

main90541-T0001iKF82,LF82..GL..PHL200211-200411

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69205-16110-B0iKF60,80,LF80,RZF81,84,85..PHL,TAIW199810-200707

BLUISH GRAY,TRIM1#

main69205-16110-E0iKF80,RZF84,85..GL..TAIW200210-200707

FAWN,TRIM4#

main69206-0B010iKF72,LF82..IV7200102-200208

main69206-0B010-B0iKF60,82..(SCB,SHRW)..(LUB,SD)199612-200612

BLUISH GRAY,TRIM1#

main69206-0B010-E0iKF80..MA200208-200503

FAWN,TRIM4#

main69206-38010-B0iLF61,81,85,RZF61,80,81,85..SA200004-200503

BLUISH GRAY,TRIM1#

sub69206-38010

main69206-38010-E0iLF81,85,RZF80,81,85..SA200306-200503

FAWN,TRIM4#

sub69206-38010

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0B040iKF72,82,LF82,RZF81..GL..RHD200208-200405

NO PAINT REQ.

main69210-0B060-A1iKF82,LF82..GL..PHL200211-200411

WHITE,060

main69210-0B060-C0iKF82,LF82..GL..PHL200211-200411

BLACK MC.,209

main69210-0B060-D0iKF82,LF82..GL..PHL200211-200411

RED M.M.,2JG ,3P1

main69210-0B060-G0iKF82,LF82..GL..PHL200211-200411

DARK GREEN MC.,2JH ,6R4

main69210-0B060-J0iKF82,LF82..GL..PHL200211-200411

DK.BLUE MC.,8N8

main69210-0B900iKF80..MA200212-200503

UNPAINTED

main69210-12190iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

NO PAINT REQ.

main69210-38010iLF82,RZF71,81..GL,GLX200010-200612

CHROME PLATED

main69210-90P00iKF60..SD199612-200612

NO PAINT REQ.

main69210-90P50iKF80,LF80..PHL,VN199810-200411

BLACK

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-38010iLF82..GL200010-200208

CHROME PLATED

main69220-0B040iKF72,82,LF82,RZF81..GL..RHD200208-200405

BLACK

main69220-0B060-A1iKF82,LF82..GL..PHL200211-200411

WHITE,060

main69220-0B060-C0iKF82,LF82..GL..PHL200211-200411

BLACK MC.,209

main69220-0B060-D0iKF82,LF82..GL..PHL200211-200411

RED M.M.,2JG ,3P1

main69220-0B060-G0iKF82,LF82..GL..PHL200211-200411

DARK GREEN MC.,2JH ,6R4

main69220-0B060-J0iKF82,LF82..GL..PHL200211-200411

DK.BLUE MC.,8N8

main69220-0B900iKF80..MA200212-200503

UNPAINTED

main69220-12180iLF61,81,85,RZF61,80,81,85..SA200004-200503

NO PAINT REQ.

main69220-38010iRZF81..LHD200010-200612

CHROME PLATED

main69220-90P00iKF80,LF80..MA199612-200612

BLACK

main69220-90P50iKF80,LF80..PHL,VN199810-200411

BLACK

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-0B050iKF82,LF82..GL..PHL200211-200411

RH

main69293-0B060iKF82,LF82..GL..PHL200211-200411

LH

main69293-12030iKF80,LF61,81,85,RZF61,80,81,85..MA,SA200212-200503

LH

main69293-12040iKF80,LF61,81,85,RZF61,80,81,85..MA,SA200212-200503

RH

69310LOCK ASSY, FRONT DOOR, RH

main69030-0B030-B0iKF80,RZF84,85..GL..(TAIW,VN)199902-200302

BLUISH GRAY,TRIM1#

main69030-0B050-B0iKF80..DLX..TAIW199902-200210

BLUISH GRAY,TRIM1#

main69030-0B060iKF80,LF80,RZF81..GLX199810-200411

main69030-0B090-B0iKF80,LF80..MA200103-200212

BLUISH GRAY,TRIM1#

main69030-0B120-E0iKF80..MA200212-200503

FAWN,TRIM4#

main69030-0B130-B0iKF82..GL..VN;KF80,RZF84,85..(DLX,GL)..TAIW200210-200707

BLUISH GRAY,TRIM1#

main69030-0B130-E0iKF80,RZF84,85..GL..TAIW200210-200707

FAWN,TRIM4#

main69030-38010iLF81,85,RZF80,81,85..SA..RHD200004-200503

main69030-38020iLF85..LHD200104-200503

main69303-0B020-B0iKF80..DLX..MA;KF70,80,LF80..GL..GEN199612-200103

BLUISH GRAY,TRIM1#

main69303-0B040-B0iRZF71,81..RHD200010-200208

BLUISH GRAY,TRIM1#

main69303-0B040-B0iKF72,82,LF82..GL199804-200208

W(POWER DOOR LOCK),BLUISH GRAY,TRIM1#

main69303-0B040-E0iKF72,82,LF82,RZF81..GL..RHD200208-200405

FAWN,TRIM4#

main69310-0B010iKF72,LF82..IV7200102-200208

main69310-0B010-B0iKF60,7#,8#,LF60,72,80,82..(DLX,STD)..CBU..GEN199612-200612

BLUISH GRAY,TRIM1#

main69310-0B020-B0iKF82..DLX..VN;KF60,80..STD..LHD199902-200707

BLUISH GRAY,TRIM1#

main69310-0B030iKF80,LF80..(DLX,GL)..PHL199810-200102

main69310-0B060iKF82,LF82..(DLX,STD)..PHL200102-200411

main69310-38010iYF60;LF61,81,YF80..LHD200004-200503

69320LOCK ASSY, FRONT DOOR, LH

main69040-0B030-B0iKF80,RZF84,85..GL..(TAIW,VN)199902-200302

BLUISH GRAY,TRIM1#

main69040-0B040-B0iKF80..DLX..TAIW199902-200210

BLUISH GRAY,TRIM1#

main69040-0B050iKF82,LF82,RZF82..GL..PHL199810-200411

main69040-0B080-B0iKF80,LF80..MA200103-200212

BLUISH GRAY,TRIM1#

main69040-0B110-E0iKF80..MA200212-200503

FAWN,TRIM4#

main69040-0B120-B0iKF82..GL..VN;KF80,RZF84,85..(DLX,GL)..TAIW200210-200707

BLUISH GRAY,TRIM1#

main69040-0B120-E0iKF80,RZF84,85..GL..TAIW200210-200707

FAWN,TRIM4#

main69040-38010iLF81,85,RZF80,81,85..SA..RHD200004-200503

main69040-38020iLF85..LHD200104-200503

main69304-0B020-B0iKF80..MA;KF72,82,LF80,82..GL..RHD199612-200208

W(POWER DOOR LOCK),BLUISH GRAY,TRIM1#

main69304-0B020-B0iRZF71,81..RHD200010-200208

BLUISH GRAY,TRIM1#

main69304-0B020-E0iKF72,82,LF82,RZF81..GL..RHD200208-200405

FAWN,TRIM4#

main69320-0B010iKF72,LF82..IV7200102-200208

main69320-0B010-B0iKF60..SD199612-200612

BLUISH GRAY,TRIM1#

main69320-0B020-B0iKF82..DLX..VN;KF60,80..STD..LHD199902-200707

BLUISH GRAY,TRIM1#

main69320-0B030iKF80,LF80..(DLX,GL)..PHL199810-200102

main69320-0B060iKF80,LF80..(DLX,GL)..PHL200102-200411

main69320-38010iRZF61;LF61,81,RZF81..LHD200004-200503

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0B020iRZF84,85..LHD;KF80..SHRW..TAIW199902-200612

main69410-0B040iKF60..SD200307-200612

main69410-87001iLF80..GEN;KF82,LF82,RZF82..SRF;KF60,7#,80,LF60,RZF81..GEN,MA199612-200307

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN199612-200612

main69711-0B020iKF60,80,LF80,RZF81,84,85..LHD199810-200612

main69711-38020iKF80..MA199804-200503

main69711-38030iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-0B010iKF60..FD199612-200612

main69712-0B020iKF82..VN;KF60,80..(SCB,SHRV)..LHD199810-200612

main69712-38020iKF80..MA199804-200503

main69712-38030iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-0B010iKF72,LF82..IV7200102-200208

sub69741-32010

main69741-0B010-B0iKF60..SD199612-200612

BLUISH GRAY,TRIM1#

sub69741-32010

sub69741-0B010

main69741-0B010-E0iKF72,82,LF82,RZF81..GL..RHD200208-200405

FAWN,TRIM4#

sub69741-32010

sub69741-0B010

main69741-0B020-B0iKF60,80,LF80,RZF84,85..MA,TAIW,VN199902-200707

BLUISH GRAY,TRIM1#

main69741-0B020-E0iKF80,RZF84,85..GL..(MA,TAIW)200210-200707

FAWN,TRIM4#

main69741-0B060-B0iKF82,LF82..(DLX,STD)..PHL199901-200411

BLUISH GRAY,TRIM1#

main69741-0B060-E0iKF82,LF82,RZF82..GL..PHL200211-200411

FAWN,TRIM4#

main69741-90K00-B3iKF80,LF80..LHD199810-199901

GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749CLAMP, FRONT DOOR LOCK LINK

main69749-0B010iKF80..MA;KF72,82,LF80,82,RZF71,81..GL..RHD199612-200405

main69749-32030iLF61,81,85,RZF61,80,81,85..SA200004-200503

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-12020iKF72,LF82..IV7200102-200208

sub69751-20031

main69751-20031-B0iKF80,LF80..DLX..PHL;KF7#,80,LF70,80,82..IV7;KF60,70,80,LF60,80..STD199612-200707

GRAY,TRIM1#

sub69751-20031

69755SILENCER, FRONT DOOR LOCK LINK

main69759-95500iKF82,LF82,RZF82..PHL199810-200411

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-0B020iLF60;KF60,7#,8#,LF80,82,RZF81..(FD,LUB)..GEN199612-200612

YELLOW

main69759-0B030iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN199612-200612

BROWN

main69759-0B040iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN199612-200612

RED

main69759-0B050iKF60..SD199612-200612

BLACK

main69759-0B060iLF60;KF60,7#,8#,LF80,82,RZF81..(FD,LUB)..GEN199612-200612

WHITE

main69759-0B070iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN199612-200612

BLUE

main69759-0B130iRZF84,85..LHD;KF80..SHRW..TAIW199810-200612

BROWN

main69759-0B140iKF60,80,LF80,RZF84,85..(DLX,GL,STD)..LHD199810-200612

YELLOW

main69759-0B150iKF60,80,LF80,RZF84,85..(DLX,GL,STD)..LHD199810-200612

RED

main69759-0B160iKF82,LF82..(DLX,STD)..PHL199810-200612

BLACK

main69759-0B170iRZF84,85..LHD;KF80..SHRW..TAIW199810-200612

WHITE

main69759-0B180iKF82,LF82..(DLX,STD)..PHL199810-200612

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-0B010iKF60..FD199612-200612

LH

main69759-0B120iKF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN,MA,VN199612-200612

RH

main69759-20060iKF60,80,LF80,RZF81,84,85..PHL,TAIW199810-200707

LH

main69759-20070iKF60,80,RZF84,85..TAIW199810-200707

RH

main69759-22040iLF61,81,85,RZF61,80,81,85..SA200004-200503

LH

main69759-22050iLF61,81,85,RZF61,80,81,85..SA200004-200503

RH

69759VSILENCER, FRONT DOOR LOCK LINK

main69388-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN,MA,VN199612-200612

main69388-0B030iRZF84,85..LHD;KF80..SHRW..TAIW199902-200612

main69388-0B040iKF80..MA200103-200503

9008015058

main90080-15058

9015940202

main90159-40202

9015960356

main90159-60356

9015980014

main90159-80014

9016250008

main90162-50008

9018905096

main90189-05096

9165140610

main91651-40610

28 parts on this diagram · 2 diagrams in section
