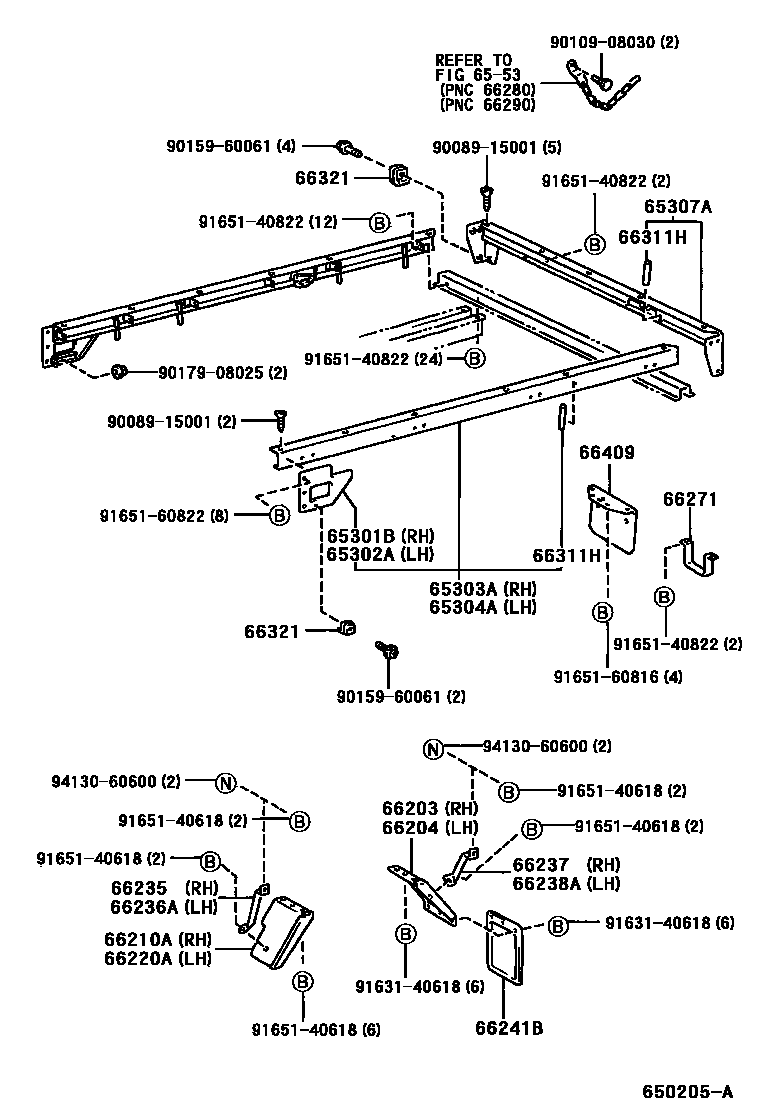

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1 0004 1

65301BPANEL SUB-ASSY, FLOOR FRONT CONER, RH

main65301-Y0010iKF60..LHD199902-200210

main65301-YZC01iKF60,LF60..FD200208

65302APANEL SUB-ASSY, FLOOR FRONT CONER, LH

main65302-Y0010iKF60..LHD199902-200210

main65302-YZC01iKF60,LF60..FD200208

65303AFRAME SUB-ASSY, FLOOR SIDE, RH

main65303-0B010iKF60..LHD199902-200210

65304AFRAME SUB-ASSY, FLOOR SIDE, LH

main65304-0B010iKF60..LHD199902-200210

65307AFRAME SUB-ASSY, FLOOR, REAR

main65307-0B010iKF60..LHD199902-200210

6553REAR BODY GUARD FRAME & TAIL GATE

→ Go to FIG 65-53

66203PLATE SUB-ASSY, REAR FENDER, RH

main66203-0B010iKF60..LHD199902-200210

66204PLATE SUB-ASSY, REAR FENDER, LH

main66204-0B010iKF60..LHD199902-200210

66210AFENDER ASSY, REAR NO.1 RH

main66205-0B010iKF60..LHD199902-200210

66220AFENDER ASSY, REAR NO.1 LH

main66206-0B010iKF60..LHD199902-200210

66235STAY, REAR FENDER, NO.1

main66235-Y0010iKF60..LHD199902-200210

main66235-YZC01×2iKF60,LF60..FD200208-200612

66236ASTAY, REAR FENDER, NO.2

main66236-Y0010iKF60..LHD200210-200707

main66236-YZC01×2iKF60,LF60..FD200208-200612

66237BRACKET, REAR FENDER, NO.1

main66237-0B010iKF60..LHD199902-200210

66238ABRACKET, REAR FENDER, NO.2

main66238-0B010iKF60..LHD199902-200210

66241BBAFFLE, RUBBER

main66241-Y0020×2iKF60..LHD199902-200210

66271STEP, REAR BODY

main66271-95A01iKF60..LHD199902-200210

66311HHOOK, ROPE

main66311-Y0010×10iKF60..LHD199902-200210

66321BUMPER, GATE RUBBER

main66321-90P50×6iKF60..LHD199902-200210

66409BRACKET SUB-ASSY, LICENSE HANGER

main66409-Y0010iKF60..LHD199902-200210

9008915001

main90089-15001

9010908030

main90109-08030

9015960061

main90159-60061

9017908025

main90179-08025

9163140618

main91631-40618

9165140618

main91651-40618

9165140822

main91651-40822

9165160816

main91651-60816

9165160822

main91651-60822

9413060600

main94130-60600

29 parts on this diagram · 4 diagrams in section
