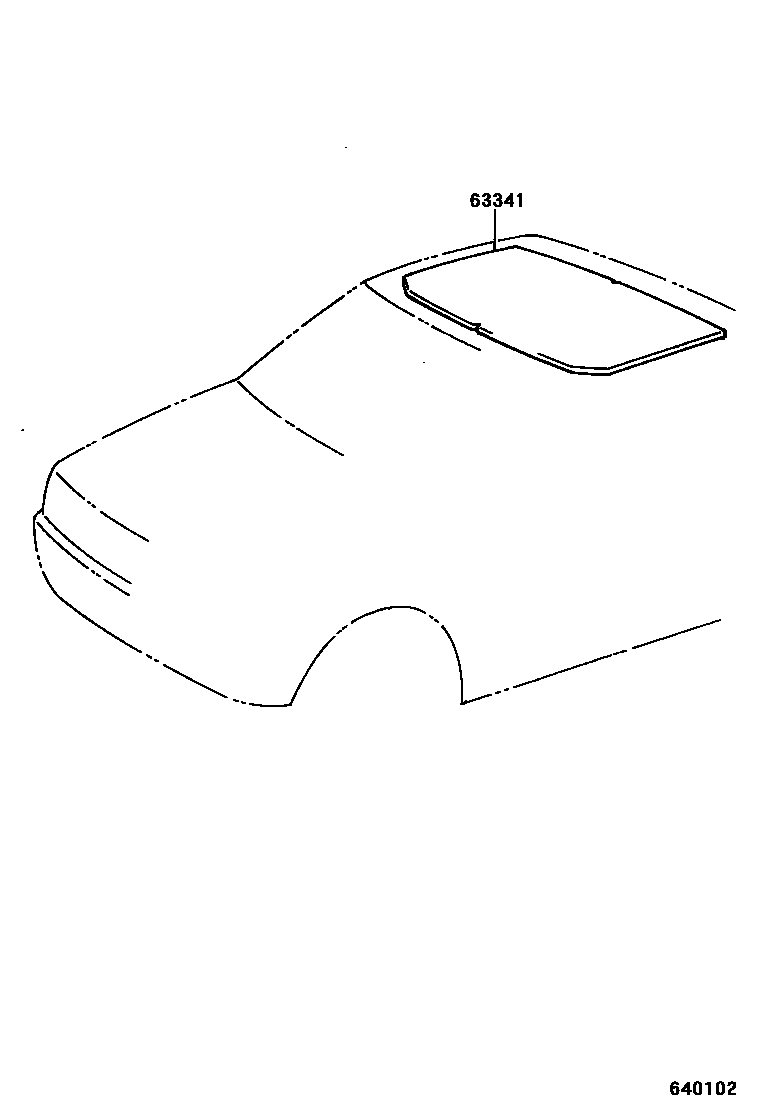

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0006 1 0009 1 0011 1

63341PAD, ROOF SILENCER, NO.1

main63341-0B010-B0iKF60,LF60..RHD199612-200208

LT. BLUISH GRAY,TRIM1#

main63341-0B010-B1iKF60..FD200409-200612

LT. BLUISH GRAY,TRIM1#

main63341-0B020iKF7#,8#,LF7#,80,82,RZF71,81..CBU..GEN199612-200208

main63341-0B040-B0iKF60..LHD199902-200210

LT. BLUISH GRAY,TRIM1#

main63341-0B040-B1iKF60..LHD200210-200707

LT. BLUISH GRAY,TRIM1#

main63341-0B050iKF82,LF82,RZF82..PHL200211-200501

main63341-0B060iKF80,RZF84,85..TAIW200210-200707

main63341-0B090-B1iLF61,RZF61200306-200503

LT. BLUISH GRAY,TRIM1#

main63341-0B100iLF81,85,RZF80,81,85..SA200306-200503

main63341-38020iKF80,LF80..MA199804-200212

1 parts on this diagram · 5 diagrams in section
