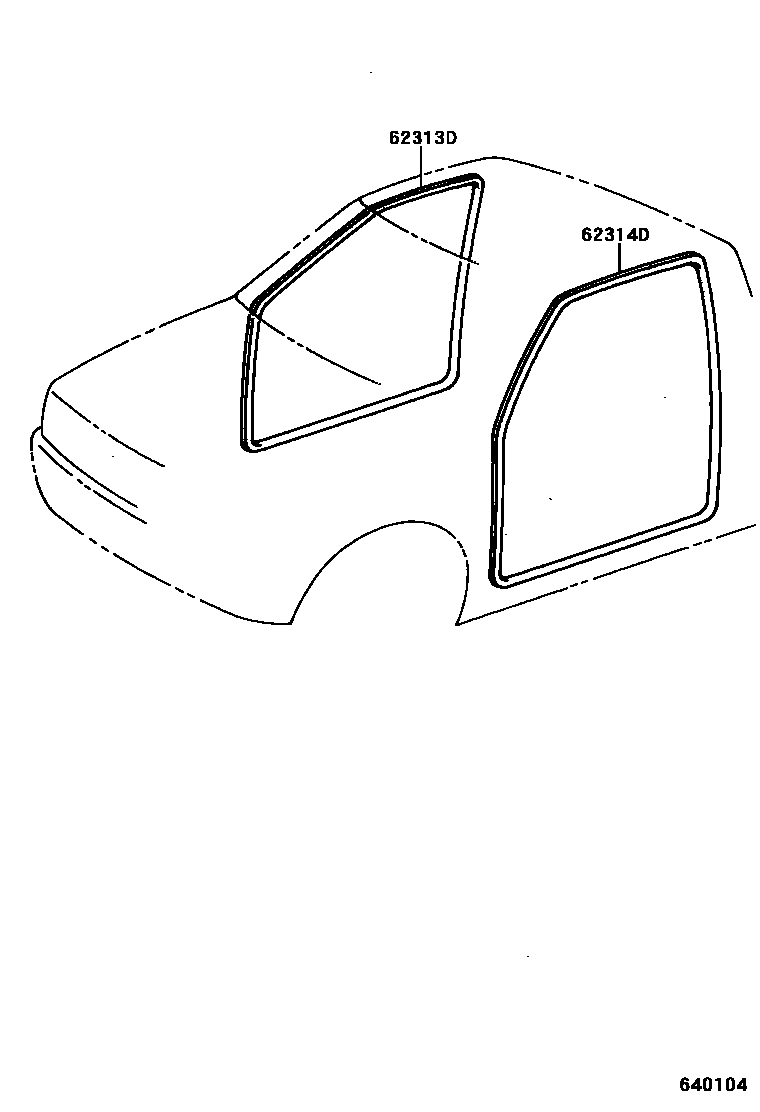

INSIDE TRIM BOARD

0001 1 0002 1 0004 1

62313DTRIM, FRONT DOOR OPENING, RH

main62313-0B010iKF72,LF82..IV7200102-200208

main62313-0B010-B0iKF60..FD200208-200406

BLUISH GRAY,TRIM1#

main62313-0B010-E0iKF72,82,LF82,RZF81..GL..RHD200208-200406

FAWN,TRIM4#

main62313-0B020-B0iKF80,LF80..MA199804-200212

BLUISH GRAY,TRIM1#

main62313-0B020-E0iKF80..MA200212-200503

FAWN,TRIM4#

main62313-0B030-B0iKF82,LF82..(DLX,STD)..PHL200211-200501

BLUISH GRAY,TRIM1#

main62313-0B030-E0iKF82,LF82,RZF82..GL..PHL200211-200501

FAWN,TRIM4#

main62313-0B040-B0iKF60,80,LF61,81,85,RZF80,84,85,YF60,80..SA,TAIW199902-200306

BLUISH GRAY,TRIM1#

main62313-0B040-E0iKF80,LF85,RZF80,84,85..GL..(SA,TAIW)200210-200707

FAWN,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-0B010iKF72,LF82..IV7200102-200208

main62313-0B010-B0iLF60;KF60,7#,8#,LF80,82..(LUB,SD)..(DLX,STD)..RHD200208-200612

BLUISH GRAY,TRIM1#

main62313-0B010-E0iKF72,82,LF82,RZF81..GL..RHD200208-200406

FAWN,TRIM4#

main62313-0B020-B0iKF80,LF80..MA199804-200212

BLUISH GRAY,TRIM1#

main62313-0B020-E0iKF80..MA200212-200503

FAWN,TRIM4#

main62313-0B030-B0iKF82,LF82..(DLX,STD)..PHL200211-200501

BLUISH GRAY,TRIM1#

main62313-0B030-E0iKF82,LF82,RZF82..GL..PHL200211-200501

FAWN,TRIM4#

main62313-0B040-B0iKF60,80,LF61,81,85,RZF80,84,85,YF60,80..SA,TAIW199902-200306

BLUISH GRAY,TRIM1#

main62313-0B040-E0iKF80,LF85,RZF80,84,85..GL..(SA,TAIW)200210-200707

FAWN,TRIM4#

2 parts on this diagram · 3 diagrams in section
