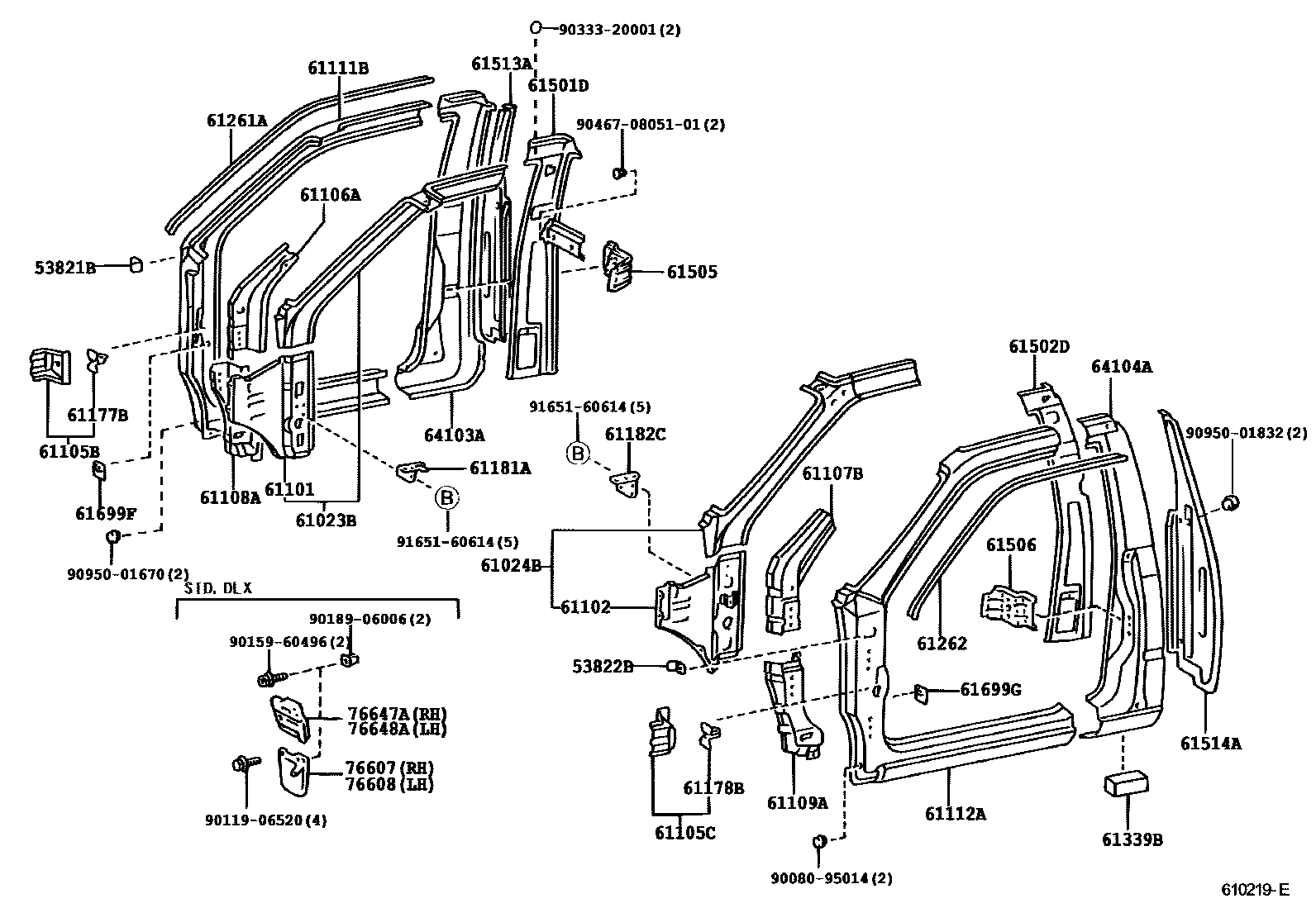

SIDE MEMBER

0001 1 0002 1RH SIDE 0004 1LH SIDE 0006 1 0007 1

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0B010iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)200208-200612

53822BBRACKET, FRONT FENDER, REAR LH

main53821-0B010iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)200208-200612

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0B010iKF60,LF60;KF70,80,LF70,80..IV7199612-199712

main61023-0B020iKF80,LF80..MA200208-200212

main61023-0B030iKF60..LHD200210-200707

main61023-0B040iKF80,LF80,RZF8#..LHD199810-200004

main61023-0B070iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

main61023-0B080iLF61,81,85,RZF61,81..LHD200306-200503

main61023-0B090iRZF81..LHD200102-200211

main61023-0B100iKF80,LF80..PHL200004-200211

main61023-0B110iKF80..MA200212-200503

W(ROOF RAIL)

main61023-0B120iRZF82200211-200501

W(ROOF RAIL)

main61023-0B130iKF82,LF82..GL..PHL200211-200501

main61023-0B150iKF7#,8#,LF80,82,RZF81..GEN200208-200406

main61023-0B160iKF80..MA200212-200503

main61023-0B170iKF82,LF82..PHL200211-200501

W(ROOF RAIL)

main61023-0B180iRZF82200211-200501

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-0B010iKF60,LF60..RHD199712-200208

main61024-0B020iLF80..MA;KF7#,8#,RZF71,81..RHD200011-200103

main61024-0B030iKF60..LHD200210-200707

main61024-0B040iKF80,LF80,RZF81..PHL199810-200211

main61024-0B070iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

main61024-0B080iLF61,81,85,RZF61,81..LHD200306-200503

main61024-0B090iKF82..VN;KF80,RZF84,85..TAIW200210-200707

main61024-0B100iLF72,80,82..GEN200108-200208

main61024-0B110iKF80..MA200212-200503

W(ROOF RAIL)

main61024-0B140iKF7#,8#,RZF81..GEN200208-200406

main61024-0B150iLF80,82..GEN200208-200406

main61024-0B160iKF82,LF82,RZF82..GL..PHL200211-200501

W(ROOF RAIL)

main61024-0B170iKF80..MA200212-200503

main61024-0B180iKF82,LF82,RZF82..PHL200211-200501

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..RHD199612-200212

main61101-0B020iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

main61101-0B040iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

main61101-0B050iKF82,LF82,RZF82..PHL200211-200501

W(PILLAR ANTENNA)

main61101-0B060iKF82,LF82,RZF82..GL..PHL200211-200501

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-0B010iLF80..MA;KF60,7#,8#,LF60,RZF71,81..RHD200011-200103

main61102-0B020iKF82,LF82,RZF82..PHL200211-200501

main61102-0B040iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

main61102-0B050iKF82,LF81,85,RZF81..SHRW..LHD;KF60,80,LF61,RZF61..(SCB,SHRV)..LHD200210

main61102-0B070iLF80,82..GEN200208-200406

61105BREINFORCE SUB-ASSY, FRONT DOOR CHECK, RH

main61105-0B010iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80199612-200306

61105CREINFORCE SUB-ASSY, FRONT DOOR CHECK, LH

main61105-0B010iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80199612-200306

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-0B010iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)200208-200612

main61107-0B010iKF80,LF61,80,81,85,RZF80,85,YF60,80..PHL,SA199810-200102

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-0B010iLF60,80,RZF85..GEN,SA;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82..(LUB,T2)..(DLX,GL,STD)200208

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0B010iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80199612-200306

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-0B010iLF60,80,RZF85..GEN,SA;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82..(LUB,T2)..(DLX,GL,STD)200208

61111BPANEL, NO.1 SIDE, RH

main61111-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..RHD199612-200212

main61111-0B020iKF60,80,LF61,80,81,85,RZF80,81,84,85,YF60,80..PHL,SA,TAIW,VN199810-200306

61112APANEL, FRONT SIDE, OUTER LH

main61112-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..RHD199612-200212

main61112-0B020iKF60,80,LF61,RZF61..(SCB,SHRV)..(SA,TAIW);KF82,LF81,82,85,RZF80,81,82,85..(DLX,GL,STD)..(PHL,SA,VN)200210

61177BBRACKET, DOOR CHECK ARM

main61177-95D03iLF60,80,RZF85..GEN,SA;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82..(LUB,T2)..(DLX,GL,STD)200208

61178BBRACKET, DOOR CHECK ARM

main61177-95D03iKF70,80,LF70,80..CBU199612-199712

61181ABRACKET, INSTRUMENT SIDE, RH

main61035-0B010iKF60..FD200409-200612

main61035-0B020iKF72,8#,LF80,RZF71,81..(DLX,GL)..RHD200103-200212

main61181-0B020iKF60,80,LF61,RZF61..(SCB,SHRV)..LHD;KF82,LF81,82,85,RZF81,82..(DLX,GL,STD)..LHD200210

61182CBRACKET, INSTRUMENT SIDE, LH

main61036-0B010iKF60,80,LF61,RZF61..(SCB,SHRV)..LHD;KF82,LF81,82,85,RZF81,82..(DLX,GL,STD)..LHD200210

main61182-0B010iKF60..FD200208-200406

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-0B010iKF7#,8#,LF61,7#,8#,RZF80,85,YF60,80..GEN,MA,PHL,SA199712-200108

main61263-0B020iKF60,LF60199712-200210

main61263-0B040iKF80,LF61,81,85,RZF80,85,YF60,80..SA,VN200212-200306

W(MOULDING)

61262CHANNEL, ROOF DRIP, LH

main61264-0B010iLF80..GEN;KF7#,80..RHD;KF82,LF82..SRF200208-200503

main61264-0B020iKF60..RHD200208-200612

main61264-0B040iKF80,LF61,81,85,RZF80,85,YF60,80..SA,VN200212-200306

W(MOULDING)

61339BSEAL, CENTER BODY PILLAR, INNER NO.1

main61339-0B010×2iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN,VN200103-200302

main61339-0B020×2iKF80,LF80,RZF81..PHL200102-200211

main61339-0B030×2iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

main61339-0B050×2iKF80,LF80..MA200103-200212

main61339-38010×2iLF61,81,85,RZF61,80,81,85..SA200306-200503

61501DPILLAR SUB-ASSY, CAB REAR, RH

main61501-0B010iKF60,LF60;KF70,80,LF70,80..IV7199612-199712

61502DPILLAR SUB-ASSY, CAB REAR, LH

main61502-0B010iKF60,LF60;KF70,80,LF70,80..IV7199612-199712

61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

main61505-0B010iKF60,LF60;KF70,80,LF70,80..IV7199612-199712

61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

main61506-0B010iKF60,LF60199712-200210

61513APILLAR, REAR UPPER SIDE PANEL, RH

main61513-0B010iKF60,LF60;KF70,80,LF70,80..IV7199612-199712

61514APILLAR, REAR UPPER SIDE PANEL, LH

main61514-0B010iKF60,LF60;KF70,80,LF70,80..IV7199612-199712

61699FRETAINER, COURTESY SWITCH, RH

main61699-0B010iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80199612-200306

61699GRETAINER, COURTESY SWITCH, LH

main61699-0B010iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80199612-200306

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-0B020iKF60..LHD199902-200210

main64113-0B010iLF60;KF60..LHD200208

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-0B020iKF60..LHD199902-200210

main64114-0B010iKF60,LF60..RHD199712-200208

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-0B010iKF7#,8#,LF7#,80,82..(DLX,STD)..GEN199612-200208

TYPE B:REFER TO ILLUSTRATION

main76625-0B020iKF82..GL..RHD;KF80..DLX..(TAIW,VN);KF7#,80,LF80,82,RZF71,80,81..GL..(GEN,SA,TAIW,VN)199612-200306

TYPE A:REFER TO ILLUSTRATION

main76625-0B030iKF80,LF80..(DLX,GL)..PHL199810-200211

TYPE B:REFER TO ILLUSTRATION

main76625-0B040iKF80..MA200212-200503

TYPE A:REFER TO ILLUSTRATION

main76625-0B050iKF80..STD..LHD;LF61,81,RZF61,80,81..DLX,STD200210

TYPE B:REFER TO ILLUSTRATION

main76625-0B060iKF80,LF80,RZF81..GLX199810-200211

TYPE A:REFER TO ILLUSTRATION

main76625-0B080iLF85,RZF85..SA200210-200306

TYPE C:REFER TO ILLUSTRATION

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-0B010iKF7#,8#,LF7#,80,82..(DLX,STD)..GEN199612-200208

TYPE B:REFER TO ILLUSTRATION

main76626-0B020iKF82..DLX..VN;KF80..(DLX,GL)..TAIW;KF72,82,LF82,RZF80,81..GL..(GEN,SA,VN)200208

TYPE A:REFER TO ILLUSTRATION

main76626-0B030iKF80..MA;KF82,LF82..(DLX,STD)..PHL200211-200503

TYPE B:REFER TO ILLUSTRATION

main76626-0B040iKF80..MA200212-200503

TYPE A:REFER TO ILLUSTRATION

main76626-0B050iKF80..STD..LHD;LF61,81,RZF80,YF60,80..DLX,STD199902-200306

TYPE B:REFER TO ILLUSTRATION

main76626-0B060iKF80,LF80,RZF81..GLX199810-200211

TYPE A:REFER TO ILLUSTRATION

main76626-0B080iLF85,RZF84,85199911-200210

TYPE C:REFER TO ILLUSTRATION

76647ASUPPORT, REAR BODY MUDGUARD, RH

main76077-0B010iKF82..DLX..VN;KF80..(DLX,GL)..(MA,TAIW);KF72,82,LF82,85,RZF8#..GL200208

TYPE A OR TYPE C:REFER TO ILLUSTRATION

main76647-0B010iKF82,LF82..DLX..RHD;KF80,LF80..5F..(GL,STD)..(PHL,TAIW);KF7#,80,LF61,7#,80,81,RZF80,YF60,80..(DLX,STD)..(GEN,PHL,SA)199612-200212

TYPE B:REFER TO ILLUSTRATION

76648ASUPPORT, REAR BODY MUDGUARD, LH

main76078-0B010iKF82..GL..RHD;KF80,LF80..GLX;KF80..DLX..(MA,TAIW,VN);KF80,LF80,82..GL..(GEN,MA,TAIW,VN);KF7#,LF85,RZF71,80,81,84,85..GL,GLX199612-200306

TYPE A OR TYPE C:REFER TO ILLUSTRATION

main76648-0B010iKF80..RHD;KF80..STD..LHD;KF82,LF82..SRF..(DLX,STD);KF7#,LF61,80,81,RZF61,80,81..(DLX,STD)..(GEN,SA)200208

TYPE B:REFER TO ILLUSTRATION

9008095014

main90080-95014

9011906520

main90119-06520

9015960496

main90159-60496

9018906006

main90189-06006

9033320001

main90333-20001

904670805101

main90467-0805101

9095001670

main90950-01670

9095001832

main90950-01832

9165160614

main91651-60614

44 parts on this diagram · 5 diagrams in section
