FLOOR MAT & SILENCER PAD

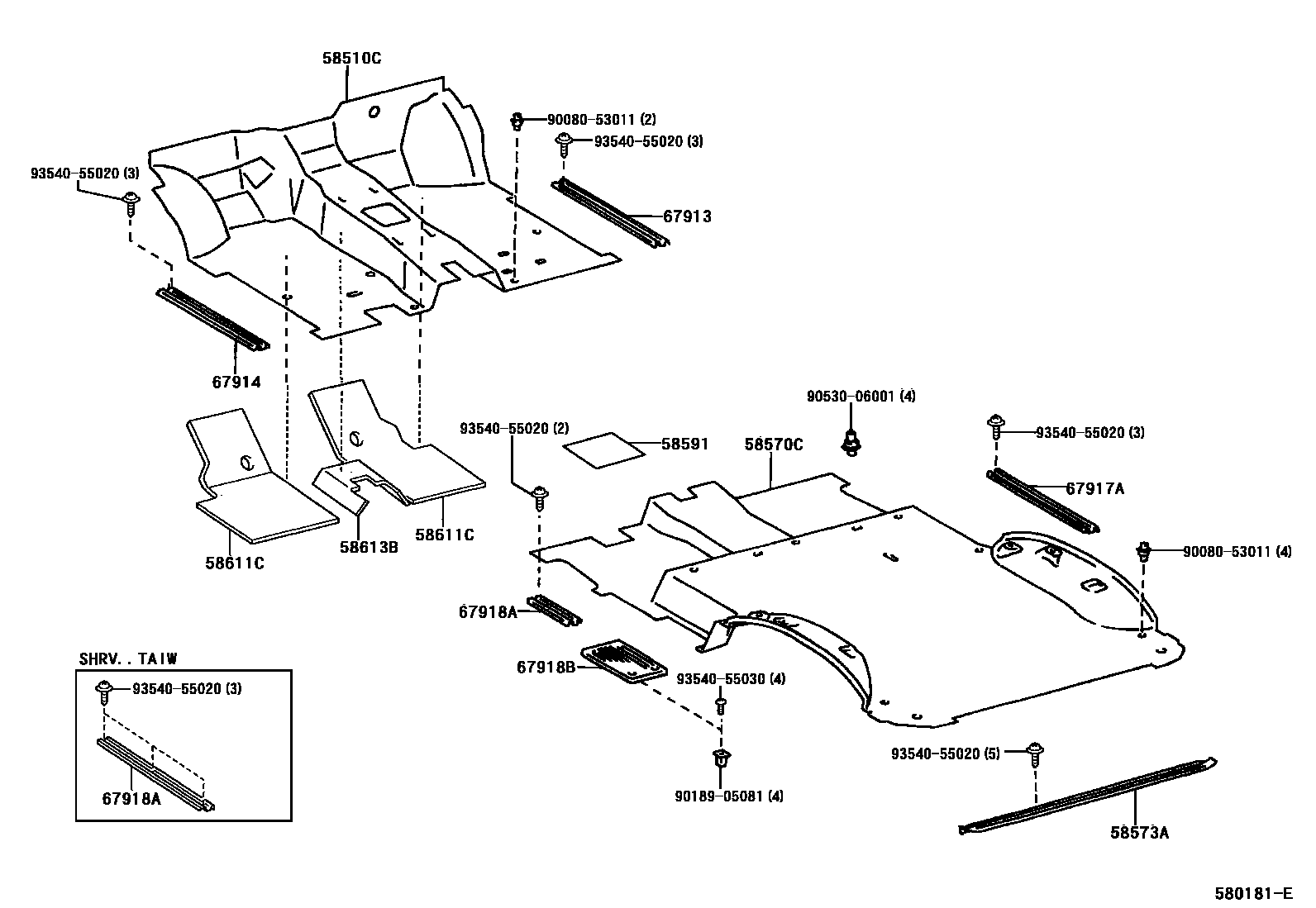

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-0B020-B0i199810-200211
BLUISH GRAY,TRIM1#
main58510-0B020-B1i200211-200501
BLUISH GRAY,TRIM1#
main58510-0B020-E0i200211-200501
FAWN,TRIM4#
main58510-0B030-B0i199612-200001
W(SINGLE AIR CONDITIONER),BLUISH GRAY,TRIM1#
main58510-0B040-B0i199801-200001
BLUISH GRAY,TRIM1#
main58510-0B050-B0i199612-200001
PAPUA NEW GUINEA SPEC,BLUISH GRAY,TRIM1#
main58510-0B060-B0i199612-200001
PAPUA NEW GUINEA SPEC,BLUISH GRAY,TRIM1#
main58510-0B080-B0i199810-200211
BLUISH GRAY,TRIM1#
main58510-0B080-E0i200211-200501
FAWN,TRIM4#
main58510-0B090-B0i200001-200208
BLUISH GRAY,TRIM1#
main58510-0B090-E0i200208-200406
FAWN,TRIM4#
main58510-0B100-B0i200001-200208
BLUISH GRAY,TRIM1#
main58510-0B110-B0i200001-200208
PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUISH GRAY,TRIM1#
main58510-0B110-B1i200105-200208
PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUISH GRAY,TRIM1#
main58510-0B110-E0i200208-200406
PAPUA NEW GUINEA SPEC OR FIJI SPEC,FAWN,TRIM4#
main58510-0B120-B0i199902-200210
BLUISH GRAY,TRIM1#
main58510-0B130-B0i199902-200210
BLUISH GRAY,TRIM1#
main58510-0B140-B0i200210-200707
BLUISH GRAY,TRIM1#
main58510-0B140-E0i200210-200707
FAWN,TRIM4#
main58510-0B150-B0i200001-200105
PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUISH GRAY,TRIM1#
main58510-0B160-B0i199804-200103
BLUISH GRAY,TRIM1#
main58510-0B200-B0i200306-200503
W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
main58510-0B210-E0i200306-200503
W(SEPARATE SEAT(1+1 TYPE)),DARK ORCHID,TRIM4#
main58510-0B220-E0i200306-200503
W(SEPARATE SEAT(1+2 TYPE)),DARK ORCHID,TRIM4#
main58510-0B250-B0i200306-200503
W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
main58510-0B260-B0i199909-200302
BLUISH GRAY,TRIM1#
main58510-0B280-B0i200103-200212
BLUISH GRAY,TRIM1#
main58510-0B280-E0i200212-200503
FAWN,TRIM4#
main58510-0B290-E0i200306-200503
DARK ORCHID,TRIM4#
main58510-0B300-B0i200306-200503
W(SEPARATE SEAT(1+1 TYPE)),BLUISH GRAY,TRIM1#
main58510-0B330-B0i200208-200406
BLUISH GRAY,TRIM1#
main58510-0B340-B0i200208-200406
PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUISH GRAY,TRIM1#
main58510-0B350-B0i200306-200503
W(SEPARATE SEAT(1+1 TYPE)),BLUISH GRAY,TRIM1#
58570CCARPET ASSY, REAR FLOOR
main58570-0B010-B0i199612-200001
BLUISH GRAY,TRIM1#
main58570-0B020-B0i199612-200001
BLUISH GRAY,TRIM1#
main58570-0B030-B0i199612-200001
BLUISH GRAY,TRIM1#
main58570-0B040-B0i199612-200001
BLUISH GRAY,TRIM1#
main58570-0B050-B0i199612-200001
PAPUA NEW GUINEA SPEC,BLUISH GRAY,TRIM1#
main58570-0B060-B0i199612-200001
PAPUA NEW GUINEA SPEC,BLUISH GRAY,TRIM1#
main58570-0B070-B0i199804-200212
BLUISH GRAY,TRIM1#
main58570-0B100-B0i199902-200210
BLUISH GRAY,TRIM1#
main58570-0B120-B0i199902-200210
BLUISH GRAY,TRIM1#
main58570-0B130-B0i199902-200210
BLUISH GRAY,TRIM1#
main58570-0B180-B1i200306-200503
BLUISH GRAY,TRIM40; W(OPPOSING TYPE THIRD SEAT),BLUISH GRAY,TRIM1#
main58570-0B180-E0i200306-200503
DARK ORCHID,TRIM40
main58570-0B210-B0i200306-200503
BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM40
main58570-0B210-E0i200306-200503
DARK ORCHID,TRIM40
main58570-0B250-B0i200001-200208
BLUISH GRAY,TRIM1#
main58570-0B250-B1i200105-200208
BLUISH GRAY,TRIM1#
main58570-0B260-B0i200001-200105
BLUISH GRAY,TRIM1#
main58570-0B270-B0i200001-200105
BLUISH GRAY,TRIM1#
main58570-0B280-B0i200001-200105
BLUISH GRAY,TRIM1#
main58570-0B290-B0i200001-200208
PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUISH GRAY,TRIM1#
main58570-0B290-B1i200105-200208
PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUISH GRAY,TRIM1#
main58570-0B300-B0i200001-200105
PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUISH GRAY,TRIM1#
main58570-0B310-B0i199909-200302
BLUISH GRAY,TRIM1#
main58570-0B410-E0i200208-200406
FAWN,TRIM4#
main58570-0B420-E0i200208-200406
PAPUA NEW GUINEA SPEC OR FIJI SPEC,FAWN,TRIM4#
main58570-0B430-E0i200212-200503
FAWN,TRIM4#
main58570-0B440-E0i200211-200501
FAWN,TRIM4#
main58570-0B450-B0i200210-200612
BLUISH GRAY,TRIM1#
main58570-0B450-E0i200210-200612
FAWN,TRIM4#
main58570-0B460-B0i200210-200707
W/O(REAR SEAT),BLUISH GRAY,TRIM1#
main58570-0B460-E0i200210-200707
W/O(REAR SEAT),FAWN,TRIM4#
main58570-0B470-B0i200306-200503
W(TRANSVERSE THIRD SEAT),BLUISH GRAY,TRIM1#; W(TRANSVERSE THIRD SEAT),BLUISH GRAY,TRIM40
main58570-0B470-E0i200306-200503
W(TRANSVERSE THIRD SEAT),DARK ORCHID,TRIM40
main58570-0B480-B0i200208-200406
BLUISH GRAY,TRIM1#
main58570-0B490-B0i200208-200406
BLUISH GRAY,TRIM1#
main58570-0B500-B0i200208-200406
PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUISH GRAY,TRIM1#
main58570-0B510-B1i200302-200512
BLUISH GRAY,TRIM1#
main58570-0B530-E0i200208-200406
FAWN,TRIM4#
main58570-0B540-B0i200210-200707
BLUISH GRAY,TRIM1#
main58570-0B550-B0i200211-200501
BLUISH GRAY,TRIM1#
58573APLATE, REAR FLOOR MAT SUPPORT
main58573-0B010-B0i200208-200406
BLUISH GRAY,TRIM1#
main58573-0B010-E0i200208-200503
FAWN,TRIM4#
main58573-0B020-B0i199810-200211
BLUISH GRAY,TRIM1#
main58573-0B020-E0i200211-200501
FAWN,TRIM4#
main58573-0B030i200210-200306
TRIM1#
main58573-0B030-B0i200210-200302
BLUISH GRAY,TRIM1#
main58573-0B030-E0i200210-200707
FAWN,TRIM4#
main58573-0B030-E1i200306-200503
ORCHID BROWN,TRIM40
58591COVER, FLOOR CARPET
main58591-20010i199911-200302
58611CSHEET, FRONT FLOOR SILENCER, RH
main58611-0B040×2i200210
58613BSHEET, FRONT FLOOR SILENCER, CENTER
main58613-0B060i199911-200210
67913PLATE, FRONT DOOR SCUFF, RH
main67913-0B010-B0i200208-200212
BLUISH GRAY,TRIM1#
main67913-0B010-E0i200208-200503
FAWN,TRIM4#
main67913-0B040-B0i199902-200302
BLUISH GRAY,TRIM1#
main67913-0B040-E0i200210-200707
FAWN,TRIM4#
main67913-0B050-B0i200306-200503
BLUISH GRAY,TRIM1#
main67913-0B050-E1i200306-200503
ORCHID BROWN,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67913-0B010-B0i200208-200406
BLUISH GRAY,TRIM1#
main67913-0B010-E0i200208-200503
FAWN,TRIM4#
main67913-0B040-B0i200210-200707
BLUISH GRAY,TRIM1#
main67913-0B040-E0i200210-200707
FAWN,TRIM4#
main67913-0B050-B0i200306-200503
BLUISH GRAY,TRIM1#
main67913-0B050-E1i200306-200503
ORCHID BROWN,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
main67913-0B010-B0i200208-200501
BLUISH GRAY,TRIM1#
main67913-0B010-E0i200208-200503
FAWN,TRIM4#
main67913-0B040-B0i200210-200707
BLUISH GRAY,TRIM1#
main67913-0B040-E0i200210-200707
FAWN,TRIM4#
main67913-0B050-B0i200306-200503
BLUISH GRAY,TRIM1#
main67913-0B050-E1i200306-200503
ORCHID BROWN,TRIM4#
main67917-0B010-B0i200208-200406
BLUISH GRAY,TRIM1#
main67917-0B010-E0i200208-200406
FAWN,TRIM4#
67918APLATE, REAR DOOR SCUFF, LH
main67913-0B040-B0i200210-200707
BLUISH GRAY,TRIM1#
main67913-0B040-E0i200210-200707
FAWN,TRIM4#
main67913-0B050-B0i200306-200503
BLUISH GRAY,TRIM1#
main67915-0B020-B0i200211-200501
BLUISH GRAY,TRIM1#
main67915-0B020-E0i200211-200501
FAWN,TRIM4#
main67917-0B040-B0i200210-200612
BLUISH GRAY,TRIM1#
main67917-0B040-E0i200210-200612
FAWN,TRIM4#
main67918-0B010-B0i200208-200212
BLUISH GRAY,TRIM1#
main67918-0B010-E0i200208-200503
FAWN,TRIM4#
main67918-0B020-B0i200306-200503
BLUISH GRAY,TRIM1#
main67918-0B020-E1i200306-200503
ORCHID BROWN,TRIM4#
67918BPLATE, REAR DOOR SCUFF, LH
main67915-0B010-B0i200208-200406
BLUISH GRAY,TRIM1#
main67915-0B010-E0i200208-200503
FAWN,TRIM4#
main67915-0B030-B0i200210-200512
BLUISH GRAY,TRIM1#
main67915-0B030-E0i200210-200612
FAWN,TRIM4#
main67915-0B040-B0i200306-200503
BLUISH GRAY,TRIM1#
main67915-0B040-E0i200306-200503
FAWN,TRIM4#
main67918-0B010-B0i200211-200501
BLUISH GRAY,TRIM1#
main67918-0B010-E0i200211-200501
FAWN,TRIM4#
9008053011
main90080-53011
9018905081
main90189-05081
9053006001
main90530-06001
9354055020
main93540-55020
9354055030
main93540-55030

16 parts on this diagram · 3 diagrams in section
