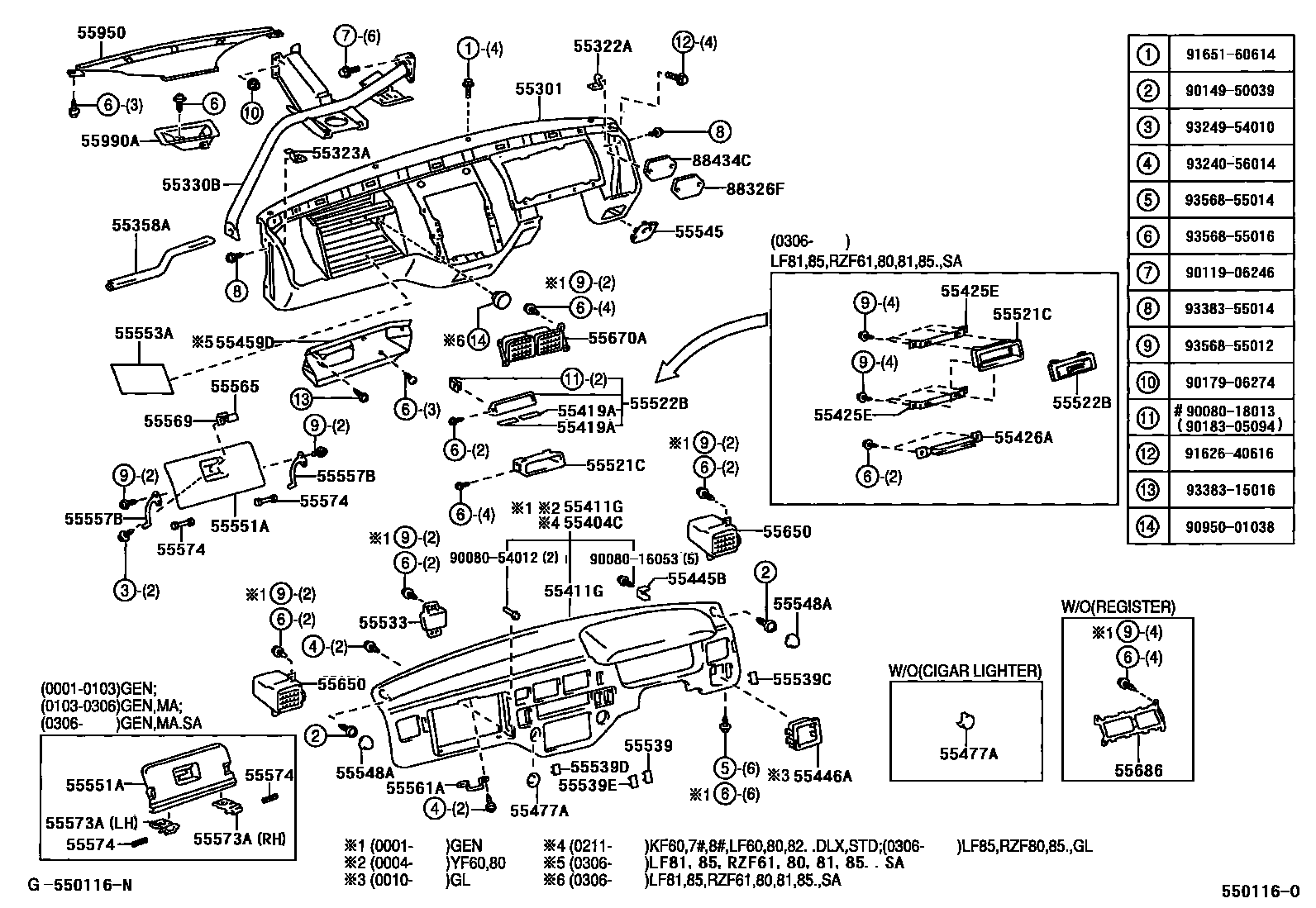

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0005 1 0006 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-0B010-B0iKF60,70,80,LF60,70,80..GEN199612-200001

BLUISH GRAY,TRIM1#

main55300-0B020-B0iKF60,80..STD..LHD;KF82,LF82..(DLX,STD)..PHL200210-200707

BLUISH GRAY,TRIM1#

main55300-0B030-B0iKF80,RZF85..GL..TAIW199902-200210

W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#

main55300-0B040-B0iKF82..DLX..VN200302-200601

BLUISH GRAY,TRIM1#

main55300-0B050-B0iKF80,LF80..MA199804-200103

BLUISH GRAY,TRIM1#

main55300-0B060-B0iLF80..RHD;KF60,70,80,LF60,72,82..CBU..GEN200103-200208

BLUISH GRAY,TRIM1#

main55300-0B061-B0iLF60;KF60,70,80,LF80,82..(LUB,SD)..(DLX,STD)..RHD200208-200612

BLUISH GRAY,TRIM1#

main55300-0B070iKF72,82..4FC;KF80,RZF71,81..GL..RHD200103-200208

main55300-0B091-B0iRZF61..RHD200306-200503

BLUISH GRAY,TRIM1#

main55300-0B100-B0iRZF81..LHD200102-200211

BLUISH GRAY,TRIM1#

main55300-0B110iKF72,82..5F200102-200208

main55300-0B111-B0iKF72,82..DLX..RHD200208-200406

BLUISH GRAY,TRIM1#

main55300-0B121-E0iLF82..GL..RHD200208-200406

FAWN,TRIM4#

main55300-0B131-E0iKF72,82..5F..GL..RHD200208-200406

FAWN,TRIM4#

main55300-0B141-B0iLF81,RZF80,81..DLX..RHD200306-200503

BLUISH GRAY,TRIM1#

main55300-0B141-E0iLF85,RZF80,85..GL..RHD200306-200503

FAWN,TRIM4#

main55300-0B150-B0iKF80,RZF84,85..GL..TAIW200210-200707

BLUISH GRAY,TRIM1#

main55300-0B150-E0iKF80,RZF84,85..GL..TAIW200210-200707

FAWN,TRIM4#

main55300-0B161-E0iKF82..4FC..RHD;KF80,RZF81..GL..RHD200208-200503

FAWN,TRIM4#

main55300-0B170-B0iKF82..GL..VN200302-200601

BLUISH GRAY,TRIM1#

main55300-0B170-E0iKF82,LF82..GL..PHL200211-200501

FAWN,TRIM4#

main55300-0B180-E0iRZF82200211-200501

FAWN,TRIM4#

main55300-0B190-B0iKF80,RZF85..GL..TAIW200210-200707

W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#

main55300-0B190-E0iKF80,RZF85..GL..TAIW200210-200707

W(*80,DRIVER SIDE & PASSENGER SIDE),FAWN,TRIM4#

main55300-0B200-B0iLF61,RZF61..LHD200306-200503

BLUISH GRAY,TRIM1#

main55300-0B901iKF60,80,LF80,RZF81..(GLX,STD)..LHD200102-200210

TAIWAN SPEC

main55300-0B902iKF80..VN200210-200302

TAIWAN SPEC

main55300-0B903iKF80..DLX..TAIW200210-200211

main55300-0B904iKF80,RZF84,85..GL..TAIW200210-200707

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

main55322-0B020iKF60,80,LF80,RZF81,84,85,YF60,80..LHD199810-200306

main55322-0B030iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55304-0B070iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

main55323-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

main55323-0B020iKF60,80,LF61,RZF61..(SCB,SHRV)..LHD;KF82,LF81,82,85,RZF81,82..(DLX,GL,STD)..LHD200210

main55323-0B030iKF60,7#,8#,LF60,72,80,82,RZF71,81..RHD200103-200202

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0B010iKF60..FD200208-200406

main55330-0B020iRZF61..RHD;KF72,8#,RZF80,81,85..(DLX,GL)..RHD200208-200503

main55330-0B030iLF61,81,85,YF60,80..LHD200004-200306

main55330-0B060iLF81,85..RHD200306-200503

main55330-0B080iKF60,80,LF80,RZF84,85..LHD200004-200210

main55330-0B090iRZF81..LHD200102-200210

55358APROTECTOR, EDGE, NO.2

main55358-0B010iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN200001-200103

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-0B110-B0iLF60;KF60,7#,8#,LF80,82..(LUB,SD)..(DLX,STD)..RHD200211-200612

BLUISH GRAY,TRIM1#

main55404-0B120-E0iKF72,82,LF82,RZF81..GL..RHD200211-200406

ORCHID BROWN,TRIM4#

main55404-0B130-E0iLF85,RZF80,85..GL..RHD200306-200503

ORCHID BROWN,TRIM4#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55404-0B050iKF60,7#,8#,LF60,72,80,82..RHD200103-200208

main55404-0B051iKF60,7#,8#,LF60,80,82..(DLX,STD)..RHD200208-200211

main55404-0B051-B0iKF60..FD200409-200612

BLUISH GRAY,TRIM1#

main55404-0B051-E0iKF80..MA200212-200503

ORCHID BROWN,TRIM4#

main55404-0B070iRZF71,81..RHD200010-200208

main55404-0B071iKF72,82,LF82,RZF81..GL200208-200211

main55404-0B071-E0iKF72,8#,LF82,RZF81..GL..RHD200211-200503

W(ELECTRIC RETRACTABLE DOOR MIRROR),ORCHID BROWN,TRIM4#

main55404-0B080-B0iYF60,80..RHD200004-200306

BLUISH GRAY,TRIM1#

main55404-0B081-B0iLF81,RZF61,80,81..(DLX,STD)..RHD200306-200503

BLUISH GRAY,TRIM1#

main55411-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

main55411-0B030iKF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD199810-200210

main55411-0B031-B0iKF82..VN;KF82,LF82..(DLX,STD)..PHL;KF60,80,LF61,81,RZF61,81..(DLX,STD)..(SA,TAIW)..LHD200210-200707

BLUISH GRAY,TRIM1#

main55411-0B031-E0iKF82,LF82..GL..PHL;LF81,85,RZF81,82..LHD200211-200503

ORCHID BROWN,TRIM4#

main55411-0B040iKF80,RZF85..GL..TAIW199902-200210

W(*80,DRIVER SIDE & PASSENGER SIDE)

main55411-0B100-B0iKF82..GL..VN200408-200601

W(WOOD PANEL),BLUISH GRAY,TRIM1#

main55411-0B100-E1iKF80,RZF84,85..GL..TAIW200210-200707

ORCHID BROWN,TRIM4#

main55411-0B120-B0iKF80,RZF85..GL..TAIW200210-200707

W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#

main55411-0B120-E0iKF80,RZF85..GL..TAIW200210-200707

W(*80,DRIVER SIDE & PASSENGER SIDE),ORCHID BROWN,TRIM4#

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-14020×2iKF70,80,LF80..SRF..(4FC,5F)..(GLX,STD);KF80,LF80,81,YF60,80..(DLX,GL,STD)..(PHL,SA)..LHD;KF60,72,82,LF6#,72,82,RZF71,81..(4FC,5F)..(GEN,PHL,SA)199810-200103

55425EBRACKET, RADIO TUNER FINISH PANEL, UPPER RH

main55425-0B020×2iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

55426ABRACKET, CLUSTER FINISH PANEL, NO.1

main55426-0B010iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-0B020×3iKF70,80..4F;KF80..STD..LHD;LF81,RZF85,YF60,80..LHD;KF70,80,LF80..DLX,GL,GLX;KF60,LF60,80,RZF84..4F,4FC;KF60,LF61,70,RZF81..(LUB,T2)..(DLX,GLX,STD)199612-200103

55446ABASE, SWITCH HOLE, NO.1

main55446-0B010iRZF71,81..RHD200010-200208

main55446-0B011-E0iKF72,82,LF82,RZF81..GL..RHD200208-200406

ORCHID BROWN,TRIM4#

55459DCOVER, INSTRUMENT, LOWER LH

main55459-0B010iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-33010iKF80..STD..LHD;KF70,80,LF80,RZF81..DLX,GL,GLX;KF60,72,82,LF61,7#,81,82,85,RZF71,80,84,85,YF60,80..(LUB,T2)..(GEN,SA,TAIW)199612-200306

main55477-95J00iKF60,70,80,LF60,80..STD..RHD199612-200208

main55477-95J00-C0iKF60..SD200406-200612

BLACK,TRIM1#

55521CCOVER, STEREO OPENING

main55521-0B010iKF60..FD200409-200612

main55521-0B020iKF80,LF80,RZF81..PHL199810-200211

main55521-0B030iKF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD199902-200111

main55521-0B031iKF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD200111-200306

main55522-0B040iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

55522BCOVER, RADIO TUNER OPENING

main55522-02110iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

main55522-32010iKF60..FD200208-200406

55533COVER, AUTO CLOCK HOLE

main55533-38010iKF80..STD..LHD;KF80..(DLX,STD)..(GEN,PHL);KF60,7#,82,LF6#,7#,80,82,YF60..DLX,STD199612-200111

main55533-38011iKF60..SD200208-200612

55539COVER, SPARE SWITCH HOLE

main55539-0B010-B0iKF60,80..STD..LHD199909-200210

BLUISH GRAY,TRIM1#

main55539-0B010-C0iKF82..DLX..VN;KF60,80,LF61,81,RZF61,81..(DLX,STD)..(SA,TAIW)..LHD200210-200707

BLACK,TRIM1#

main55539-32010-B0iLF81,85,RZF80,85..RHD200208-200306

BLUISH GRAY,TRIM1#

main55539-32010-C0iYF60..LHD;KF60,7#,8#,LF6#,72,80,82,RZF71,81..(DLX,GL,STD)..CBU..(GEN,MA,PHL,SA)200102-200103

BLACK,TRIM1#

55539CCOVER, SPARE SWITCH HOLE

main55539-0B010-B0iKF80..DLX..VN200210-200302

BLUISH GRAY,TRIM1#

main55539-0B010-C0iLF85..LHD200306-200503

BLACK,TRIM4#

main55539-0B020-B0iKF80,LF80..MA200103-200105

BLUISH GRAY,TRIM1#

main55539-32010-B0iYF60..RHD200208-200306

BLUISH GRAY,TRIM1#

main55539-32010-C0iKF80..GL..PHL;LF81,YF60,80..LHD;LF80..(DLX,GL,STD)..(GEN,PHL);KF60,7#,8#,LF6#,7#,82..(DLX,STD)..(GEN,MA,PHL,SA)199612-200102

BLACK,TRIM1#

55539DCOVER, SPARE SWITCH HOLE

main55539-0B010-B0iKF80..VN200210-200302

BLUISH GRAY,TRIM1#

main55539-0B010-C0iKF82,LF82..(DLX,STD)..PHL;KF60,80,LF61,RZF61..STD..LHD200210-200707

BLACK,TRIM1#

main55539-32010-B0iYF60..RHD200004-200306

BLUISH GRAY,TRIM1#

main55539-32010-C0iLF61,70;YF60..LHD;KF60,70,80,LF60,80..4F;KF70,80,LF80..SRF..(DLX,GL,GLX)199612-200102

BLACK,TRIM1#

55539ECOVER, SPARE SWITCH HOLE

main55539-0B010-B0iKF80..DLX..VN;KF60,80..5F..(GL,STD)..(TAIW,VN)199902-200210

BLUISH GRAY,TRIM1#

main55539-0B010-C0iKF80..GL200507-200707

BLACK,TRIM1#,4#

main55539-0B020-B0iKF80,LF80..MA200103-200105

BLUISH GRAY,TRIM1#

main55539-32010-C0iKF80,LF80,YF60..(GL,STD)..(PHL,SA)..LHD;KF60,7#,8#,LF6#,7#,80,82..(DLX,GLX,STD)..(GEN,PHL,SA)199612-200102

BLACK,TRIM1#

55545COVER, FUSE BOX OPENING

main55540-0B010iKF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD199902-200111

main55540-0B011-B0iKF82..VN;KF60,80,LF61,81,RZF61,81,84,85..(SA,TAIW)..LHD200210-200707

BLUISH GRAY,TRIM1#

main55540-0B011-E0iKF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD200111-200210

FAWN,TRIM4#

main55540-38010-B0iKF60..FD200208-200406

BLUISH GRAY,TRIM1#

main55540-38010-E0iLF81,RZF80,81..RHD;KF72,8#,LF82,85,RZF85..GL..RHD200208-200503

FAWN,TRIM4#

main55540-38020-B0iKF80,LF80,RZF81..PHL199810-200211

BLUISH GRAY,TRIM1#

main55540-38020-E0iKF82,LF82,RZF82..GL..PHL200211-200501

FAWN,TRIM4#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

RH

main55548-0B020iKF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD199810-200111

RH

main55548-0B021iKF80,LF61,80,81,85,RZF81,YF60,80..(PHL,SA,VN)..LHD200210-200306

RH

main55548-0B022-B0iKF82..VN;KF82,LF82..(DLX,STD)..PHL;KF60,80,LF61,81,RZF61,81,84,85..(SA,TAIW)..LHD200210-200707

BLUISH GRAY,TRIM1#,RH

main55548-0B022-E0iKF80..GL..TAIW;KF82,LF82..GL..PHL;LF81,85,RZF81,82,84,85..(DLX,GL)..LHD200210-200707

ORCHID BROWN,TRIM4#,RH

main55549-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

LH

main55549-0B020iKF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD199810-200111

LH

main55549-0B021iKF80,LF61,80,81,85,RZF81,YF60,80..(PHL,SA,VN)..LHD200210-200306

LH

main55549-0B022-B0iKF82..VN;KF82,LF82..(DLX,STD)..PHL;KF60,80,LF61,81,RZF61,81,84,85..(SA,TAIW)..LHD200210-200707

BLUISH GRAY,TRIM1#,LH

main55549-0B022-E0iKF80..GL..TAIW;KF82,LF82..GL..PHL;LF81,85,RZF81,82,84,85..(DLX,GL)..LHD200210-200707

ORCHID BROWN,TRIM4#,LH

55551ADOOR, GLOVE COMPARTMENT, OUTER

main55551-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

main55551-0B020iKF80,LF80,RZF81..PHL199810-200211

main55551-0B021-B0iKF82,LF82..(DLX,STD)..PHL200211-200501

BLUISH GRAY,TRIM1#

main55551-0B021-E0iKF82,LF82,RZF82..GL..PHL200211-200501

ORCHID BROWN,TRIM4#

main55551-0B030iKF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD199902-200111

main55551-0B031iKF60,80,LF61,81,85,RZF84,85,YF60,80..(SA,TAIW,VN)..LHD200111-200210

main55551-0B032-B0iKF82..VN;KF60,80,LF61,81,85,RZF61,81,84,85..(SA,TAIW)..LHD200210-200707

BLUISH GRAY,TRIM1#

main55551-0B032-E0iKF80..GL..TAIW;LF81,85,RZF81,84,85..(SA,TAIW)..LHD200210-200707

ORCHID BROWN,TRIM4#

main55551-0B050iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN200001-200103

main55551-0B050-B0iKF60..SD200406-200612

BLUISH GRAY,TRIM1#

55553APAD, GLOVE COMPARTMENT DOOR

main55553-0B010iKF80..MA200212-200503

main55553-0B020iLF60;KF60,7#,8#,LF80,82,RZF81..(LUB,SD)..GEN200208-200612

main55553-YG010iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-0B010×2iKF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN199612-200208

main55557-38010×2iKF60,80,LF61,80,81,85,RZF80,81,84,85,YF60,80..MA,PHL,SA,TAIW,VN199804-200306

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-0B030iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN200205-200208

main55561-38010iKF60,80,LF61,80,81,85,RZF80,81,84,85,YF60,80..MA,PHL,SA,TAIW,VN200205-200306

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22020iKF72,LF82..IV7200102-200208

main55565-22020-B2iLF81,85,RZF80,85,YF60,80..RHD200004-200210

BLUISH GRAY,TRIM1#

main55565-22020-C0iLF81,85,RZF85,YF60,80..LHD;KF60,80,LF61,80,RZF81,84..MA,PHL,SA,TAIW,VN200208-200210

BLACK,TRIM1#

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22030-B2iLF81,85,RZF80,85,YF60,80..RHD200004-200210

BLUISH GRAY,TRIM1#

main55569-22030-C0iKF60..FD200409-200707

BLACK,TRIM1#

55573AHINGE, GLOVE COMPARTMENT DOOR

main55572-0B010iKF60,7#,8#,LF60,72,80,82,RZF71,81..RHD200103-200212

RH

main55573-0B010iKF60..FD200409-200612

LH

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-38010×2iKF70,80..4F;KF80..STD..LHD;LF81,RZF85,YF60,80..LHD;KF70,80,LF80..DLX,GL,GLX;KF60,LF60,80,RZF84..4F,4FC;KF60,LF61,70,RZF81..(LUB,T2)..(DLX,GLX,STD)199612-200103

main90080-25026×2iKF60..FD200208-200406

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-0B010×2iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

main55650-0B020-C0iKF60,80..(DLX,STD)..TAIW;KF82,LF82..(DLX,STD)..LHD; KF80,LF61,80,81,85,RZF81,YF60,80..(PHL,SA,VN)..LHD; KF80,RZF84,85..GL..TAIW200210-200301

BLACK,TRIM1#; BLACK,TRIM1#,4#

main55650-0B021-B0iKF82..VN;KF82,LF82..(DLX,STD)..PHL;KF60,80,LF61,81,RZF61,81,84,85..(SA,TAIW)..LHD200301-200707

BLUISH GRAY,TRIM1#

main55650-0B021-E0iKF8#,LF82,85,RZF82,84,85..GL..(PHL,SA,TAIW)..LHD200301-200707

ORCHID BROWN,TRIM4#

main55650-0B040×2iKF60..FD200409-200612

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-0B020-C0iKF60,80..(DLX,STD)..TAIW;KF82,LF82..(DLX,STD)..LHD; KF80,LF61,80,81,85,RZF81,YF60,80..(PHL,SA,VN)..LHD; KF80,RZF84,85..GL..TAIW200210-200301

BLACK,TRIM1#; BLACK,TRIM1#,4#

main55670-0B021-B0iKF82..VN;KF82,LF82..(DLX,STD)..PHL;KF60,80,LF61,81,RZF61,81,84,85..(SA,TAIW)..LHD200301-200707

BLUISH GRAY,TRIM1#

main55670-0B021-E0iKF8#,LF82,85,RZF82,84,85..GL..(PHL,SA,TAIW)..LHD200301-200707

ORCHID BROWN,TRIM4#

55670AREGISTER ASSY, INSTRUMENT PANEL, CENTER

main55670-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..CBU..RHD199612-200103

main55670-0B040iLF60,80..GEN;KF60,7#,8#,LF81,82,85,RZF61,80,81,85..(LUB,SD)..RHD200208-200612

55686RETAINER, REGISTER BLADE

main55688-0B020iKF70,80,LF70,80..IV7;KF60,70,80,LF60,80..STD..RHD199612-200001

main55688-0B050iKF60..FD200208-200406

55950NOZZLE ASSY, DEFROSTER

main55950-0B010iKF60,80,LF61,80,81,85,RZF81,84,85,YF60,80..LHD199810-200306

main55950-38010iLF81,85,RZF61,80,81,85..SA..RHD200306-200503

55990ANOZZLE ASSY, DEFROSTER, LOWER

main55990-38010iLF81,85,RZF80,85,YF60,80..RHD200004-200306

88326FPLATE,COVER

main88326-0B010×2iKF60,70,80,LF60,80..STD..RHD199612-200208

88434CPLATE, PACKING

main88434-0B010×2iKF60,70,80,LF60,80..GEN200208-200612

9008016053

main90080-16053

9008018013

main90080-18013

9008054012

main90080-54012

9011906246

main90119-06246

9014950039

main90149-50039

9017906274

main90179-06274

9018305094

main90183-05094

9095001038

main90950-01038

9162640616

main91626-40616

9165160614

main91651-60614

9324056014

main93240-56014

9324954010

main93249-54010

9338315016

main93383-15016

9338355014

main93383-55014

9356855012

main93568-55012

9356855014

main93568-55014

9356855016

main93568-55016

56 parts on this diagram · 4 diagrams in section
