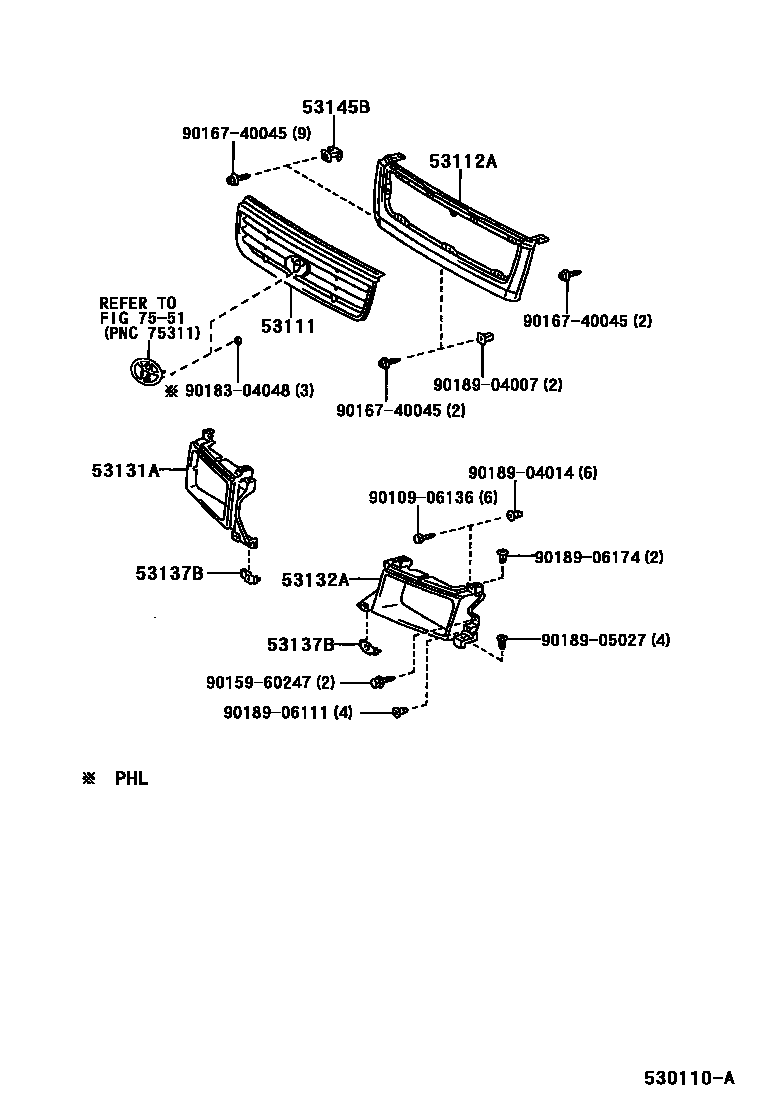

RADIATOR GRILLE

0001 1 0003 1 0005 1 0009 1 0011 1 0014 1

53111GRILLE, RADIATOR

main53101-0B030iKF80..GL..MA;KF80,LF80..GLX;LF80..(DLX,GL)..RHD;KF70,80,LF70..(DLX,GL)..GEN199612-200102

main53101-0B040iKF80,RZF84,85..(DLX,GL)..(TAIW,VN)199902-200210

main53101-0B050iKF60,80..STD..LHD199902-200210

main53101-38070iKF80,RZF81..GLX200102-200201

TYPE B:REFER TO ILLUSTRATION

main53111-0B070iLF61,RZF61200306-200503

TYPE A:REFER TO ILLUSTRATION

main53111-0B100iKF70,8#,LF80,82..SRF..STD200208-200411

TYPE B:REFER TO ILLUSTRATION

main53111-0B110iKF72,82,LF82..DLX..(GEN,VN)200208-200601

TYPE B:REFER TO ILLUSTRATION

main53111-0B120iKF82,LF82..GL..PHL200208-200411

TYPE B:REFER TO ILLUSTRATION

main53111-0B130iLF81,85,RZF80,81,85..GEN,SA200208-200503

TYPE B:REFER TO ILLUSTRATION

main53111-0B140iKF60,80..STD..LHD200210

TYPE B:REFER TO ILLUSTRATION

main53111-0B150iKF80..SHRV..(DLX,GL)200210

TYPE B:REFER TO ILLUSTRATION

main53111-0B170-A0iKF80..MA200212-200503

TYPE C:REFER TO ILLUSTRATION,CKD COLOR,000

main53111-0B170-B0iLF82,RZF81..GL..RHD200208-200406

TYPE C:REFER TO ILLUSTRATION,SILVER GR.SF.,1B9

main53111-0B170-B1iRZF82200211-200411

TYPE C:REFER TO ILLUSTRATION,SILVER ME.,1C0

main53111-0B170-C0iLF82,RZF81..GL..RHD200208-200406

TYPE C:REFER TO ILLUSTRATION,BLACK MC.,209

main53111-0B170-D1iRZF82200211-200411

TYPE C:REFER TO ILLUSTRATION,RED M.M.,3P1

main53111-0B170-E0iRZF82200211-200411

TYPE C:REFER TO ILLUSTRATION,BROWN ME.,4P3

main53111-0B170-F0iRZF82200211-200411

TYPE C:REFER TO ILLUSTRATION,CHAMPAGNE ME.,583

main53111-0B170-F1iLF82,RZF81..GL..RHD200208-200406

TYPE C:REFER TO ILLUSTRATION,CHAMPAGNE ME.,586

main53111-0B170-J0iLF82,RZF81..GL..RHD200208-200406

TYPE C:REFER TO ILLUSTRATION,DK.BLUE MC.,8K8

main53111-0B180-A1iKF82,LF82..GL..PHL200211-200411

TYPE A:REFER TO ILLUSTRATION,WHITE,060

main53111-0B180-C0iKF82,LF82..GL..PHL200211-200411

TYPE A:REFER TO ILLUSTRATION,BLACK MC.,209

main53111-0B180-D1iKF82,LF82..GL..PHL200211-200411

TYPE A:REFER TO ILLUSTRATION,RED M.M.,2JG ,3P1

main53111-0B180-G0iKF82,LF82..GL..PHL200211-200411

TYPE A:REFER TO ILLUSTRATION,DARK GREEN MC.,2JH ,6R4

main53111-0B180-J0iKF82,LF82..GL..PHL200211-200411

TYPE A:REFER TO ILLUSTRATION,DK.BLUE MC.,8N8

main53114-0B010iKF80..DLX..RHD200102-200103

main53114-0B020iKF60..FD200208-200406

TYPE A:REFER TO ILLUSTRATION

main53114-0B030iKF80,LF80..GL..PHL;KF72,82,LF72,82..DLX200102-200208

TYPE A:REFER TO ILLUSTRATION

main53114-0B040iKF80,LF80..GLX;KF72,82,LF82..GL200102-200208

TYPE A:REFER TO ILLUSTRATION

main53114-0B050iRZF71,81200010-200208

TYPE A:REFER TO ILLUSTRATION

53112AGRILLE, RADIATOR, LOWER

main53102-0B020iKF72,LF82..IV7200001-200208

main53102-0B020-A0iKF60..FD200409-200612

WHITE,060

main53102-0B020-A1iKF80,LF80..MA200103-200212

CKD COLOR,000

main53102-0B020-A2iKF80,LF80..PHL200102-200211

WHITE,048

main53102-0B020-B0iKF72,82,LF72,82..CBU200001-200010

DK.GRAY ME.,1B7

main53102-0B020-B2iKF7#,8#,LF72,80,82..CBU..GEN200001-200010

BL.SILVER ME.,181

main53102-0B020-B3iKF80,LF80..(GL,GLX)..PHL200102-200211

WARM SILVER ME.,1B1

main53102-0B020-B4iKF7#,8#,LF72,80,82..CBU..GEN200010-200208

GRAY ME.OP.,1A6

main53102-0B020-C0iKF60..FD200409-200612

BLACK,202

main53102-0B020-C2iRZF81..LHD200102-200211

BLACK ME,205

main53102-0B020-D0iKF60,LF60..RHD200001-200010

RED MC,3H4

main53102-0B020-D2iKF80,LF80..GLX; RZF81..LHD200102-200211

RED MC.,2HM; RED MC.,2HM ,3N2

main53102-0B020-E1iKF80..GLX; LF80..GLX200102-200203

BROWN ME.,2HN ,4P3; BROWN ME.,4P3

main53102-0B020-E2iKF72,82,LF82,RZF71,81..GL200010-200208

BEIGE ME.,4M9

main53102-0B020-F0iKF70,80,LF80..GEN200001-200010

PL.YELLOW OP,574

main53102-0B020-G0iKF7#,8#,LF72,80,82..(DLX,STD)..CBU..GEN; KF72,82,LF82..GL200001-200010

DK.GREEN M.M.,2GX ,6P3; DK.GREEN M.M.,6P3

main53102-0B020-G2iKF80,LF80,RZF81..GLX200102-200211

DK.GREEN MC.,2HP

main53102-0B020-H1iKF7#,8#,LF72,80,82,RZF71,81..CBU..GEN200001-200208

DEEP TEAL ME,752

main53102-0B020-J0iKF60,LF60..RHD200001-200010

BLUE,8A1

main53102-0B020-J2iKF72,82,LF72,82,RZF71,81..CBU..RHD200010-200208

PURPLISH BLUE M.M.,8K9

main53102-0B020-J3iKF7#,8#,LF72,80,82,RZF71,81..CBU..GEN200010-200208

DK.BLUE MC.,8K8

main53102-0B020-J4iKF80,LF80..DLX..PHL200102-200211

DK. BLUE,8E2

main53102-0B020-J5iKF80,LF80,RZF81..(GL,GLX)..PHL200102-200211

DK.BLUE MC.,8N8

main53102-0B900iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200102

53131ADOOR, HEADLAMP, RH

main53031-0B050iLF60;KF60,LF61,RZF61..LUB,SD200208-200612

main53131-0B010iKF80,LF80..DLX..PHL;KF60,70,80,LF60,80..4F199612-200102

53132ADOOR, HEADLAMP, LH

main53032-0B050iKF60,70,80,LF60,80..GEN200001-200102

main53132-0B010iKF80,LF80..DLX..PHL;KF60,70,80,LF60,80..4F199612-200102

53137BRETAINER, HEADLAMP DOOR

main53137-0B020×2iKF80,LF80..DLX..PHL;KF60,70,80,LF60,80..4F199612-200102

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-38010×2iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200102

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9010906136

main90109-06136

9015960247

main90159-60247

9016740045

main90167-40045

9018304048

main90183-04048

9018904007

main90189-04007

9018904014

main90189-04014

9018905027

main90189-05027

9018906111

main90189-06111

9018906174

main90189-06174

16 parts on this diagram · 6 diagrams in section
