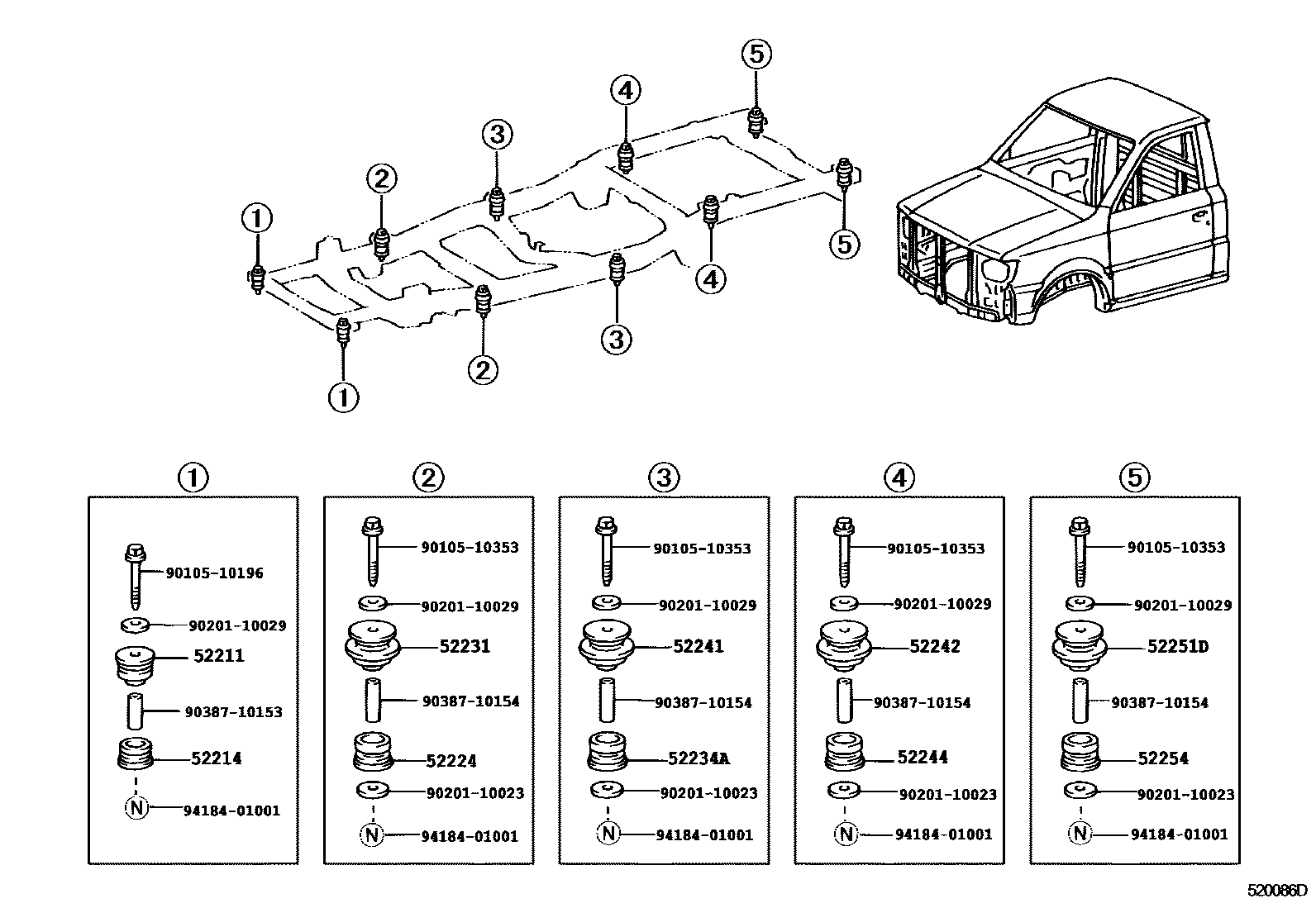

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52201-0B010×2iKF60..SD200208-200612

main52201-0B021×2iKF60,80,LF61,80,81,85,RZF80,81,84,85,YF60,80..MA,PHL,SA,TAIW,VN199804-200306

52214CUSHION, BODY MOUNT, NO.1 LOWER

main52202-0B010×2iKF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN199612-200208

main52202-0B021×2iRZF85..RHD;KF80..(SHRV,SRF)..(MA,TAIW);KF60,82,LF61,81,85,RZF61,80,81..SA,TAIW,VN200210

52224CUSHION, BODY MOUNT, NO.2 LOWER

main52208-0B010×2iKF60..SD200208-200612

main52208-0B021×2iKF82,LF81,RZF80,81..SHRW;KF60,80,LF61,RZF61..(SCB,SHRV)..(SA,TAIW)200210

main52208-0B050×2iLF85,RZF84,85200210-200612

main52208-0B060×2iKF80..MA200211-200503

52231CUSHION, BODY MOUNT, NO.3 UPPER

main52207-0B010×2iKF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN199612-200208

main52207-0B021×2iKF82,LF81,RZF80,81..SHRW;KF60,80,LF61,RZF61..(SCB,SHRV)..(SA,TAIW)200210

main52207-0B050×2iLF85,RZF84,85200210-200612

main52207-0B060×2iKF80..MA200211-200503

52234ACUSHION, CAB MOUNTING, NO.4 LOWER

main52208-0B010×2iKF60..SD200208-200612

main52208-0B021×2iKF60,80,LF61,80,81,RZF80,YF60,80..MA,PHL,SA,TAIW,VN199804-200102

main52208-0B050×2iLF85,RZF84,85200210-200612

main52208-0B060×2iKF80,LF80,RZF81..PHL200102-200103

52241CUSHION, BODY MOUNT, NO.4 UPPER

main52207-0B010×2iKF60..FD200408-200612

main52207-0B021×2iKF60,80,LF61,80,81,RZF80,YF60,80..MA,PHL,SA,TAIW,VN199804-200102

main52207-0B050×2iLF85,RZF84,85200210-200612

main52207-0B060×2iKF80..MA200211-200503

52242CUSHION, CAB REAR MOUNTING REBOUND

main52207-0B010×2iKF70,80,LF70,80..GEN199612-199812

main52207-0B021×2iKF80,LF61,80,81,RZF80,YF60,80..MA,SA,TAIW,VN200102-200103

main52207-0B040×2iKF70,80,LF70,80..GEN199812-200001

main52207-0B050×2iLF85,RZF84,85200210-200612

main52207-0B060×2iKF80,LF80,RZF81..MA,PHL200103-200212

52244CUSHION, BODY MOUNT, NO.4 LOWER

main52208-0B010×2iKF70,80,LF70,80..GEN199612-199812

main52208-0B021×2iKF80,LF61,80,81,RZF80,YF60,80..MA,PHL,SA,TAIW,VN199911-200102

main52208-0B040×2iKF70,80,LF70,80..GEN199812-200001

main52208-0B050×2iLF85,RZF84,85200210-200612

main52208-0B060×2iKF80,LF80,RZF81..MA,PHL200103-200212

52251DCUSHION, CAB MOUNTING, NO.4 UPPER

main52207-0B010×2iKF70,80,LF70,80..GEN199612-199812

main52207-0B021×2iKF80,LF61,81,RZF80,YF60,80..SHRV,SHRW200103-200306

main52207-0B040×2iKF70,80,LF70,80..GEN199812-200001

main52207-0B050×2iLF85,RZF84,85200210-200612

main52207-0B060×2iKF80,LF80,RZF81..PHL200102-200103

52254CUSHION, BODY MOUNT, NO.5 LOWER

main52208-0B010×2iKF7#,8#,LF72,80,82,RZF71,81..GEN200001-200208

main52208-0B021×2iKF80,LF61,RZF61..SHRV;KF82,LF81,RZF80,81..SHRW200210

main52208-0B040×2iKF70,80,LF70,80..GEN199812-200001

main52208-0B050×2iLF85,RZF84,85200210-200612

main52208-0B060×2iKF80,LF80,RZF81..MA,PHL200103-200212

9010510196

main90105-10196

9010510353

main90105-10353

9020110023

main90201-10023

9020110029

main90201-10029

9038710153

main90387-10153

9038710154

main90387-10154

9418401001

main94184-01001

17 parts on this diagram · 2 diagrams in section
