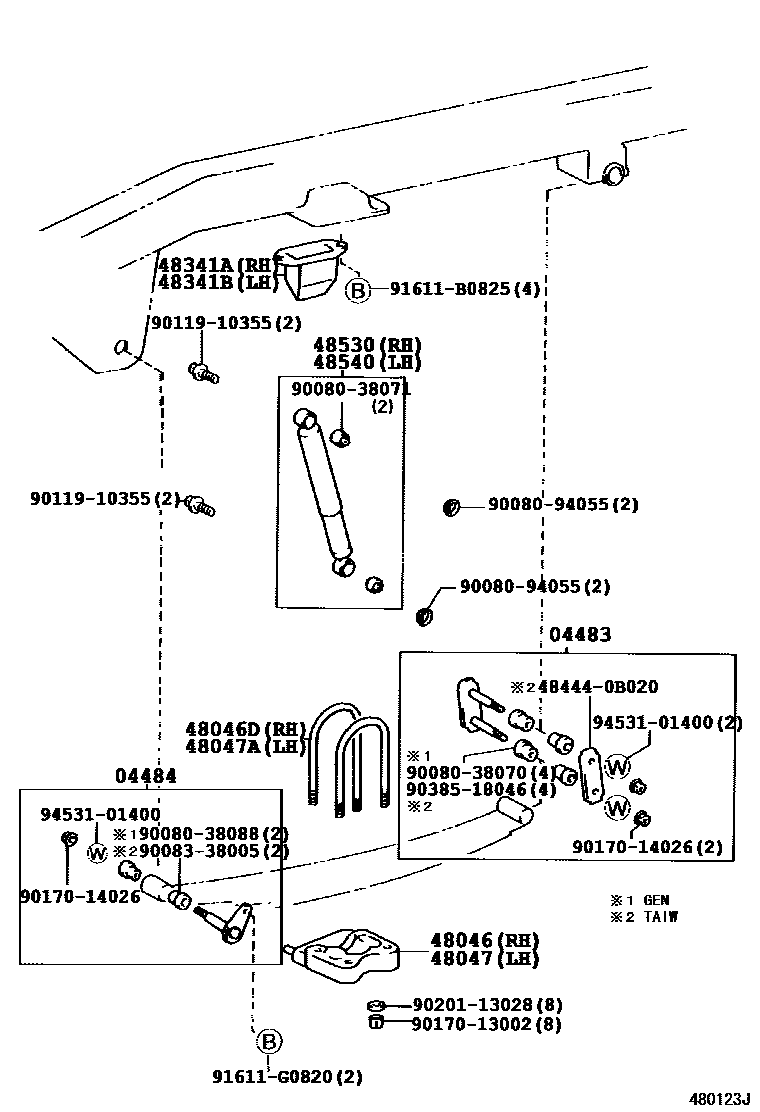

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0011 1 0012 1 0013 1 0014 1

04483SHACKLE KIT, REAR SPRING

main04483-0B010×2iKF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN199612-200208

main04483-0B020×2iKF80,LF80..MA199804-200103

main04483-0B021×2iKF80,LF80..MA200103-200212

main04483-0B030×2iKF82,LF82,RZF82..LHD;KF60,80,LF61,81,RZF61,80,81..SA,TAIW200210

main04483-0B040×2iLF85,RZF84,85200210

04484PIN KIT, REAR SPRING

main04484-0B010×2iKF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN199612-200208

main04484-0B020×2iKF80,LF80..MA199804-200103

main04484-0B021×2iKF80,LF80..MA200103-200212

main04484-0B030×2iKF60,80,LF80,RZF81..LHD199810-200302

main04484-0B040×2iLF85,RZF84,85199911-200306

main04484-38020×2iLF61,81,RZF80,YF60,80200004-200306

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-0B010iKF60,LF60..RHD200208-200612

main48046-0B030×2iKF82,LF82,RZF82..PHL;KF80,LF61,81,RZF61,80,81..SA,TAIW200210

main48046-0B040iKF60..LHD200210

main48046-0B060iLF85,RZF84,85200210

main48046-0B070iKF7#,8#,LF80,82..GEN200208-200406

main48046-38020iKF80,LF80..MA;RZF71,81..RHD199804-200212

48046DBOLT, U(FOR REAR SPRING RH)

main90080-11107×2iKF80,LF80..MA199804-200212

main90117-13206×2iKF70,80,LF80..4F;KF60,LF60,70..RHD;KF70,80,LF80..(DLX,GL)..GEN199612-200208

main90117-14043×2iRZF71,81;KF60,80,LF61,80,81,RZF80,YF60,80..PHL,SA,TAIW,VN199810-200306

main90117-14062×2iLF85,RZF84,85200210-200612

main90117-14070×2iKF7#,8#,LF80,82..GEN200208-200406

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-0B010iKF60,LF60..RHD200208-200612

main48046-0B030×2iKF82..VN200210-200601

main48046-0B040iKF60..LHD199902-200210

main48046-0B060iLF85,RZF84,85200210

main48046-0B070iKF7#,8#,LF80,82..GEN200208-200406

main48046-38020iKF80,LF80..MA;RZF71,81..RHD199804-200212

48047ABOLT, U(FOR REAR SPRING LH)

main90080-11107×2iKF80..MA200212-200503

main90117-13206×2iKF60,LF60..RHD200208-200612

main90117-14043×2iRZF71,81;KF60,80,LF61,80,81,RZF80,YF60,80..PHL,SA,TAIW,VN199810-200306

main90117-14062×2iLF85,RZF84,85199911-200306

main90117-14070×2iKF7#,8#,LF72,80,82..GEN200001-200208

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-0B010iKF7#,8#,LF7#,80,82,RZF71,81..GEN199612-200208

main48341-0B020iKF60,LF60..RHD199612-200208

main48341-0B030iKF80..SHRW..TAIW200210-200612

main48341-0B040iKF60..LHD200210

main48341-0B060iLF85,RZF84,85200306-200612

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-0B010iKF7#,8#,LF7#,80,82,RZF71,81..GEN199612-200208

main48341-0B020iKF60,LF60..RHD199612-200208

main48341-0B030iKF80..SHRW..TAIW200210-200612

main48341-0B040iKF60..LHD200210

main48341-0B060iLF85,RZF85..SA200210-200306

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09070iKF60,LF60..RHD200208

MARK 48531-0B010

main48531-09080iKF82,LF82..PHL200211-200501

MARK 48531-0B020

main48531-09110iKF80,LF80..MA199804-200212

MARK 48531-0B030

main48531-09170iKF7#,8#,LF80,82..GEN200208-200406

MARK 48531-0B020

main48531-09220iRZF71,81200010-200211

MARK 48531-0B090

main48531-09290iRZF81..GEN200208-200406

MARK 48531-0B090

main48531-09300iLF61,81,RZF61,80,81..SA200306-200503

MARK 48531-0B080

main48531-09310iLF85,RZF85..SA200306-200503

MARK 48531-0B070

main48531-0B040iKF80..VN200210-200302

MARK 48531-0B040

main48531-0B050iKF60..LHD200210

MARK 48531-0B050

main48531-0B100iKF82..GL..VN;KF80..SHRV..GL200210

MARK 48531-0B100

main48531-80173iRZF84,85..LHD199911-200210

MARK 48531-38090

main48531-80713iRZF84,85..LHD200212

MARK 48531-38090

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09070iKF60,LF60..RHD199612-200208

MARK 48531-0B010

main48531-09080iKF82,LF82..PHL200211-200501

MARK 48531-0B020

main48531-09110iKF80,LF80..MA199804-200212

MARK 48531-0B030

main48531-09170iKF70,80,LF70,80..GEN199612-200001

MARK 48531-0B020

main48531-09220iRZF82200211-200501

MARK 48531-0B090

main48531-09290iRZF81..GEN200208-200406

MARK 48531-0B090

main48531-09300iLF61,81,RZF61,80,81..SA200306-200503

MARK 48531-0B080

main48531-09310iLF85,RZF85..SA200306-200503

MARK 48531-0B070

main48531-0B040iKF82..DLX..VN;KF80..(DLX,STD)..TAIW200210

MARK 48531-0B040

main48531-0B050iKF60..LHD200210

MARK 48531-0B050

main48531-0B100iKF82..GL..VN;KF80..SHRV..GL200210

MARK 48531-0B100

main48531-80173iRZF84,85..LHD200210-200212

MARK 48531-38090

main48531-80713iRZF84,85..LHD200212

MARK 48531-38090

484440B020PLATE, FRONT SPRING SHACKLE, INNER

main48444-0B020

9008038070

main90080-38070

9008038071

main90080-38071

9008038088

main90080-38088

9008094055

main90080-94055

9008338005

main90083-38005

9011910355

main90119-10355

9017013002

main90170-13002

9017014026

main90170-14026

9020113028

main90201-13028

9038518046

main90385-18046

91611B0825

main91611-B0825

91611G0820

main91611-G0820

9453101400

main94531-01400

24 parts on this diagram · 12 diagrams in section
