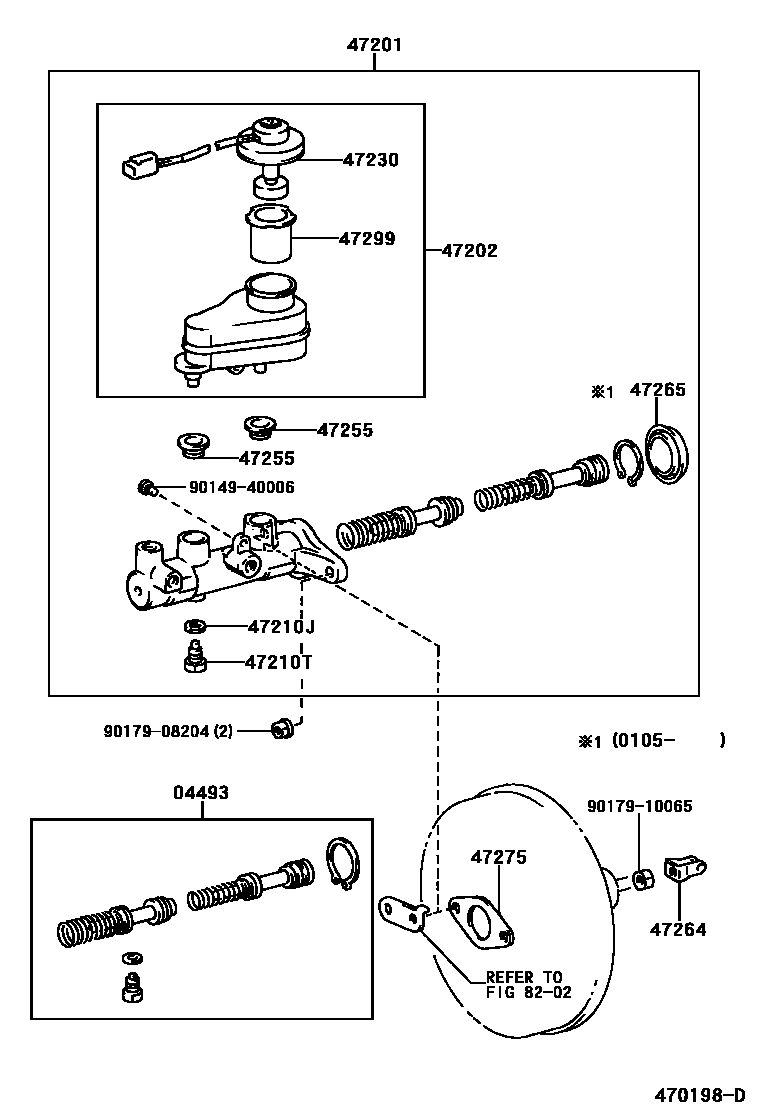

BRAKE MASTER CYLINDER

0001 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-0B010iKF80..SHRW..TAIW200210-200612

W(ABS)

main04493-0B020iKF82,LF82,RZF82..LHD;KF60,80..(SCB,SHRV)..LHD200210

main04493-0B040iRZF84200210-200612

main04493-38020iKF60,70,80,LF60,70,80199612-199708

main04493-3D010iRZF85..LHD199911-200210

main04493-60280iRZF84200003-200210

main04493-60300iKF60,7#,8#,LF6#,7#,80,81,82,RZF71,80,81,YF60,80..GEN,MA,SA199708-200306

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0B010iKF80..(DLX,GL)..TAIW199902-200105

W(ABS)

main47201-0B012iKF80..SHRV..(DLX,GL)200210

W(ABS)

main47201-0B020iKF80..4FC..(DLX,GLX);KF60,80,LF80..5F..LHD199810-200003

main47201-0B022iKF80..SHRW..TAIW200210-200612

main47201-0B031iRZF85..LHD199911-200105

main47201-0B032iRZF85..LHD200105-200210

main47201-0B040iRZF84200003-200105

main47201-0B041iRZF84200210-200612

main47201-38040iKF60,70,80,LF60,70,80199612-199708

main47201-38041iKF60,7#,8#,LF60,7#,80,81,82,RZF71,80,81,YF60,80..RHD199708-200105

main47201-38042iKF60,7#,8#,LF60,72,80,81,82,RZF71,80,81,YF60,80..RHD200105-200306

main47201-38071iLF85,RZF85..RHD200004-200105

main47201-38072iLF85,RZF85..RHD200306-200503

main47201-38081iLF61,81,YF60,80..LHD200004-200105

main47201-38082iLF61,81,RZF61,81..LHD200306-200503

main47201-38090iLF85..LHD200104-200105

main47201-38091iLF85..LHD200306-200503

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-0B010iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

main47220-38010iLF80..GEN;KF60,7#,8#,LF6#,81,82,85,RZF61,80,81,85..GEN,MA,SA200208-200612

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iRZF85..LHD200210-200612

W(ABS)

main90430-06104iKF60..FD200409

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80199612-200306

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12070iKF60,7#,8#,LF6#,7#,8#,RZF71,80,81,85,YF60,80..GEN,MA,SA199901-200306

main84460-20110iKF60,70,80,LF60,70,80199612-199901

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iLF81..RHD200208-200406

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-28010iRZF84,85..LHD200210-200612

main47264-50010iKF60,80..(SCB,SHRW)..(FD,LUB,SD)..(GEN,TAIW)200208-200612

47265BOOT, MASTER CYLINDER

main47265-20050iKF60,7#,8#,LF6#,72,8#,RZF71,80,81,85,YF60,80..GEN,MA,SA200105-200306

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iKF60,7#,8#,LF6#,7#,8#,RZF71,8#,YF60,80199612-200105

main47275-26010iKF80..SHRW..TAIW;KF60,RZF84,85..(FD,LUB,SD)..(GEN,TAIW)200208-200612

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-27020iKF82,LF82,RZF82..LHD;KF60,80..(SCB,SHRV)..LHD200210

main47299-32010iLF80..GEN;LF81..LHD;KF60,7#,8#,LF6#,82,85,RZF61,80,81,85..GEN,MA,SA200208-200612

8202

9014940006

main90149-40006

9017908204

main90179-08204

9017910065

main90179-10065

15 parts on this diagram · 2 diagrams in section
