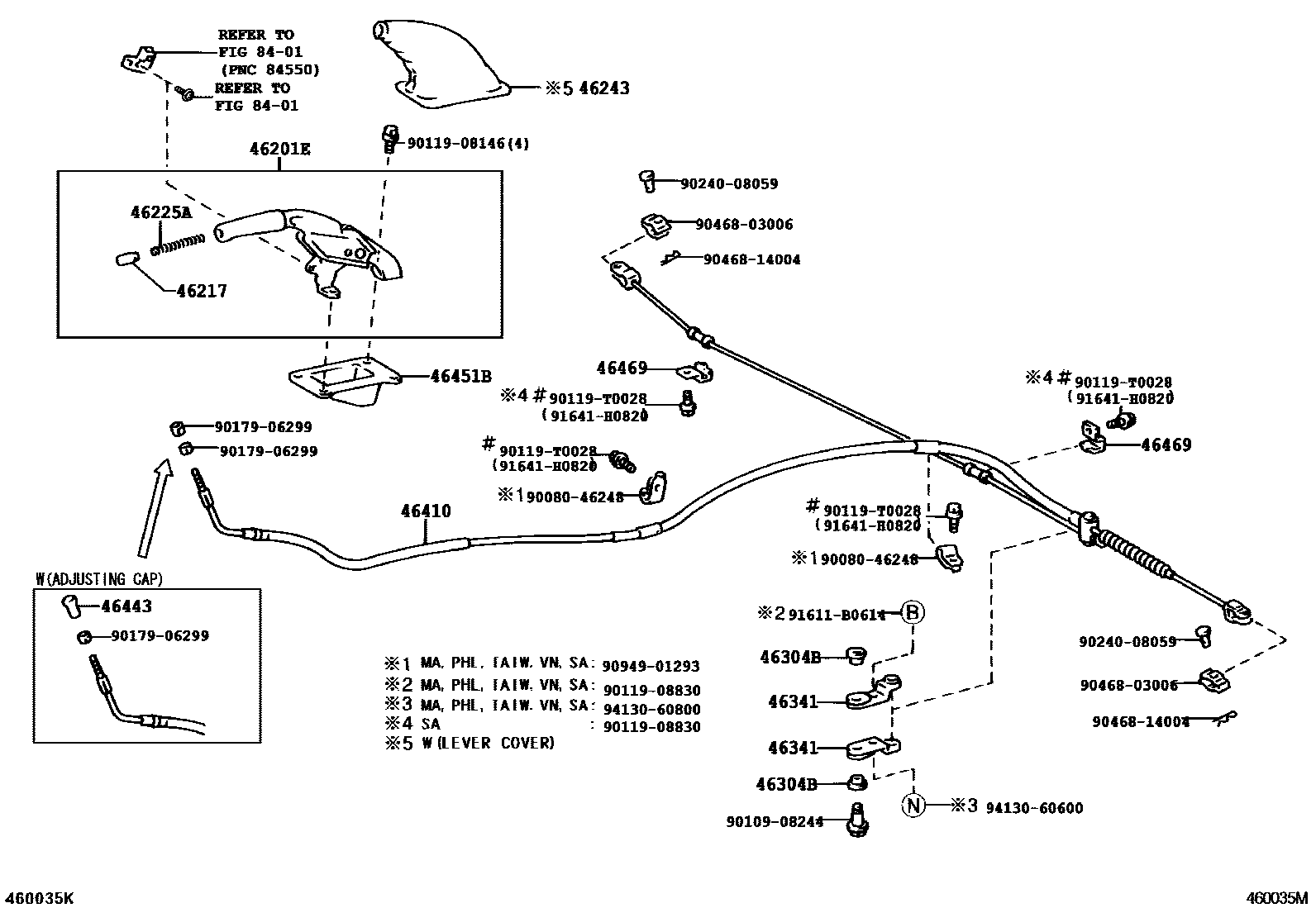

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0B010iKF72,LF82..IV7200102-200208

main46201-0B010-B0iKF60,7#,8#,LF60,72,80,82,RZF71,81..CBU..(GEN,MA,PHL,VN)199612-200707

BLUISH GRAY,TRIM1#

main46201-0B010-C0iKF60,80,RZF84,85..TAIW200104-200210

BLACK,TRIM1#

main46201-0B010-E0iKF80..GL..(MA,TAIW);KF72,82,LF82,RZF81,82,84,85..GL..(GEN,PHL,TAIW)200208-200707

ORCHID BROWN,TRIM4#

main46201-0B020-B0iLF61,81,85,RZF61,80,81,85..SA200306-200503

BLUISH GRAY,TRIM1#

main46201-0B020-E0iLF81,85,RZF80,81,85..SA200306-200503

ORCHID BROWN,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-0B010iKF72,LF82..IV7200102-200208

main46217-0B010-B0iKF80,LF80,RZF81..MA,PHL,VN199612-200707

BLUISH GRAY,TRIM1#

main46217-0B010-C0iKF60,80,RZF84,85..TAIW200104-200210

BLACK,TRIM1#

main46217-0B010-E0iKF80..GL..(MA,TAIW);KF72,82,LF82,RZF81,82,84,85..GL..(GEN,PHL,TAIW)200208-200707

ORCHID BROWN,TRIM4#

main46217-0B020-B0iLF61,81,85,RZF61,80,81,85..SA200306-200503

BLUISH GRAY,TRIM1#

main46217-0B020-E0iLF81,85,RZF80,81,85..SA200306-200503

ORCHID BROWN,TRIM4#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90080-50174iLF60,80..GEN;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF82,RZF81,82..(LUB,T2)..(DLX,GL,STD)..(GEN,PHL,TAIW,VN)199612-200612

main90501-10132iLF61,81,85,RZF80,85,YF60,80..SA200004-200503

46243COVER, PARKING BRAKE LEVER

main46243-0B010-B0iKF70,80,LF80..GEN199612-200406

BLUISH GRAY,TRIM1#

main46243-0B020-B0iLF81,RZF80,YF80..DLX..RHD199902-200707

BLUISH GRAY,TRIM1#

main46243-0B020-C0iKF60,80..STD..LHD200104-200210

BLACK,TRIM1#

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12012iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80199612-200612

46341EQUALIZER, PARKING BRAKE

main46341-0B010iKF82..VN;KF60,80..(SCB,SHRV)..LHD199902-200612

main46341-30050iKF60,7#,8#,LF60,80,82,RZF81..GEN199612-200612

main46341-35030iKF80,LF61,80,81,85,RZF80,81,85,YF60,80..MA,PHL,SA199804-200503

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0B020iKF7#,LF7#,RZF71199612-200406

main46410-0B030iLF82..DLX..RHD;KF60,82,LF60,80..5F..GEN199612-200612

PNG SPEC

main46410-0B040iKF8#,LF80,82,RZF81..GEN199612-200406

main46410-0B050iKF80..MA199804-200503

main46410-0B060iKF80..SHRW..TAIW199902-200612

main46410-38030iKF80,LF80,RZF81..PHL199810-200501

main46410-38040iRZF84,85..LHD199911-200612

main46410-38051iLF81,RZF61,80,81..SA..RHD200004-200503

W(REAR NO.2 SEAT OPPOSING TYPE)

main46410-38061iLF81,RZF80,81..SA..RHD200004-200503

main46410-38071iLF61,81,YF60,80..LHD200004-200503

main46410-38080iLF85,RZF85..RHD200004-200503

main46410-38090iLF85,RZF85..RHD200004-200503

W(REAR NO.2 SEAT OPPOSING TYPE)

main46410-38100iLF85..LHD200104-200503

46443CAP, CABLE ADJUSTING

main46443-12020iLF80..GL..LHD;KF80..4FC..PHL;LF80,82..(DLX,GLX,STD)..CBU;KF60,8#,LF6#,81,85,RZF80,85,YF60,80..MTM..CBU..(GEN,PHL,SA)199612-200612

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-0B010iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80199612-200612

46469LEVER, CABLE GUIDE SUPPORT

main46469-38010iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80199612-200612

8401

9008046248

main90080-46248

9010908244

main90109-08244

9011908146

main90119-08146

9011908830

main90119-08830

90119T0028

main90119-T0028

9017906299

main90179-06299

9024008059

main90240-08059

9046803006

main90468-03006

9046814004

main90468-14004

9094901293

main90949-01293

91611B0614

main91611-B0614

91641H0820

main91641-H0820

9413060600

main94130-60600

9413060800

main94130-60800

25 parts on this diagram · 1 diagram in section
