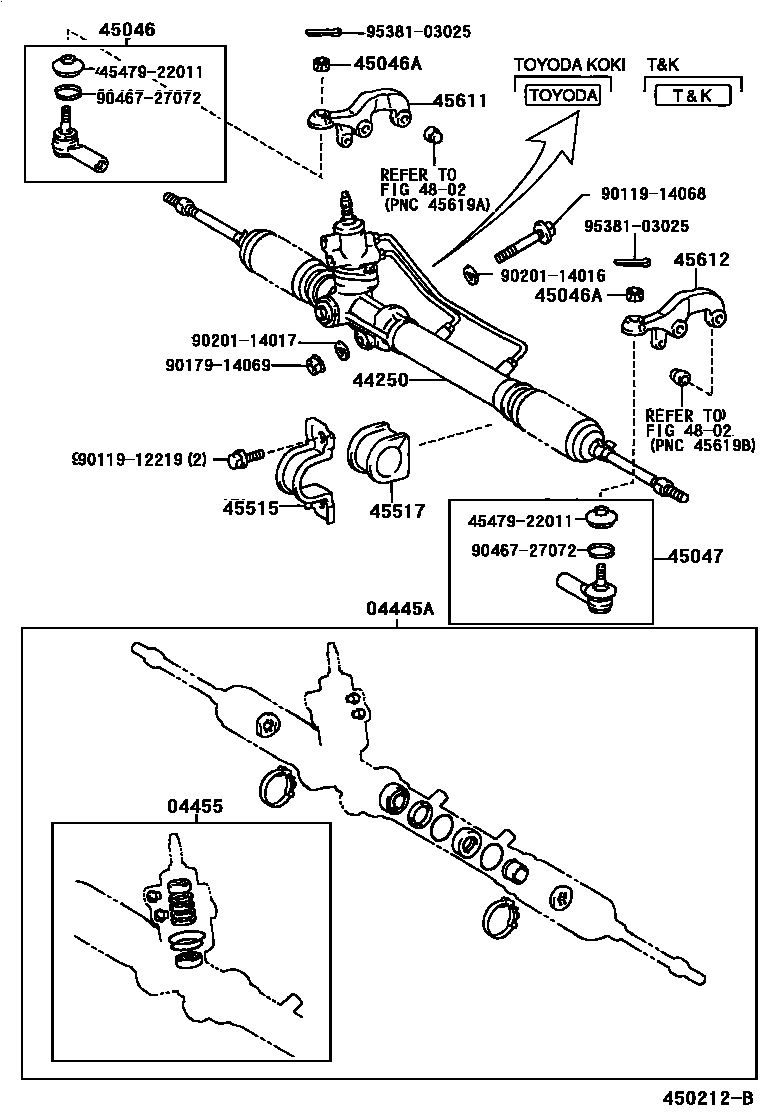

FRONT STEERING GEAR & LINK

0001 1POWER STEERING 0004 1MANUAL STEERING 0006 1POWER STEERING 0010 1MANUAL STEERING 0012 1POWER STEERING 0014 1POWER STEERING 0017 1MANUAL STEERING 0019 1POWER STEERING 0023 1MANUAL STEERING 0025 1POWER STEERING

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-0B010iKF80,LF60..(SCB,SHRV,SHRW)..(GEN,TAIW);KF60,72,82,LF80,82,RZF81,84,85..(LUB,T2)..(GEN,TAIW)199612-200612

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-27030iLF60,80;KF70,80,RZF81..DLX,GL,GLX;KF80,LF85..5F..(GL,STD)..(SA,TAIW)..LHD;KF60,72,82,LF7#,82,RZF71,84,85..(LUB,T2)..(GEN,TAIW)199612-200612

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0B010iLF60,80;KF70,80,LF70..DLX,GL199612-199810

main44250-0B011iLF60,80..RHD;KF7#,8#,LF7#,82..(DLX,GL)..RHD199810-200003

main44250-0B011iLF60,80..RHD;KF72,8#,LF72,82,RZF71,81..(DLX,GL)..RHD200003-200503

TOYODA KOKI

main44250-0B021iKF82,LF82,RZF82..LHD;KF60,80..(SCB,SHRV)..LHD200003-200612

TOYODA KOKI

main44250-0B021iKF60,80,LF80..LHD199810-200003

main44250-0B040iLF85,RZF84,85..LHD199911-200612

main44250-0B050iLF85,RZF85..RHD200306-200503

main44250-0B080iLF60,80..RHD;KF72,8#,LF72,82,RZF71,81..(DLX,GL)..RHD200003-200503

T & K

main44250-0B090iKF82,LF82,RZF82..LHD;KF60,80..(SCB,SHRV)..LHD200003-200612

T & K

main44250-0B100iLF81,RZF61,80,81..SA..RHD200306-200503

main44250-0B110iLF61,81,RZF61,81..LHD200306-200503

45046END SUB-ASSY, TIE ROD, RH

main45046-09090iLF80..GEN;KF82,LF82,RZF82;KF60,7#,80,LF6#,81,RZF61,80,81..GEN,MA,SA,TAIW199612-200306

main45046-39405iLF85,RZF84,85199911-200306

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iLF60,80,RZF85..GEN,SA;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82..(LUB,T2)..(DLX,GL,STD)199612-200612

45047END SUB-ASSY, TIE ROD, LH

main45046-09090iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80199612-200306

main45047-39245iLF85,RZF84,85199911-200306

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-0B010iYF80;KF80..STD..RHD;KF60,70,YF60..STD199612-200612

main45515-0B020iRZF84,85..LHD;KF80..SHRW..TAIW199612-200612

W(POWER STEERING)

main45515-0B020iLF80..5F..STD;KF72,82,LF6#,72,81,82,85,RZF71,80,81,84,85..(4FC,5F)..(GEN,SA,TAIW)199911-200306

main45515-0B040iKF82,LF82,RZF82..PHL199810-200501

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-0B010iKF60,70,80..GEN199612-200612

main45517-0B020iLF60,80..RHD;KF72,8#,LF72,82,RZF71,81..(DLX,GL)..RHD199612-200503

main45517-0B030iKF60..LHD199902-200306

main45517-0B040iLF85,RZF84,85;LF80,RZF81..GLX199909-200306

main45517-0B040iKF60,80..LHD;LF80..(DLX,GL)..LHD199810-200612

W(POWER STEERING)

main45517-38040iLF61,81,RZF80199804-200306

45611ARM, STEERING KNUCKLE, RH

main45611-28040iLF60,80..GEN;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,RZF61,80,81,82..(LUB,T2)..(DLX,GL,STD)199612-200612

45612ARM, STEERING KNUCKLE, LH

main45612-28040iKF60,80..(SCB,SHRW)..(FD,LUB,SD)..(GEN,TAIW)199612-200612

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

4547922011SEAL, STEERING LINK JOINT DUST

main45479-22011

9011912219

main90119-12219

9011914068

main90119-14068

9017914069

main90179-14069

9020114016

main90201-14016

9020114017

main90201-14017

9046727072

main90467-27072

9538103025

main95381-03025

19 parts on this diagram · 10 diagrams in section
