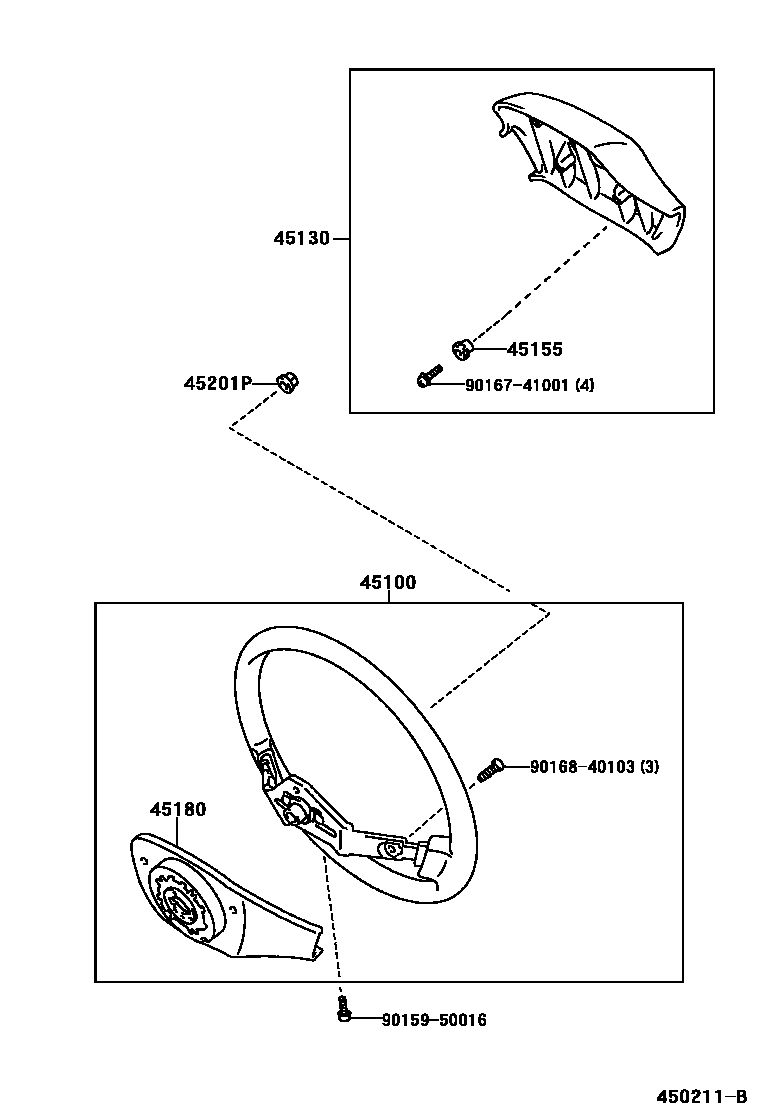

STEERING WHEEL

0001 12-SPOKE 0003 13-SPOKE,URETHANE 0012 14-SPOKE,URETHANE,W(*80) 0013 14-SPOKE,WOOD & LEATHER 0014 12-SPOKE 0019 13-SPOKE,URETHANE 0023 14-SPOKE,URETHANE

45100WHEEL ASSY, STEERING

main45100-02090-B3iKF60,7#,8#,LF60,72,80,RZF81,YF60,80..GEN,MA,SA200202-200208

3-SPOKE,URETHANE,GLAY,TRIM1#

main45100-02090-C0iKF60,80,LF80,RZF81..LHD200202-200208

3-SPOKE,URETHANE,BLACK,TRIM1#

main45100-02090-E3iKF72,80,RZF81..GL..RHD;KF82,LF82,RZF82..SRF..GL200208-200503

3-SPOKE,URETHANE,ORCHID BROWN,TRIM4#

main45100-0B010iKF80,LF80..DLX..PHL;KF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200102

2SPOKE,POLYPROPYLENE

main45100-0B020-C0iKF80,RZF85..GL..TAIW199902-200210

4-SPOKE,URETHANE,BLACK,TRIM1#

main45100-0B030iKF60,80..STD..LHD200210-200707

2SPOKE,POLYPROPYLENE

main45100-0B070iKF72,LF82..IV7200102-200208

2SPOKE,POLYPROPYLENE

main45100-0B070-B0iKF60,7#,8#,LF60,72,80,82..(DLX,STD)..CBU..GEN200102-200208

2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1#

main45100-0B070-C0iKF82,LF60,82..STD;KF60,7#,8#,LF80,82..(LUB,SD)..(DLX,STD)..RHD200208-200612

2SPOKE,POLYPROPYLENE,BLACK,TRIM1#

main45100-0B080-B0iKF80,RZF85..GL..TAIW200210-200707

4-SPOKE,WOOD&LEATHER,BLUISH GRAY,TRIM1#

main45100-0B080-E1iKF80,RZF85..GL..TAIW200210-200707

4-SPOKE,WOOD&LEATHER,ORCHID BROWN,TRIM4#

main45100-0D070-B2iRZF84;KF80..DLX200303-200707

3-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

main45100-0D070-E3iRZF84200303-200612

3-SPOKE,URETHANE,ORCHID BROWN,TRIM4#

main45100-12731-E1iKF80,RZF84..GL..TAIW200210-200707

3-SPOKE,LEATHER,ORCHID BROWN,TRIM4#

main45100-12760-B1iLF61,81,RZF80,YF60,80;KF72,8#,LF80,82,85,RZF71,81,85..GL..(GEN,MA,SA)200103-200106

3-SPOKE,URETHANE,GRAY,TRIM1#

main45100-12760-C0iLF61,81,85,RZF80,85,YF60,80..SA200110-200202

3-SPOKE,URETHANE,BLACK,TRIM1#

main45100-43020-E1iLF85,RZF80,85..GL..SA200306-200503

4-SPOKE,URETHANE,ORCHID BROWN,TRIM4#

45130BUTTON ASSY, HORN

main45130-02100-B3iKF72,8#,LF80,82,RZF71,81..GL..RHD200110-200202

BLUISH GRAY,TRIM1#

main45130-02100-C0iKF80..DLX..(TAIW,VN);KF80,LF80,RZF81,84..(GL,GLX)..LHD200110-200202

BLACK,TRIM1#

main45130-02140-B1iKF80,RZF85..GL..TAIW200210-200707

W(4-SPOKE,WOOD&LEATHER),BLUISH GRAY,TRIM1#

main45130-02140-E2iKF80,RZF85..GL..TAIW200210-200707

W(4-SPOKE,WOOD&LEATHER),ORCHID BROWN,TRIM4#

main45130-06120-B2iRZF84;KF80..DLX..TAIW200210-200707

W(3-SPOKE,URETHANE),BLUISH GRAY,TRIM1#

main45130-06120-E2iKF72,80,RZF81..GL..RHD;KF82,LF82,RZF82..SRF..GL200208-200503

ORCHID BROWN,TRIM4#

main45130-0B010iKF80,LF80..DLX..PHL;KF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200102

main45130-0B020iKF60,80..STD..LHD200210-200707

main45130-0B060iKF72,LF82..IV7200102-200208

main45130-0B060-B0iKF60,7#,8#,LF60,72,80,82..(DLX,STD)..CBU..GEN200102-200208

BLUISH GRAY,TRIM1#

main45130-0B060-C0iKF80,LF80..DLX..PHL200208-200211

BLACK,TRIM1#

main45130-12810-B1iLF61,81,85,RZF80,85,YF60,80..SA200106-200202

GRAY,TRIM1#

main45130-12810-C0iKF80..DLX..(TAIW,VN);KF80,LF80..(GL,GLX)..(PHL,VN)199810-200003

BLACK,TRIM1#

main45130-12820-E0iKF80,RZF84..GL..TAIW200210-200707

W(3-SPOKE,LEATHER),ORCHID BROWN,TRIM4#

main45130-1A150iKF80..GL..TAIW199902-199903

W(*80)

main45130-1A150-C0iKF80,RZF85..GL..TAIW199903-200210

W(*80),BLACK,TRIM1#

main45130-1A150-E0iLF85,RZF80,85..GL..SA200306-200503

ORCHID BROWN,TRIM4#

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-0B020×4iKF60,80..STD..LHD199902-200210

main45155-12050×4iKF60,7#,8#,LF60,72,80,82..(DLX,STD)..(GEN,PHL)200103-200211

45180COVER SUB-ASSY, STEERING WHEEL

main45180-0B010iKF80,LF80..MA200102-200103

main45180-0B020iKF60,80..STD..LHD200210-200707

main45180-0B060iKF72,LF82..IV7200102-200208

main45180-0B060-B0iKF60,7#,8#,LF60,72,80,82..(DLX,STD)..CBU..GEN200102-200208

BLUISH GRAY,TRIM1#

main45180-0B060-C0iKF80,LF80..DLX..PHL200102-200208

BLACK,TRIM1#

main45180-12170-B1iLF81,RZF80,YF80;KF72,82,LF61,82,85,RZF71,81,85,YF60..(GL,STD)..(GEN,SA)200001-200103

GRAY,TRIM1#

main45180-12170-C0iKF80..DLX..(TAIW,VN);KF80,LF80..(GL,GLX)..(PHL,VN)199810-200003

BLACK,TRIM1#

main45180-12190-E1iKF80,RZF84..GL..TAIW200210-200707

ORCHID BROWN,TRIM4#

45201PNUT, STEERING WHEEL SET

main90179-12071iKF60,7#,8#,LF6#,7#,8#,RZF71,8#,YF60,80199612-200106

9015950016

main90159-50016

9016741001

main90167-41001

9016840103

main90168-40103

8 parts on this diagram · 7 diagrams in section
