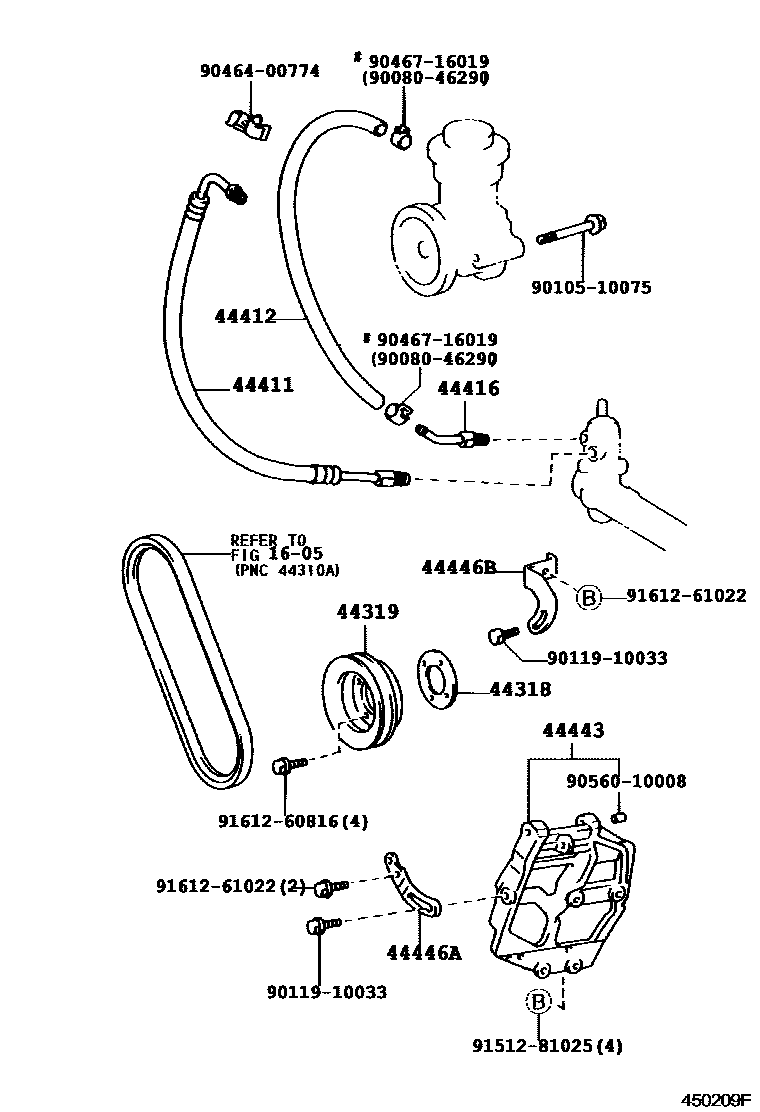

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1

1605V-BELT

→ Go to FIG 16-05

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLF61,81200004-200306

main44318-26020iRZF80..DLX; RZF82200208-200301

main44318-27010iKF72,82..RHD200208-200406

main44318-35010iLF82..IV7;LF60,70,80..(DLX,STD)..RHD199612-200208

44319PULLEY, VANE PUMP DRIVE

main44319-22010iLF82..RHD;LF6#,7#,80,81,85199612-200301

main44319-26020iRZF71,80,81,84,85199911-200306

main44319-27020iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200302

44411HOSE, PRESSURE FEED

main44411-0B020iKF70,80..4FC..GEN199810-200001

main44411-0B030iLF60,80,82..GEN200208-200406

main44411-0B040iKF70,80..5F..GEN199810-200001

main44411-0B050iKF80..MA200208-200503

main44411-0B070iRZF81..GEN200208-200406

main44411-0B080iLF81..RHD200004-200306

main44411-0B090iLF61,81..LHD200306-200503

main44411-0B101iLF85..RHD200306-200503

main44411-0B110iRZF85..RHD200306-200503

main44411-38050iLF60,70,80199612-199810

main44411-38060iKF70,80..(DLX,GL)..GEN199612-199810

main44411-38071iKF80..MA199804-199810

main44411-38090iLF80..LHD199810-200211

44412HOSE, RETURN

main44412-0B020iLF61,81..LHD200004-200306

main44412-38090iLF60,80,82..GEN200208-200406

main44412-38130iKF7#,8#..(DLX,GL)..RHD199612-200212

main44412-38160iRZF84,85..LHD200210-200612

main44412-38170iRZF71,80,81200004-200306

main44412-38180iLF85..LHD200104-200306

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0B020iKF7#,8#..(DLX,GL)..RHD199810-200212

main44416-0B030iLF60,80,82..GEN200208-200406

main44416-0B040iRZF71,80,81..RHD200004-200306

main44416-0B070iLF61,80,81..LHD199810-200306

main44416-38060iKF70,80..DLX,GL199612-199810

main44416-38100iLF60,70,80199612-199810

main44416-38140iRZF84,85..LHD200210-200612

main44416-38180iLF85..LHD200104-200306

main44416-38190iRZF81..LHD200102-200211

44443BRACKET, PUMP

main44443-04010iKF82..LHD200208-200301

main44443-26031iRZF71,80,81,84,85199911-200306

main44443-26090iLF61,81,85200004-200206

main44443-26091iLF61,81,85200306-200503

main44443-30080iLF60,80,82200310-200501

main44443-38030iKF80..(SHRV,SRF)..(MA,TAIW);KF60,72,82..(LUB,T2)..(GEN,TAIW,VN)200208

44446STRUT, ADJUSTING

main44446-30070iLF82..RHD;LF60,7#,80199612-200212

44446ASTRUT, ADJUSTING NO.1

main44446-38010iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200302

44446BSTRUT, ADJUSTING NO.2

main44446-38020iKF80..STD..LHD;KF70,80..DLX,GL,GLX;KF60,72,82..(LUB,T2)..(GEN,TAIW)199612-200302

9008046290

main90080-46290

9010510075

main90105-10075

9011910033

main90119-10033

9046400774

main90464-00774

9046716019

main90467-16019

9056010008

main90560-10008

9151281025

main91512-81025

9161260816

main91612-60816

9161261022

main91612-61022

19 parts on this diagram · 15 diagrams in section
