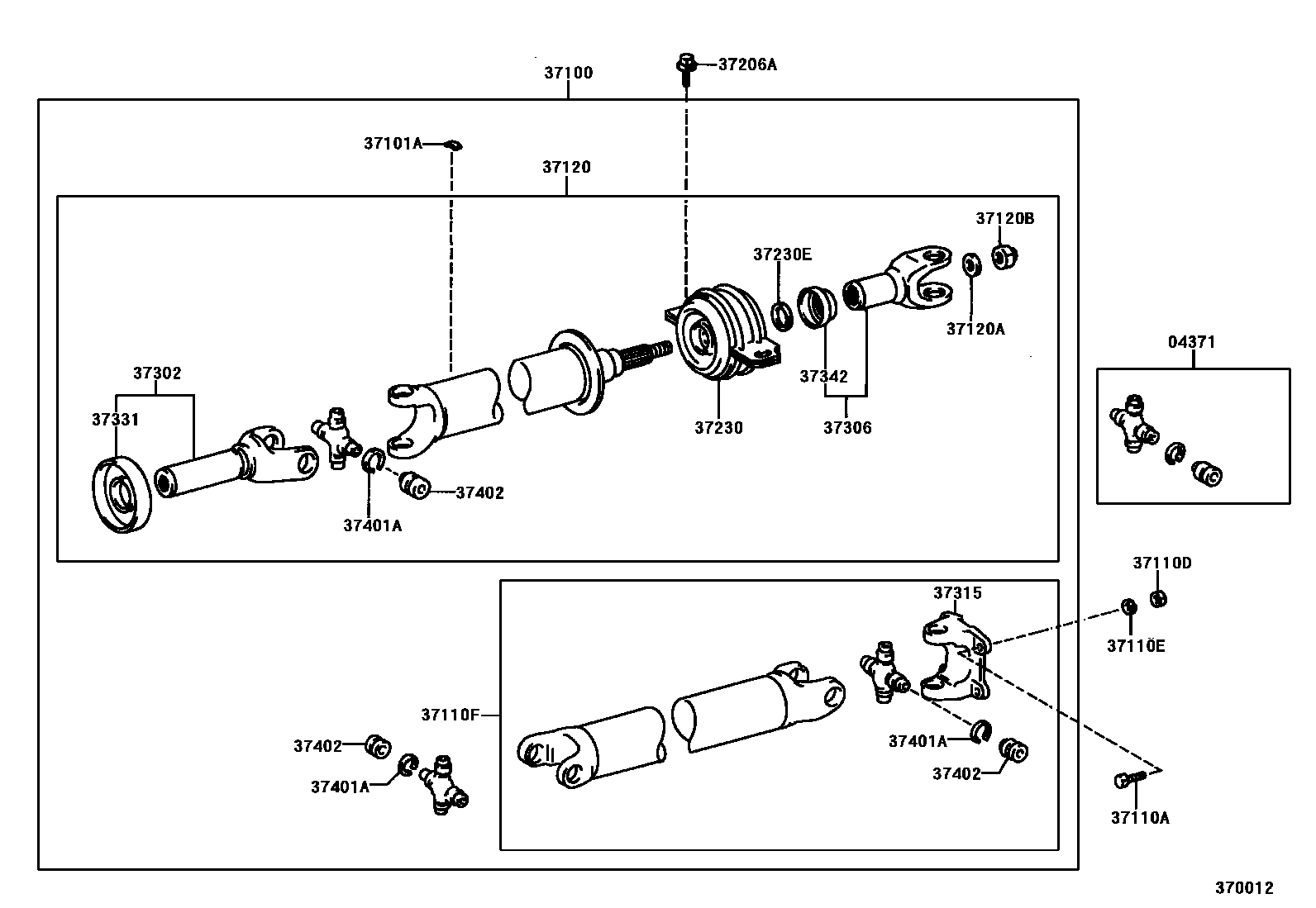

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1FRONT 0004 1REAR 0005 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-22010iKF60,80..STD..LHD;KF60,80,LF60,80..4F;KF80,LF80..DLX,GL,GLX199612-200302

main04371-22020iKF60,8#,LF60,80,82,RZF81..GEN,MA,PHL200001-200601

main04371-30040iRZF84200003-200008

sub04371-30041

main04371-30041iRZF84200008-200503

sub04371-60100

main04371-60100iRZF84200503

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-0B010iKF60..FD199612-200612

main37100-0B020iKF82..4FC..RHD199612-200406

main37100-0B030iKF80..5F..TAIW;KF60,82..TAIW,VN199902-200302

main37100-0B040iKF80..4FC..TAIW199902-200612

main37100-0B050iLF61,81,RZF61,80,81..SA200306-200503

main37100-0B060iRZF84200003-200612

main37100-0B070iRZF81..4FC..RHD200010-200406

main37100-38100iKF8#,LF82,RZF82..5F..(MA,PHL)199804-200503

main37100-38110iKF8#..4FC..(MA,PHL)199804-200503

main37100-38120iLF85,RZF85..5F199911-200612

main37100-38130iRZF85..4FC199911-200612

main37100-38140iRZF81..4FC..LHD200102-200501

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iKF60..FD199612-200612

10G,L=20.7

main90937-01136iKF80..SHRW..TAIW;KF60,RZF84,85..(LUB,SD)..(GEN,TAIW)199612-200612

20G,L=41.4

main90937-01140iKF60,7#,8#,LF60,7#,80,82,RZF71,81,84199612-200612

30G,L=62.2

main90937-01147iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,85,RZF71,81,84,85199612-200612

2G,T=2.0

main90937-01148iKF80..SHRW..TAIW;KF60,RZF84,85..(LUB,SD)..(GEN,TAIW)199612-200612

4G,T=2.0

main90937-01149iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,85,RZF71,81,84,85199612-200612

6G,L=12.4

main90937-01150iKF60..FD199612-200612

8G,L=16.6

main90937-01151iKF80..SHRW..TAIW;KF60,RZF84,85..(LUB,SD)..(GEN,TAIW)199612-200612

12G,L=24.9

main90937-01152iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,85,RZF71,81,84,85199612-200612

14G,L=29.0

main90937-01153iKF60..FD199612-200612

16G,L=33.2

main90937-01154iKF80..SHRW..TAIW;KF60,RZF84,85..(LUB,SD)..(GEN,TAIW)199612-200612

18G,L=37.3

main90937-01155iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,85,RZF71,81,84,85199612-200612

22G,L=45.6

main90937-01156iKF60..FD199612-200612

24G,L=49.7

main90937-01157iKF60..FD199612-200612

26G,L=53.9

main90937-01158iKF60..FD199612-200612

28G,L=58.1

main90937-01184iLF85,RZF85199911-200612

4G,T=1.6

main90937-01191iLF85,RZF85199911-200612

8G,T=1.6

main90937-01192iLF85,RZF85199911-200612

12G,T=4.5

main90937-01193iLF85,RZF85199911-200612

16G,T=4.5

main90937-01194iLF85,RZF85199911-200612

20G,T=4.5

main90937-01198iLF85,RZF85199911-200612

24G,T=4.5,L=25.1

main90937-01199iLF85,RZF85199911-200612

28G,T=6,L=22.7

main90937-01200iLF85,RZF85199911-200612

32G,T=6,L=24.3

main90937-01201iLF85,RZF85199911-200612

30G,T=4.5,L=27.4

main90937-01202iLF85,RZF85199911-200612

32G,T=4.5,L=29.2

main90937-01203iLF85,RZF85199911-200612

34G,T=4.5,L=31.0

main90937-01204iLF85,RZF85199911-200612

36G,T=4.5,L=32.9

main90937-01205iLF85,RZF85199911-200612

38G,T=4.5,L=34.7

main90937-01206iLF85,RZF85199911-200612

40G,T=4.5,L=36.5

main90937-01207iLF85,RZF85199911-200612

42G,T=4.5,L=38.4

main90937-01208iLF85,RZF85199911-200612

44G,T=4.5,L=40.2

main90937-01209iLF85,RZF85199911-200612

46G,T=4.5,L=42.0

main90937-01210iLF85,RZF85199911-200612

48G,T=4.5,L=43.8

main90937-01211iLF85,RZF85199911-200612

50G,T=4.5,L=45.7

main90937-01268iLF85,RZF85199911-200612

36G,L=23.1,T=8.0

main90937-01269iLF85,RZF85199911-200612

40G,L=25.6

main90937-01270iLF85,RZF85199911-200612

44G,L=22.6

main90937-01271iLF85,RZF85199911-200612

48G,L=24.6

main90937-01272iLF85,RZF85199911-200612

52G,L=26.7

main90937-01273iLF85,RZF85199911-200612

56G,L=28.7

main90937-01274iLF85,RZF85199911-200612

60G,L=28.7

main90937-01311iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81,84199612-200612

3G

main90937-01312iKF60..FD199612-200612

5G

main90937-01313iKF80..SHRW..TAIW;KF60,RZF84..LUB,SD199612-200612

7G,L=14.4

main90937-01314iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81,84199612-200612

9G,L=18.5

main90937-01396iLF85,RZF85200403-200612

16G,T=4.5,L=14.6

main90937-01397iLF85,RZF85200403-200612

18G,T=4.5,L=16.4

main90937-01398iLF85,RZF85200403-200612

20G,T=4.5,L=18.3

main90937-01399iLF85,RZF85200403-200612

22G,T=4.5,L=20.1

main90937-01400iLF85,RZF85200403-200612

24G,T=4.5,L=21.9

main90937-01401iLF85,RZF85200403-200612

26G,T=4.5,L=23.7

main90937-01402iLF85,RZF85200403-200612

28G,T=4.5,L=25.6

37110SHAFT ASSY, PROPELLER

main37110-0B020iKF7#,LF7#,RZF71..MTM199612-200406

main37110-0B030iKF7#..4FC199612-200208

main37110-0B080iRZF71..4FC200010-200208

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082iLF60,80..GEN;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF82,RZF81,82..(LUB,T2)..(DLX,GL,STD)..(GEN,PHL,TAIW,VN)199612-200612

*8-1.25PX25-12

main90105-10085iLF61,81,RZF80,84,YF60,80200003-200612

*10-1.00PX27-13

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015iLF60,80..GEN;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,7#,82,LF82,RZF81,82..(LUB,T2)..(DLX,GL,STD)..(GEN,PHL,TAIW,VN)199612-200612

main90178-11001iLF85,RZF85199911-200612

main90179-10059iLF61,81,RZF80,84,YF60,80200003-200612

37110EWASHER (FOR PROPELLER SHAFT)

main90201-11013iLF85,RZF85199911-200612

main90204-10002iLF61,81,RZF80,84,YF60,80200003-200612

sub90560-10H00

main94512-00800iKF60..FD199612-200612

37110FSHAFT ASSY, PROPELLER, REAR

main37110-0B010iKF60,8#,LF60,80,82,RZF81..GEN199612-200612

main37110-0B050iKF82..VN;KF60,80..(SCB,SHRV)..LHD199902-200612

main37110-0B070iRZF84200003-200612

main37110-38030iKF80,LF80,RZF81..MA,PHL199804-200503

main37110-38070iLF85,RZF85199911-200612

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-0B010iKF60..FD200208-200612

main37120-0B020iKF80..4F;LF80..DLX..RHD;KF80..(DLX,GL)..GEN;KF60,82,LF60,80..4F,4FC199612-200406

main37120-0B030iKF60,80..5F..(TAIW,VN)199902-200302

main37120-0B040iKF80..SHRV..4FC199902-200612

main37120-0B050iRZF84200003-200612

main37120-0B060iRZF81..4FC..RHD200010-200406

main37120-38030iKF8#,LF82,RZF82..5F..(MA,PHL)199804-200503

main37120-38040iKF8#..4FC..(MA,PHL)199804-200503

main37120-38090iLF85,RZF85..5F199911-200612

main37120-38100iRZF85..4FC199911-200612

main37120-38110iRZF81..4FC..LHD200102-200501

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iKF60..FD199612-200612

OD=33.5,T=4.0

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18009iKF60..FD199612-200612

37206BRACKET SUB-ASSY, CENTER SUPPORT BEARING

main37206-0B010iLF85,RZF85199911-200612

37206ABOLT, CENTER SUPPORT BEARING BRACKET

main90119-10049iKF60..FD199612-200612

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-26020iLF60,80..GEN;KF80..(SHRV,SRF)..(GEN,MA,TAIW);KF60,82,LF61,81,82,RZF61,80,81,82..(LUB,T2)..(DLX,GL,STD)199612-200612

main37230-38030iLF85,RZF85199911-200612

main37230-38040iRZF84200003-200612

37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)

main90201-25006iKF60..FD199902-200612

main90201-26005iKF80,LF80,RZF81..MA,PHL199612-200406

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-20040iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81199612-200612

main37302-24010iRZF84200003-200612

37306YOKE SUB-ASSY, UNIVERSAL JOINT, CENTER

main37306-20011iKF60,80..(SCB,SHRW)..(LUB,SD)..(GEN,TAIW)199612-200612

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-20020iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81199612-200612

main37315-35070iRZF84200003-200612

37331COVER, SLIDING SHAFT DUST

main37331-24010iRZF84200003-200612

main37331-30010iLF80..GEN;KF82,LF60,82,RZF82;KF60,7#,80,RZF81..(LUB,SD,T2)..(GEN,MA,TAIW)199612-200707

37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2

main37342-30010iKF82,LF82..RHD;KF60,80,LF60,80,RZF81199612-200612

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-25039iRZF84200003-200612

T=2.29,MARK 1

main90520-25040iRZF84200003-200612

T=2.31,MARK 2

main90520-25041iRZF84200003-200612

T=2.33,NO MARK

main90520-25042iRZF84200003-200612

T=2.35,BROWN

main90520-25043iRZF84200003-200612

T=2.37,BLUE

main90520-25044iRZF84200003-200612

T=2.39,MARK 6

main90520-25045iRZF84200003-200612

T=2.41,MARK 7

main90520-25046iRZF84200003-200612

T=2.43,MARK 8

main90520-25047iRZF84200003-200612

T=2.45,MARK 9

main90520-25048iRZF84200003-200612

T=2.47,MARK 10

main90520-25049iRZF84200003-200612

T=2.49,MARK A

main90520-25050iRZF84200003-200612

T=2.51,MARK B

main90520-25051iRZF84200003-200612

T=2.53,MARK C

main90520-25052iRZF84200003-200612

T=2.55,MARK D

main90520-25053iRZF84200003-200612

T=2.57,MARK E

main90520-25054iRZF84200006-200612

T=2.19,MARK D

main90520-25055iRZF84200006-200612

T=2.21,MARK E

main90520-25056iRZF84200006-200612

T=2.23,MARK F

main90520-25057iRZF84200006-200612

T=2.25,MARK G

main90520-25058iRZF84200006-200612

T=2.27,MARK H

main90520-26050iRZF84200003-200208

T=2.44-2.46

sub90520-25039

main90520-26051iRZF84200003-200208

T=2.46-2.48

sub90520-25040

main90520-26052iRZF84200003-200208

T=2.28-2.30

sub90520-25041

main90520-26053iRZF84200003-200208

T=2.30-2.32

sub90520-25042

main90520-26054iRZF84200003-200208

T=2.32-2.34

sub90520-25043

main90520-26055iRZF84200003-200208

T=2.34-2.36

sub90520-25044

main90520-26056iRZF84200003-200208

T=2.36-2.38

sub90520-25045

main90520-26057iRZF84200003-200208

T=2.38-2.40

sub90520-25046

main90520-26058iRZF84200003-200208

T=2.40-2.42

sub90520-25047

main90520-26059iRZF84200003-200208

T=2.42-2.44

sub90520-25048

main90520-26062iRZF84200003-200208

T=2.18-2.20

sub90520-25049

main90520-26063iRZF84200003-200208

T=2.20-2.22

sub90520-25050

main90520-26064iRZF84200003-200208

T=2.22-2.24

sub90520-25051

main90520-26065iRZF84200003-200208

T=2.24-2.26

sub90520-25052

main90520-26066iRZF84200003-200208

T=2.26-2.28

sub90520-25053

main90520-26067iRZF84200003-200208

T=2.48-2.50

sub90520-25054

main90520-26068iRZF84200003-200208

T=2.50-2.52

sub90520-25055

main90520-26069iRZF84200003-200208

T=2.52-2.54

sub90520-25056

main90521-29070iKF60..FD199612-200612

T=2.375-2.425

main90521-29071iKF60..FD199612-200612

T=2.425-2.475

main90521-29072iKF60..FD199612-200612

T=2.475-2.525

main90521-29073iKF7#,LF7#,RZF71199612-200612

T=2.525-2.575

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-22010iKF60..SD200208-200612

NO PAINT

main37402-22010iKF80..SHRV..4FC199612-200612

main37402-22020iKF60..FD199612-200612

RED PAINTED

main37402-30011iRZF84200003-200305

NO PAINT

sub04371-60070

sub04371-60100

main37402-30021iRZF84200003-200305

RED PAINTED

sub04371-60070

sub04371-60100

22 parts on this diagram · 5 diagrams in section
