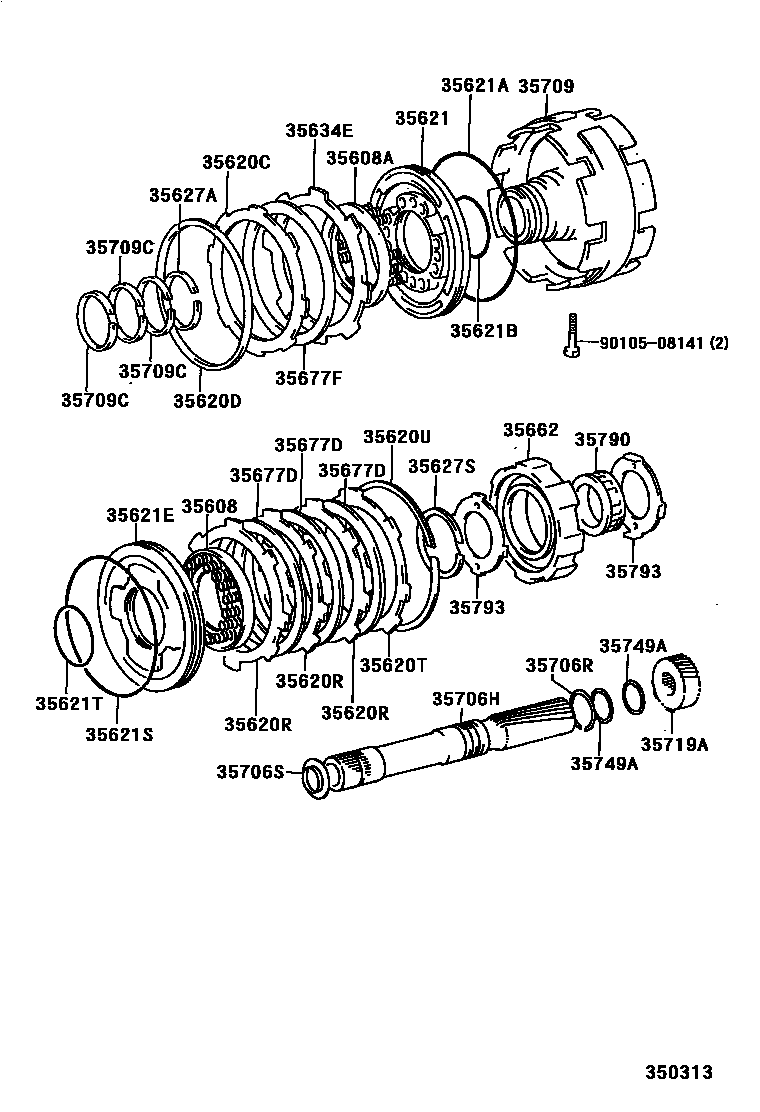

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A45DL,A45DE 0003 1A340F 0004 1A45DE,A45DL

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-20010iKF8#,RZF81,82..(SHRV,SRF)..4FC..(DLX,GL)200208

FRONT

main35608-22010iKF72,80..4FC;KF82..4FC..RHD199911-200212

REAR

main35608-30020iRZF81,82..4FC..GL200208-200501

REAR

main35608-50010iRZF84,85..4FC199911-200210

35608ASPRING SUB-ASSY, BRAKE PISTON RETURN

main35608-20010iKF70,80..4FC199612-199911

35620CFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iKF70,80..4FC199612-199911

main35675-22140iKF82..4FC..RHD;KF72,RZF71,81..4FC;KF80..4FC..(MA,PHL,TAIW)199911-200212

35620DRING (FOR BRAKE)

main90521-99139iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

35620RPLATE, CLUTCH (FOR REAR BRAKE)

main35634-22060×3iKF70,80..4FC199612-199911

main35648-30020×3iKF82..4FC..RHD;KF72,RZF71,81..4FC;KF80..4FC..(MA,PHL,TAIW)199911-200212

35620TFLANGE, CLUTCH (FOR REAR BRAKE)

main35675-22010iKF70,80..4FC199612-199911

main35676-22030iKF82..4FC..RHD;KF72,RZF71,81..4FC;KF80..4FC..(MA,PHL,TAIW)199911-200212

35620URING (FOR REAR BRAKE)

main90521-99139iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

35621PISTON, BRAKE, NO.1

main35624-22010iKF8#,RZF81,82..(SHRV,SRF)..4FC..(DLX,GL)200208

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99110iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199808-200212

main90301-99192iKF70,80..4FC199612-199808

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-56007iKF8#,RZF81,82..(SHRV,SRF)..4FC..(DLX,GL)200208

main90301-57188iKF70,80..4FC199612-199808

35621EPISTON, BRAKE (FOR REAR BRAKE)

main35621-30010iKF80..SHRW..TAIW200208-200612

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99007iKF70,80..4FC199612-199808

main90301-99107iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199808-200212

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-56007iKF8#,RZF81,82..(SHRV,SRF)..4FC..(DLX,GL)200208

main90301-57188iKF70,80..4FC199612-199808

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iKF8#,RZF81,82..(SHRV,SRF)..4FC..(DLX,GL)200208

35627SRING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)

main90520-52262iKF70,80..4FC199612-199911

35634EPLATE, CLUTCH (FOR BRAKE)

main35634-22060×3iKF82..4FC..RHD;KF72,RZF71,81..4FC;KF80..4FC..(MA,PHL,TAIW)199911-200212

35662HUB, BRAKE

main35662-30010iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-60010×4iRZF84,85..4FC200210-200612

35677DDISC, CLUTCH (FOR REAR BRAKE)

main35677-22070×3iKF80..SHRW..TAIW200208-200612

main35677-30020×2iKF70,80..4FC..GEN199911-200001

35677FDISC, CLUTCH (FOR BRAKE)

main35677-30100iKF70,80..4FC..GEN199911-200001

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30050iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

main35706-30061iRZF84,85..4FC199911-200210

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iKF70,80..4FC199612-200005

main35789-43020iKF72,82..4FC200001-200005

35709SUPPORT SUB-ASSY, CENTER

main35709-12020iRZF81..4FC..RHD;KF8#,RZF82..(SHRV,SRF)..4FC..(DLX,GL)..(MA,PHL,TAIW)200208

main35709-28010iKF70,80..4FC..GEN199911-200001

main35709-30051iKF82..4FC..RHD200208-200406

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010×3iKF8#..(SHRV,SRF)..4FC..(DLX,GL)200208

main35617-28010×3iRZF71,81..4FC200010-200211

35719AGEAR, REAR PLANETARY SUN

main35719-30050iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010×2iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

main35749-30010×2iRZF84,85..4FC200210-200612

35790CLUTCH ASSY, 1 WAY

main35790-30050iRZF84,85..4FC199911-200210

main35791-30020iKF7#,8#,RZF71,81..4FC199612-200109

main35791-30100iKF82..4FC..RHD;KF72,80,RZF71,81..4FC200109-200212

35793RETAINER, 1 WAY CLUTCH

main35793-22011×2iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

9010508141

main90105-08141

30 parts on this diagram · 3 diagrams in section
