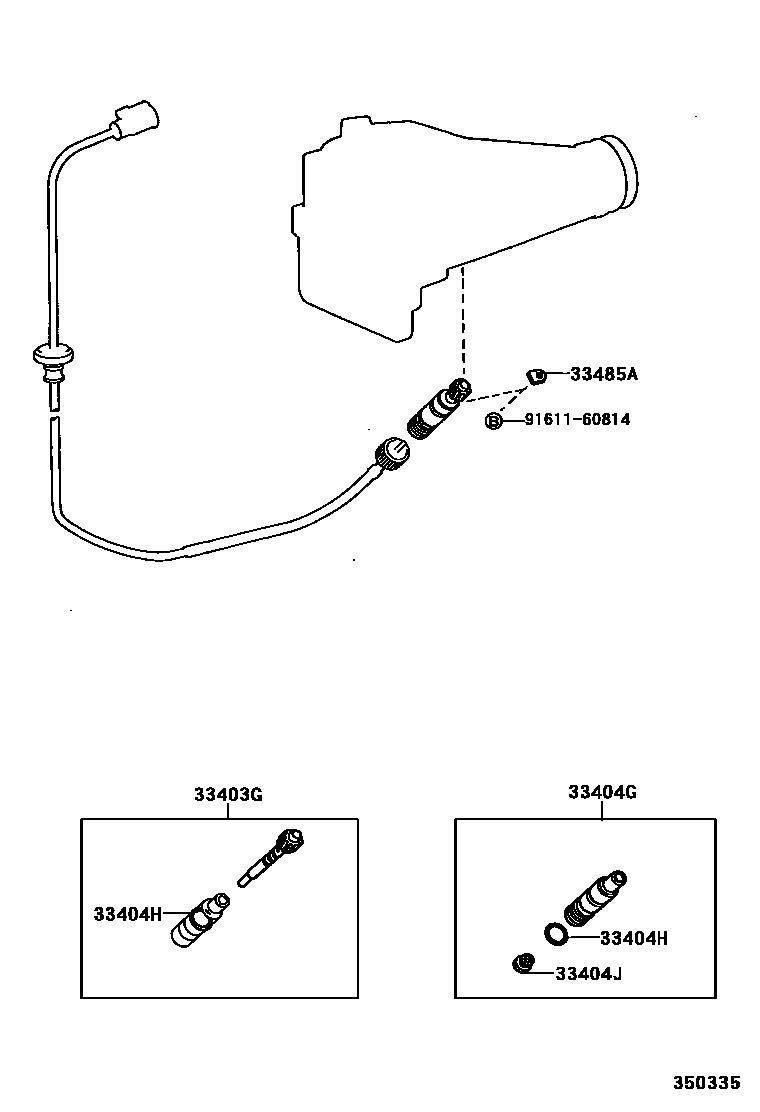

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A45DL,A45DE,A340E 0002 1A340E,A340F

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29135iRZF85..4FC200210

N=33,MARK 33:10

main33403-29235iRZF84200003-200210

N=20,MARK 20:6

main33403-29245iKF8#..4FC200211

N=19,MARK 19:5

main33482-29105iRZF71,81..4FC200010-200211

N=22,MARK 22:6

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-22010iRZF85..4FC199911-200210

main33404-30040iRZF84;KF80..SHRW..TAIW200208-200612

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iRZF84;KF80..SHRW..TAIW200208-200612

main96711-24030iRZF85..4FC199911-200210

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iKF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC199612-200212

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iKF82..4FC..RHD;KF7#,80,RZF71,81,84,85..4FC199612-200212

9161160814

main91611-60814

6 parts on this diagram · 2 diagrams in section
