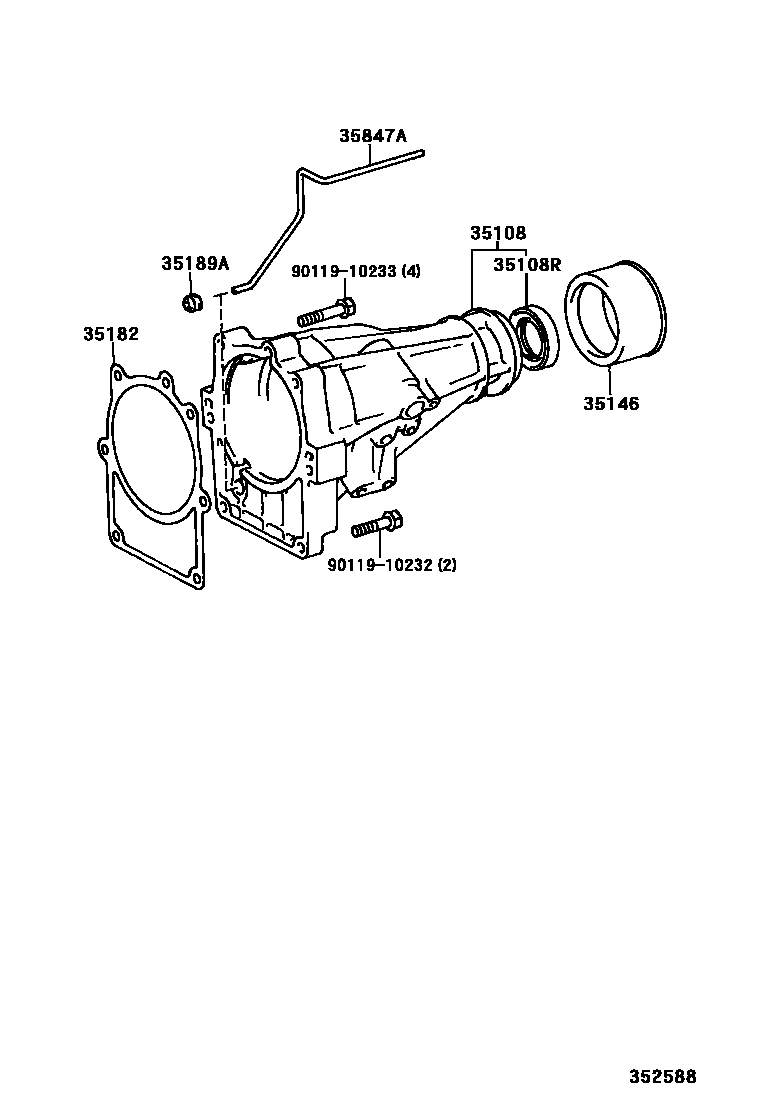

EXTENSION HOUSING (ATM)

0001 1A340E 0002 1A45DE

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-28020iRZF71,81..4FC200010-200208

main35108-28030iKF72,82..4FC200001-200208

main35108-35040iKF80..SRF..4FC200210-200212

main35108-35050iRZF84200210-200612

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38032iKF82..4FC..RHD;KF7#,80,RZF71,81..4FC199612-200212

main90311-40001iRZF84200003-200210

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30020iKF82..4FC..RHD;KF7#,80,RZF71,81,84..4FC199612-200212

35182GASKET, EXTENSION HOUSING (ATM)

main35182-28010iKF82..4FC..RHD;KF7#,80,RZF71,81,84..4FC199612-200212

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iKF82..4FC..RHD;KF7#,80,RZF71,81,84..4FC199612-200212

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iKF82..4FC..RHD;KF7#,80,RZF71,81,84..4FC199612-200212

9011910232

main90119-10232

9011910233

main90119-10233

8 parts on this diagram · 2 diagrams in section
