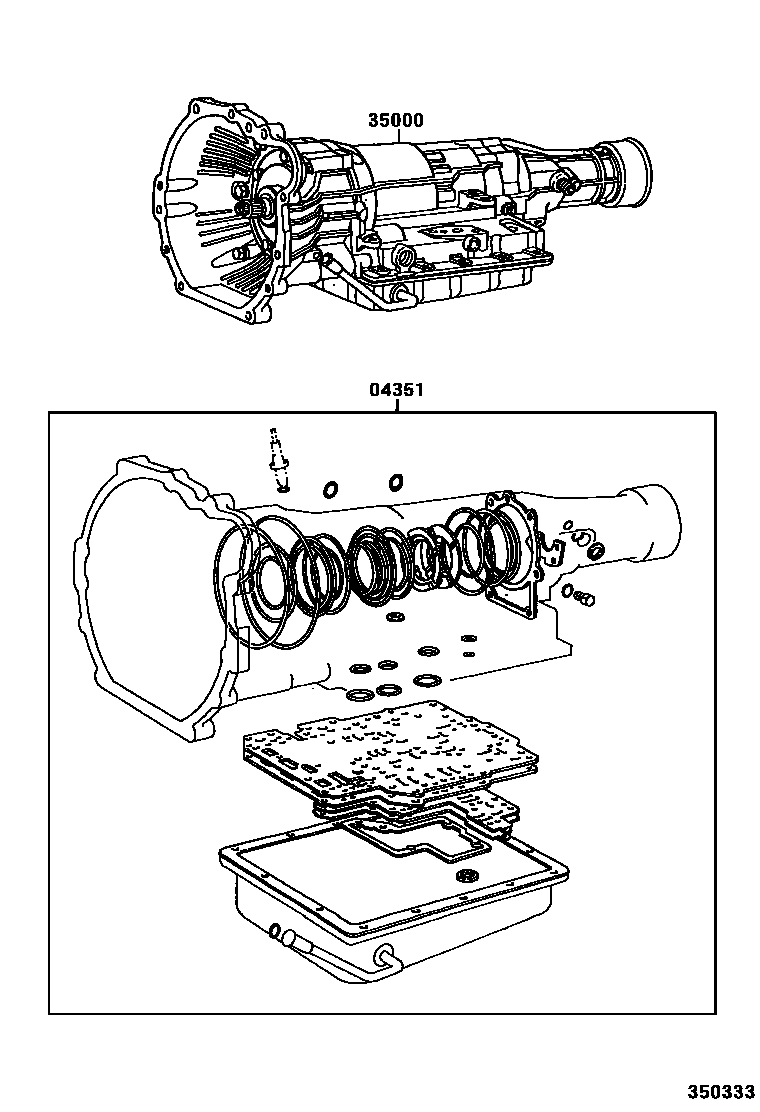

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A45DL,A45DE 0002 1A340E,A340F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-14030iKF70,80..4FC..GEN199612-200001

main04351-25060iKF80..4FC..(MA,PHL,TAIW)199804-200005

main04351-30120iRZF81..4FC..RHD;KF8#,RZF82..4FC..(DLX,GL)..(MA,PHL,TAIW)200208-200408

main04351-30800iRZF85..4FC200311-200612

main04351-30810iRZF84200311-200612

main04351-38010iKF82..4FC..RHD200208-200406

main04351-38020iRZF84,85..4FC199911-200210

main04351-38021iRZF84,85..4FC200210-200311

main04351-38030iKF80..SHRW200408-200612

35000TRANSMISSION ASSY, AUTOMATIC

main35000-38010iKF70,80..4FC..GEN199612-200001

main35000-38020iKF80..SHRW..TAIW200210-200612

A45DE

main35000-38030iRZF85..4FC199911-200210

A340F

main35000-38040iKF82..4FC..RHD200208-200406

A45DE

main35000-38050iRZF84200210-200612

A340E

main35000-38060iRZF81,82..4FC..GL200208-200501

A45DE

2 parts on this diagram · 2 diagrams in section
