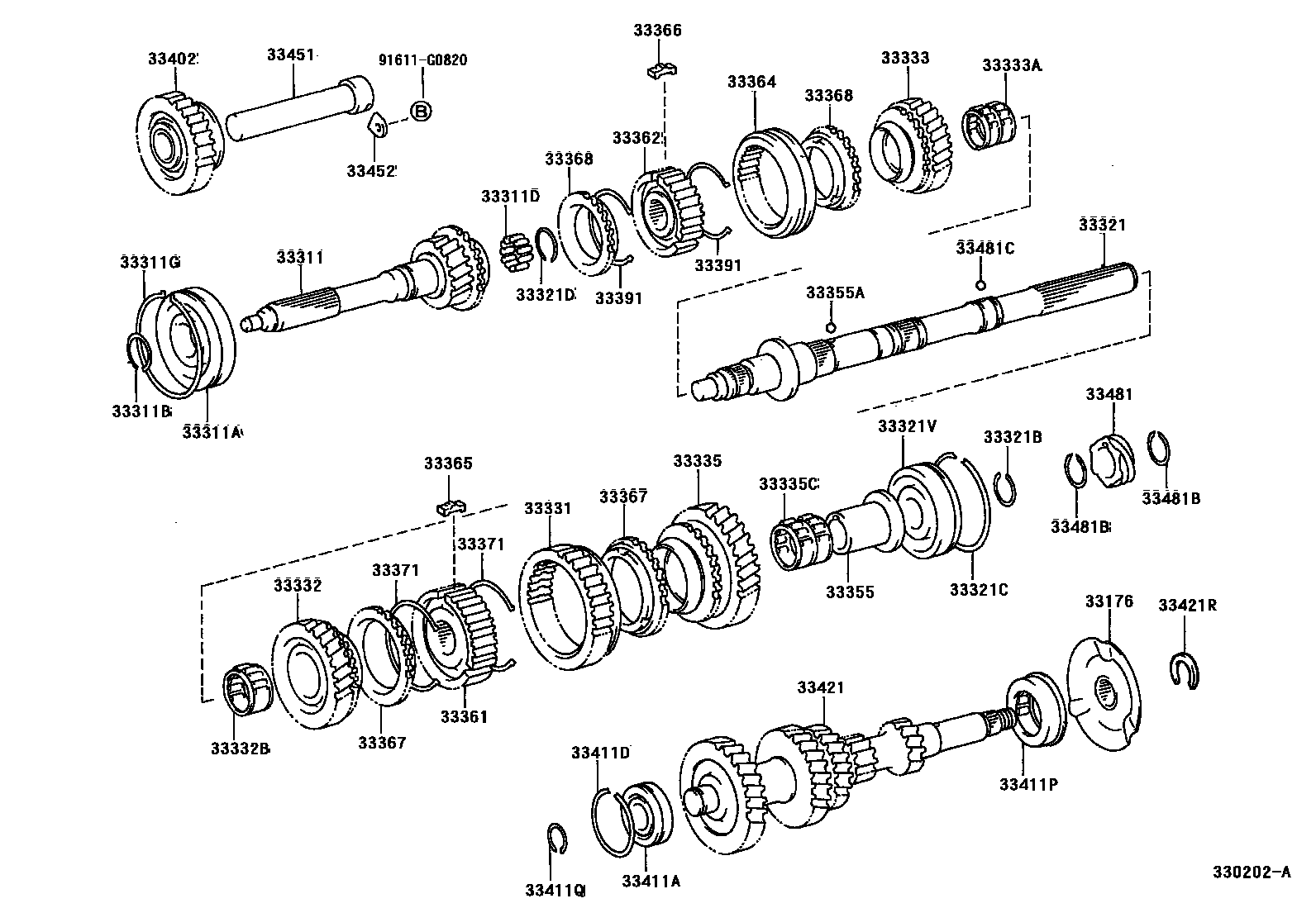

TRANSMISSION GEAR (MTM)

0001 1G48 0002 1G52,G53,G58

33176SEPARATOR, MANUAL TRANSMISSION OIL, NO.1

main33176-35011iKF60,70,80,LF60,80..STD..RHD199612-200001

33311SHAFT, INPUT

main33301-0W010iKF60,7#,8#,LF60,7#,80,82,YF60,80..MTM199612-200010

main33301-0W030iRZF85..5F..LHD199911-200210

main33301-0W060iLF61,81,85,RZF80,85..SA200010-200306

TAP

main33301-35080iLF61,81,85,RZF61,80,81,85..SA200306-200503

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32024iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.05,MARK 0

main90520-30215iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=2.10,MARK 1

main90520-30216iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=2.15,MARK 2

main90520-30217iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=2.20,MARK 3

main90520-30218iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.25,MARK 4

main90520-30219iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=2.30,MARK 5

33311DBEARING, INPUT SHAFT

main90361-06002×13iKF60..FD200208-200405

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-76002iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

33321SHAFT, OUTPUT

main33321-0B020iKF60..FD200208-200405

main33321-0W020iKF60,7#,8#,LF60,72,80,82,RZF71,81..5F; LF61,81,RZF80,YF60,80200010-200208

TAP

main33321-0W040iLF85,RZF85..5F200210-200410

TAP

main33321-35092iLF61,81,RZF80,YF60,80200010-200306

AISIN

main33321-60090iLF85,RZF85..SA200306-200612

AISIN

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-25005iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=2.67-2.72,MARK A

main90520-25006iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=2.73-2.78,MARK B

main90520-25009iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=2.79-2.84,MARK C

main90520-25010iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=2.85-2.90,MARK D

main90520-25011iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.91-2.96,MARK E

main90520-25012iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=2.97-3.02,MARK F

main90520-25013iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=3.03-3.08,MARK G

main90520-25014iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=3.09-3.14,MARK H

main90520-25015iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=3.15-3.20,MARK J

main90520-25016iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=3.21-3.26,MARK K

main90520-25017iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=3.27-3.32,MARK L

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-71221iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=1.65,ID=71.1

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28010iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=1.85-1.90,MARK D-1

main90520-28011iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=1.95-2.00,MARK E-1

main90520-28012iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=1.75-1.80,MARK C-1

main90520-28013iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.05-2.10,MARK F-1

main90520-28245iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=1.80-1.85,MARK D

main90520-28246iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=1.90-1.95,MARK E

main90520-28248iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.00-2.05,MARK F

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-30059iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

33331GEAR, REVERSE

main33331-0K020iLF61,81,85,RZF80,85..SA200307-200503

TAP

main33331-0W010iKF60..RHD200208-200612

main33331-0W020iLF61,81,85,RZF80,85..SA200010-200306

TAP

main33331-35061iLF61,81,85,RZF80,85,YF60,80..SA200010-200306

AISIN

main33331-35062iLF61,8#,RZF80,85..SA200501-200503

33332GEAR, 2ND

main33033-0W010iKF80,LF80..5F..PHL199810-200211

main33033-0W020iLF61,81,85,RZF85,YF60,80..SA; RZF80200201-200306

TAP; TAP,AXLE CODE=B01A

main33033-35011iRZF80200306-200503

main33033-35021iLF61,81,85,RZF80,85,YF60,80..SA200010-200306

AISIN

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-38002iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

main90364-T0016iKF60,82,LF61,81,82,RZF61,80,81,82..5F..(GEN,PHL,SA)200412-200707

(L)

33333GEAR, 3RD

main33034-0W010iKF82,LF82,RZF85..5F..(PHL,TAIW)200210-200612

main33034-0W040iLF61,81,85,RZF85,YF60,80..SA; RZF80200010-200306

TAP; TAP,AXLE CODE=B01A

main33034-35060iLF61,81,85,RZF85,YF60,80..SA; RZF80200010-200306

AISIN; AISIN,AXLE CODE=B01A

main33034-35100iRZF80200306-200503

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-35005iKF60..RHD200412-200707

(J)

main90364-T0017iKF60,82,LF61,81,82,RZF61,80,81,82..5F..(GEN,PHL,SA)200412-200707

(L)

33335GEAR, 1ST

main33032-0W010iKF82,LF82..5F..RHD;KF60,7#,80,LF60,72,80,RZF71,81..5F200010-200302

main33032-26020iLF61,81,85,RZF80,85,YF60,80..SA200010-200306

AISIN

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-39011iKF60..RHD200208-200412

main90364-T0015iKF60,82,LF61,81,82,RZF61,80,81,82..5F..(GEN,PHL,SA)200412-200707

(L)

33355RACE, 1ST GEAR BEARING INNER

main33355-0W010iKF60,7#,8#,LF6#,7#,8#,RZF80,85,YF60,80..MTM199612-200010

main33355-35020iLF61,81,85,RZF61,80,81,85..SA200306-200503

AISIN

33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

main90360-06004iLF60,80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82,85..(LUB,SD,T2)..5F..(DLX,GL,STD)200208-200707

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-0W010iKF60,7#,8#,LF6#,7#,8#,RZF80,85,YF60,80..MTM199612-200010

main33361-35020iLF61,81,85,RZF80,85,YF60,80..SA200010-200306

AISIN

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-0K010iKF60,8#,LF61,81,85,RZF61,80,81,85..5F..(MA,SA,TAIW,VN)200410-200510

main33362-0W010iKF60..FD200406-200412

main33362-35040iLF61,81,85,RZF61,80,81,85..SA200306-200503

AISIN

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-0W010iKF82,LF82..5F..RHD;KF60,7#,80,LF60,72,80,RZF71,81,85..5F..(GEN,MA,PHL,TAIW,VN)200010-200302

main33364-26020iLF61,81,85,RZF80,85,YF60,80..SA200010-200306

AISIN

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-35020×3iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

main33365-35021×3iKF60,8#,LF61,81,82,85,RZF61,80,81..5F..(MA,PHL,SA,TAIW,VN)200312-200707

TAP

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-35040×3iRZF82,85..5F..LHD;KF60,7#,8#,LF60,80,82,RZF81..5F..GEN200208-200309

main33366-35041×3iLF60,RZF82,85..5F;KF60,7#,8#,LF80,82,RZF81..(LUB,SD)..5F..GEN200309-200707

TAP

33367RING, SYNCHRONIZER, NO.1

main33368-20012×2iLF60,80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82,85..(LUB,SD,T2)..5F..(DLX,GL,STD)200208-200707

33368RING, SYNCHRONIZER, NO.2

main33367-14010×2iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14031×2iLF60,80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82,85..(LUB,SD,T2)..5F..(DLX,GL,STD)200208-200707

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010×4iKF60..FD200405-200406

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-0W010iYF60,80200010-200306

TAP

main33402-0W020iLF61,81,85,RZF80,85..SA200010-200306

TAP

main33402-35050iLF61,81,85,RZF80,85,YF60,80..SA200010-200306

AISIN

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-25023iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-49222×2iKF60..FD200405-200406

T=1.07,OD=55.6

33411PBEARING, COUNTERSHAFT CENTER

main90365-31006iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2

main90520-23089iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.10-2.15

main90520-23090iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.20-2.25

main90520-23115iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.05-2.10

main90520-23143iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.15-2.20

main90520-23144iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=2.25-2.30

main90520-23145iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=2.30-2.35

33421GEAR, COUNTER

main33421-0W010iKF82,LF82..5F..PHL200211-200501

main33421-0W070iKF60..RHD200208-200612

main33421-35170iRZF80200306-200503

main33421-35180iYF60,80200010-200306

AISIN

main33421-35190iLF61,81,85,RZF80,85..SA200306-200503

AISIN,AXLE CODE=B01A

33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)

main90520-19008iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.85

main90520-19009iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.90

main90520-19010iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=2.95

main90520-19011iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=3.00

main90520-19012iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=3.05

main90520-19013iLF80..GEN;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,81,82,85,RZF61,80,81,82,85..5F..(DLX,GL,STD)200208-200707

T=3.10

main90520-19014iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

T=3.15

33451SHAFT, REVERSE IDLER GEAR

main33451-0K020iLF61,81,RZF61,80,81200501-200503

TAP

main33451-28010iKF60..SD200208-200412

main33451-28011iKF60..RHD; RZF85..5F..LHD;KF8#,LF61,81,RZF61,80,81..5F..(MA,SA,VN)200502-200612

33452STOPPER, REVERSE IDLER GEAR SHAFT

main33452-36030×2iKF60..FD200405-200406

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-20070iKF80,RZF81..5F..(MA,SA,TAIW);KF60,72,82,RZF61..(LUB,T2)..5F200208-200707

N=5,MARK 5X17-19

main33481-22010iLF82..DLX..RHD;LF61,7#,81,RZF80;LF80..(DLX,GL)..(GEN,PHL)199612-200306

N=6,MARK 6X18-20

main33481-27010iKF60,70,80..(LUB,SD)..GEN200208-200612

N=4,MARK 4X16-18

main33481-30040iLF82,RZF82..5F..GL;LF60,80,RZF81..5F..GEN200208-200501

N=6,MARK 6X21-23

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-26061×2iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80..MTM199612-200306

T=1.50,OD=31.3

33481CBALL, REVERSE SHIFT RESTRICT

main90360-06004iKF60..FD200406-200707

91611G0820

main91611-G0820

42 parts on this diagram · 2 diagrams in section
