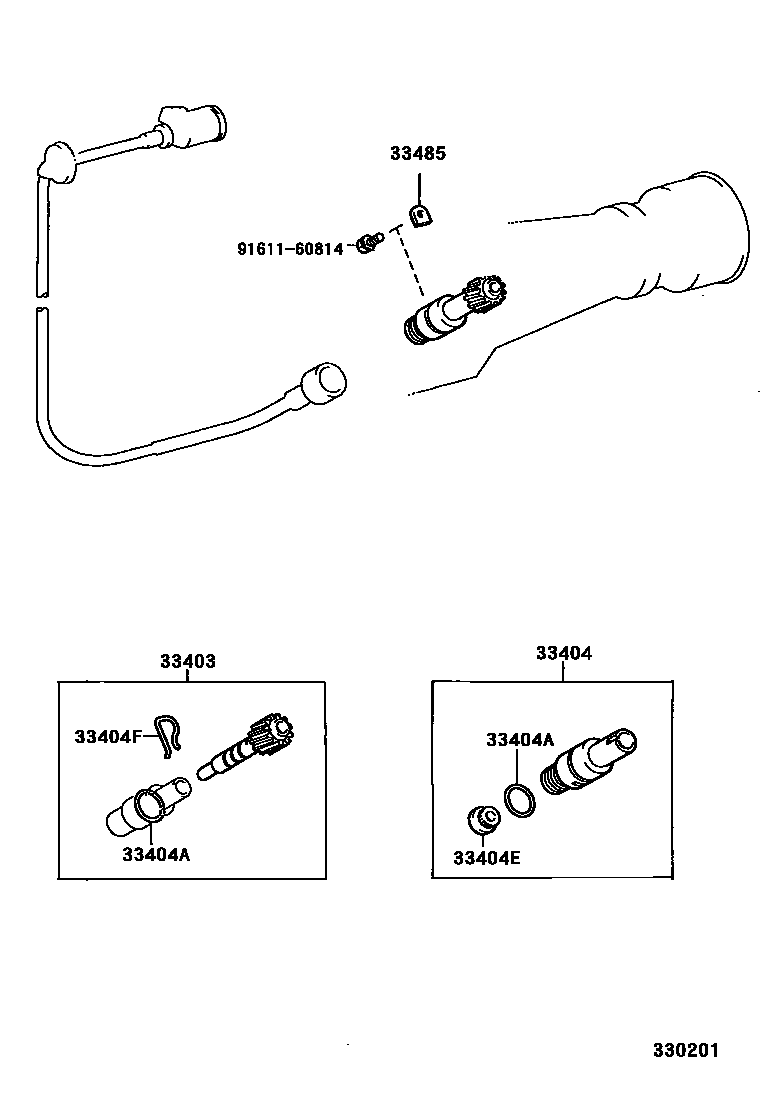

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1G48,G52,G58 0002 1G53,G58

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29125iLF85,RZF85..SA200306-200503

N=32,MARK 32:10

main33403-29135iRZF85..5F..LHD199911-200210

N=33,MARK 33:10

main33403-29145iLF85,RZF85..SA200004-200306

N=31,MARK 31:10

main33482-29035iRZF81..5F;LF60,80,RZF71..5F..GEN200001-200501

N=22,MARK 22:6

main33482-29045iKF60,70,80..4F;KF80..STD..LHD;KF70,80..5F..(DLX,GL,GLX);KF60,72,82..(LUB,T2)..5F..(GEN,TAIW)199612-200302

N=19,MARK 19:5

main33482-29055iLF60,80..STD199612-200001

N=17,MARK 17:5

main33482-39025iLF80..DLX..RHD;LF61,70,81,RZF80..DLX,STD199612-200306

N=19,MARK 19:6

main33482-39035iLF82..GL199804-200501

N=21,MARK 21:6

main33482-39045iLF80..DLX..LHD;LF72,82..DLX..RHD;LF80,RZF80..GL..(GEN,PHL,SA)199801-200503

N=20,MARK 20:6

main33482-39085iRZF61,81..SA200004-200503

N=18,MARK 18:5

main33482-39095iKF60,70,80..GEN200001-200208

N=16,MARK 16:4

main33482-39135iRZF80200207-200503

N=18,MARK 18:6

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iLF85,RZF85..5F199911-200612

main33404-35010iKF60..RHD199612-200612

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80..MTM199612-200612

main96711-24030iLF85,RZF85..5F199911-200612

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200612

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200612

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200612

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
