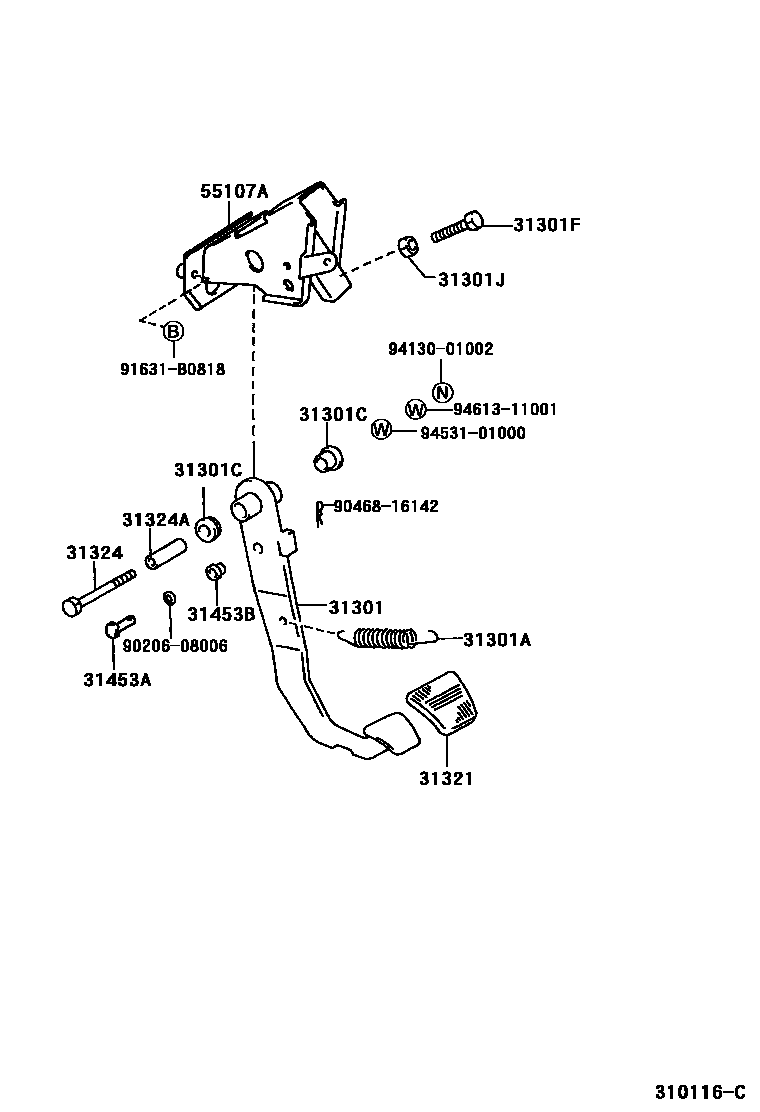

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0B010iKF80..5F..RHD;KF60,7#,82,LF60,8#,RZF61,80,81,85..5F..(GEN,SA)..RHD200208-200612

main31301-0B021iKF82..5F..PHL200211-200501

main31301-0B031iLF82,RZF82..5F..LHD200211-200501

main31301-0B041iKF80..5F..TAIW;KF60,82..TAIW,VN200210

main31301-0B060iLF61,81,85,RZF85..5F..LHD199911-200306

31301ASPRING(FOR CLUTCH PEDAL)

main90905-06035iKF60,80,YF60,80..5F..LHD199810-200306

main90905-07005iKF60,7#,8#,LF60,7#,8#,RZF71,80,81,85,YF60,80..MTM..RHD199612-200306

main90949-03071iLF61,81,82,85,RZF61,81..LHD200211-200503

main90949-03096iRZF82,85..5F..LHD200210-200612

31301CBUSH(FOR CLUTCH PEDAL)

main90080-38096×2iKF60,70,80,LF60,70,80..MTM199612-199706

main90386-13007×2iKF60,7#,8#,LF60,7#,8#,RZF71,80,81,85,YF60,80..MTM..RHD199706-200306

main90386-13015×2iRZF85..5F..LHD200210-200612

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

31321PAD, CLUTCH PEDAL

main31321-0B010iKF60,7#,8#,LF60,80,82,RZF81..5F..GEN200208-200612

main31321-0B030iKF80,LF80..5F..MA200103-200212

main31321-14010iKF80,LF80,RZF81..5F..PHL199810-200211

main31321-14020iKF60,80,LF61,81,85,RZF80,85,YF60,80..5F..(SA,TAIW,VN)199902-200306

31324SHAFT, CLUTCH PEDAL

main90101-10015iKF60,80,LF61,80,81,85,RZF81,85,YF60,80..5F..LHD199810-200306

main91112-61060iKF80..5F..RHD;KF60,7#,82,LF60,8#,RZF61,80,81,85..5F..(GEN,SA)..RHD200208-200612

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iLF60,80,RZF85..GEN,SA;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82..(LUB,T2)..5F..(DLX,GL,STD)200208

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iLF60,80,RZF85..GEN,SA;KF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF61,81,82,85,RZF61,80,81,82..(LUB,T2)..5F..(DLX,GL,STD)200208

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iKF82,LF82..5F..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,85,YF60,80..MTM199612-200306

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0B010iKF80..5F..RHD;KF60,7#,82,LF60,8#,RZF61,80,81,85..5F..(GEN,SA)..RHD200208-200612

main55107-0B020iLF80,RZF81..5F..LHD199810-200211

main55107-0B030iKF82..5F..PHL200211-200411

main55107-0B040iKF80..5F..TAIW;KF60,82..TAIW,VN200210-200707

main55107-0B060iLF61,81,85,RZF61,81,85..5F..(SA,TAIW)..LHD200210-200612

9020608006

main90206-08006

9046816142

main90468-16142

91631B0818

main91631-B0818

9413001002

main94130-01002

9453101000

main94531-01000

9461311001

main94613-11001

17 parts on this diagram · 11 diagrams in section
