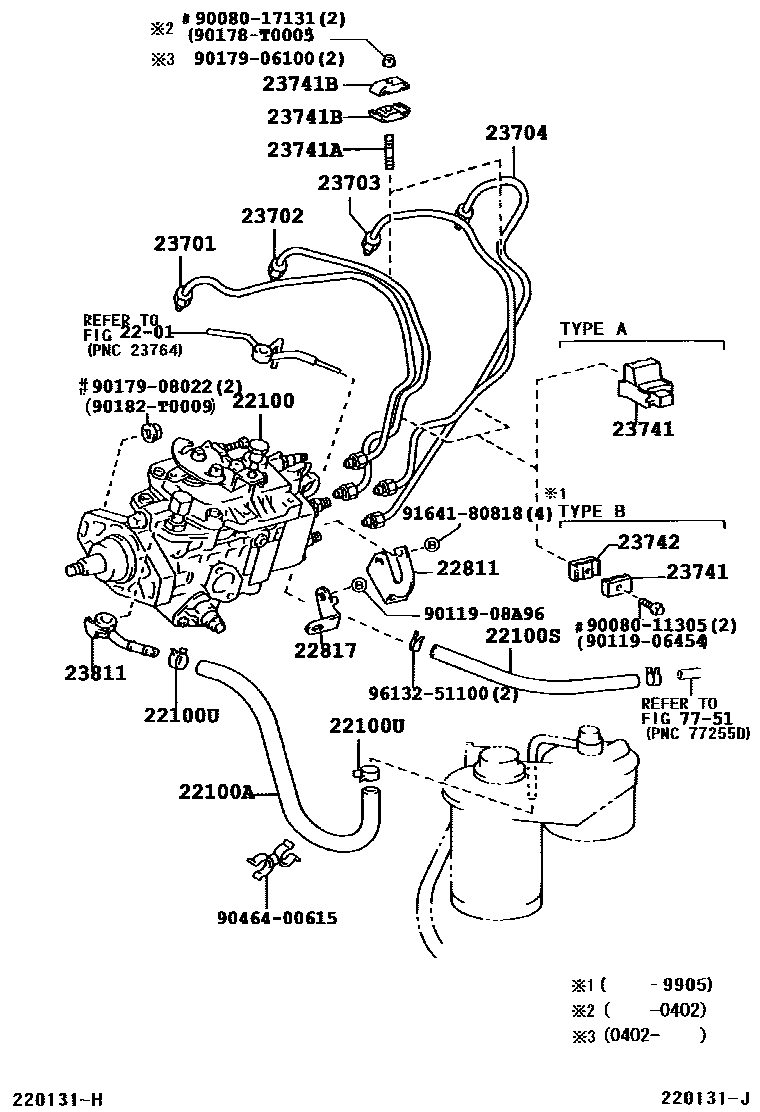

INJECTION PUMP ASSEMBLY

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54770i2L..LF60,80..STD199612-200001

sub22100-54780

main22100-54780i2L..LF70,80..5F..GEN199612-200001

W(TACHO METER PICK UP SENSOR)

main22100-54810i2L..LF60,80..CBU199612-199708

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP SENSOR)

main22100-5B530i2L..LF72,82;2L..LF80..(GL,GLX)..LHD199810-200501

main22100-5B590i2L..LF80..MA199804-200212

main22100-5B770i2L..LF60,80..(DLX,STD)..CBU..RHD199708-200001

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP SENSOR)

main22100-5B770i2L..LF60,80,82..(DLX,STD)..RHD200001-200406

W(HIGH ALTITUDE COMPENSATOR)

main22100-5B780i2L..LF60,80..GEN199810-200501

main22100-5D080i5L..LF85;5L..LF81..RHD200004-200503

main22100-5D090i5L..LF61200004-200012

sub22100-5D080

main22100-5D270i5L..LF61,81..LHD200012-200503

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95333-08030i2L,5L..LF61,81,82,85..PHL,SA199810-200306

L=300

main95333-08040i2L..LF60,80,82..GEN199612-200406

L=400

sub95337-08040

main95333-08040i2L..LF80..MA199804-200212

L=400(*H,L=340)

sub95337-08040

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main95333-06040i2L..LF82;2L,5L..LF6#,80,81,85..GEN,SA199612-200306

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main96132-41300i2L,5L..LF6#,7#,8#199612-200208

sub96132-51300

main96132-51300i2L,5L..LF61,80,81,85..MA,PHL,SA200208-200306

22811STAY, INJECTION PUMP, NO.1

main22811-05010i2L..LF60,72,80,82..GEN,PHL199805-200402

(L)

main22811-05010i2L..LF80..STD;2L..LF60,72,82;2L..LF80..DLX..LHD199805-200212

main22811-05010i2L..LF60,80..(DLX,STD)..CBU199612-200208

PAPUA NEW GUINEA SPEC OR FIJI SPEC,(L)

main22811-54041i2L..LF60,80..(DLX,STD)..CBU199612-199804

PAPUA NEW GUINEA SPEC OR FIJI SPEC,(J)

sub22811-54042

main22811-54042i2L,5L..LF61,80,81,85..MA,SA199805-200503

(J)

main22811-54042i2L..LF60,70,80199804-200406

PAPUA NEW GUINEA SPEC OR FIJI SPEC,(J)

main22811-54042i5L..LF61,81,85200004-200009

22817BRACKET, PUMP STAY

main22817-54011i5L..LF61,81,85200004-200503

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-05010i2L..LF82..RHD;2L..LF60,7#,80199612-200402

(L)

main23701-54140i5L..LF61,81,85200004-200503

main23701-54140i2L..LF82;2L..LF60,80..GEN199612-200402

(J)

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-05010i2L..LF82;2L..LF60,80..GEN199612-200402

(L)

main23702-54090i5L..LF61,81,85200004-200306

main23702-54140i2L..LF82..LHD200306-200503

main23702-54140i2L..LF82..RHD;2L..LF60,7#,80199612-200402

(J)

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-05010i2L..LF60,70,80199612-199805

(L)

sub23703-05011

main23703-05011i2L..LF82;2L..LF60,80..GEN199805-200402

(L)

main23703-54100i2L..LF82..RHD;2L..LF60,7#,80199612-200402

(J)

main23703-54100i5L..LF61,81,85200004-200503

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-05010i2L..LF82;2L..LF60,80..GEN199612-200402

(L)

main23704-54100i2L..LF82;2L..LF60,80..GEN199612-200402

(J)

main23704-54100i5L..LF61,81,85200004-200503

23741CLAMP, INJECTION PIPE, NO.1

main23741-05010i2L..LF60,70,80199612-199905

TYPE B:REFER TO ILLUSTRATION

main23741-54030i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199612-200503

TYPE A:REFER TO ILLUSTRATION

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90080-11036i2L..LF60,70,80199612-200402

(L)

main90116-06095i5L..LF61,81,85199612-200503

(J)

main90116-06095i2L..LF60,70,80199805-199810

23741BCLAMP, INJECTION PIPE

main23741-05020i2L..LF60,70,80199612-199905

(L)

main23741-56010i2L..LF60,70,80199612-199905

(J)

main23741-56010i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199905-200503

23742CLAMP, INJECTION PIPE, NO.2

main23742-05010i2L..LF60,70,80199612-199905

TYPE B:REFER TO ILLUSTRATION

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-05030i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199612-200402

(L)

main23811-54172i2L..LF82..RHD;2L,5L..LF6#,7#,80,81,85199612-200503

(J)

7751

9008011305

main90080-11305

9008017131

main90080-17131

9011906454

main90119-06454

9011908A96

main90119-08A96

90178T0005

main90178-T0005

9017906100

main90179-06100

9017908022

main90179-08022

90182T0009

main90182-T0009

9046400615

main90464-00615

9164180818

main91641-80818

9613251100

main96132-51100

28 parts on this diagram · 1 diagram in section
