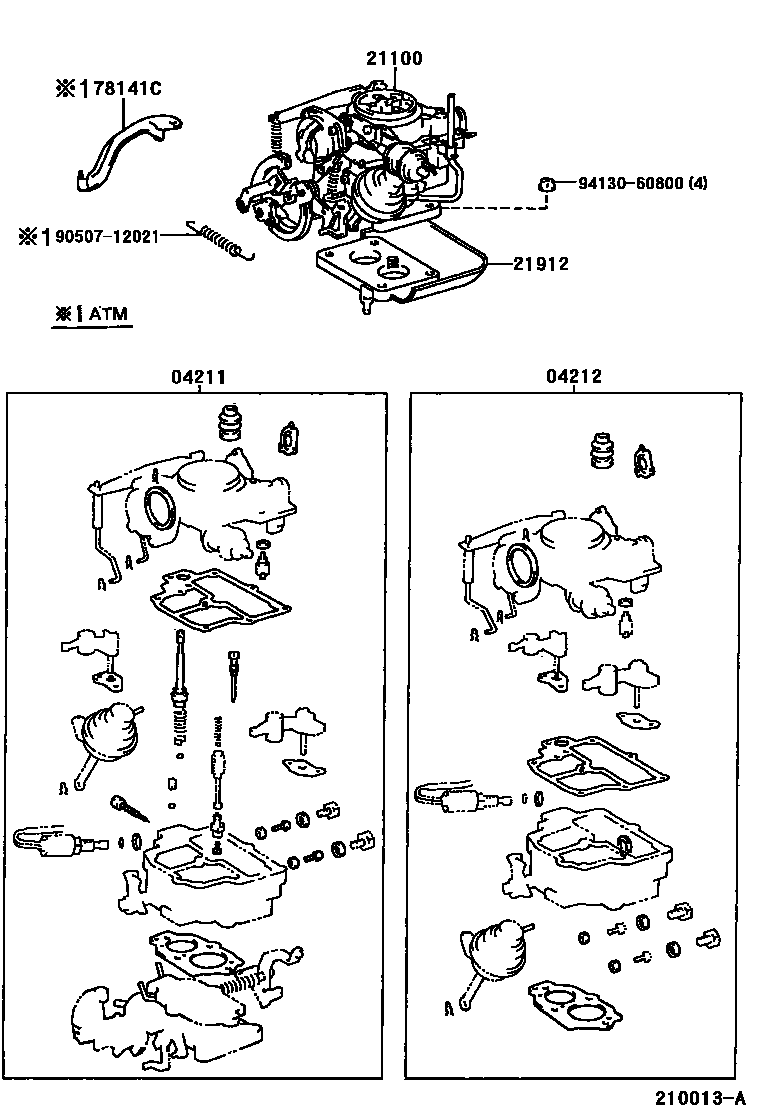

CARBURETOR ASSEMBLY

0001 1 0002 1

04211CARBURETOR KIT

main04211-1E020i7K..KF60,70,80..MTM199612-200208

main04211-1E030i7K..KF70,80..4FC199612-200001

main04211-72450i2Y..YF60,80200004-200306

04212GASKET KIT, CARBURETOR

main04212-10031i7K..KF60,70,80200208-200612

main04212-13042i7K..KF70,80..4FC199612-200001

main04212-72450i2Y..YF60,80200004-200306

21100CARBURETOR ASSY

main21100-1E020i7K..KF60,70,80..MTM199612-200208

main21100-1E030i7K..KF70,80..4FC199612-200001

main21100-72450i2Y..YF60,80200004-200306

21912INSULATOR, CARBURETOR HEAT

main21901-13010i7K..KF60,70,80199612-200208

main21912-73020i2Y..YF60,80200004-200306

78141CBRACKET, ACCELERATOR RETURN SPRING

main78141-38010iKF70,80..4FC..GEN199612-200001

9050712021

main90507-12021

9413060800

main94130-60800

7 parts on this diagram · 2 diagrams in section
