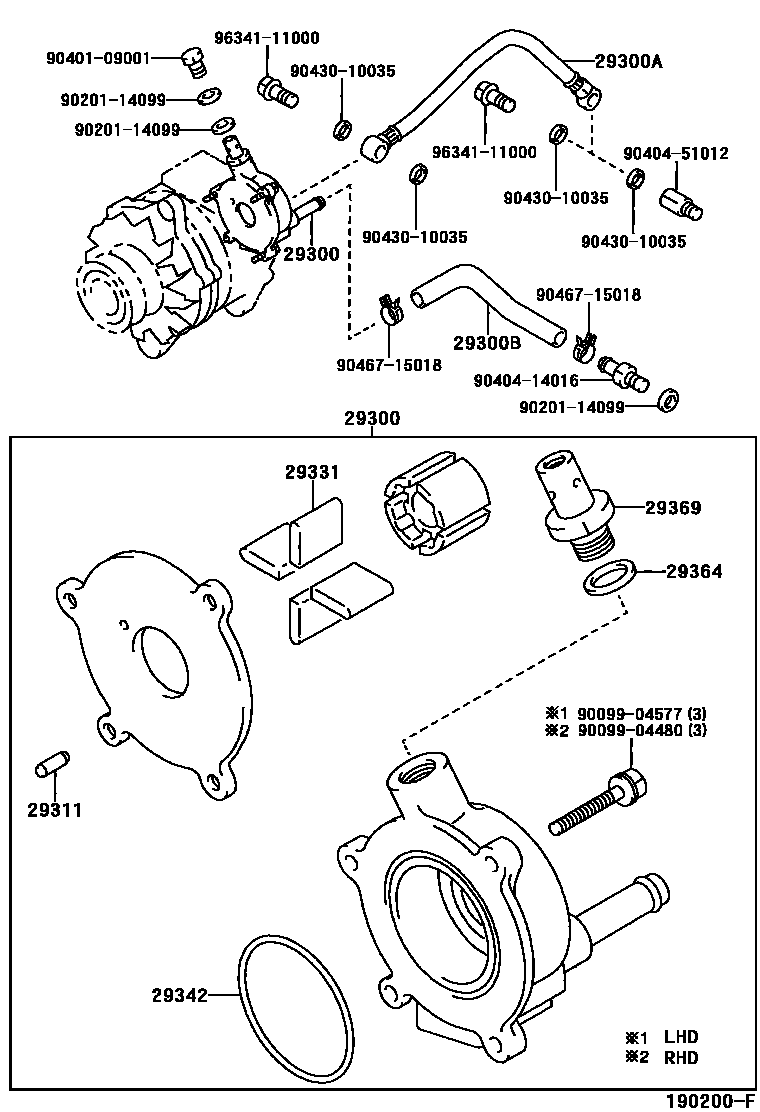

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-05010i2L..LF60,80..4F;2L..LF7#,80,82..(DLX,GL)..GEN199612-200406

main29300-05020i2L..LF80..MA199804-200212

sub29300-54190

main29300-54180i5L..LF61,81,85200004-200503

main29300-54190i2L..LF80..LHD199810-200501

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L..LF82..RHD;2L..LF60,7#,80199612-200501

main90923-02118i5L..LF61,81,85200004-200503

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2L..LF82..RHD;2L..LF60,7#,80199612-200501

main29611-54050i5L..LF61,81,85200004-200503

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L..LF82..RHD;2L..LF60,7#,80199612-200501

29331BLADE, VACUUM PUMP, A

main29331-54130i5L..LF61,81,85200004-200503

main29331-56070i2L..LF82..RHD;2L..LF60,7#,80199612-200501

29342PACKING, VACUUM PUMP

main96740-02063i2L..LF82..RHD;2L..LF60,7#,80199612-200501

29364WASHER, VACUUM PUMP

main29364-66010i2L..LF60,80,82..GEN199612-200503

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L..LF82..LHD199612-200501

main29369-64030i5L..LF61,81,85200004-200503

9009904480

main90099-04480

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040414016

main90404-14016

9040451012

main90404-51012

9043010035

main90430-10035

9046715018

main90467-15018

9634111000

main96341-11000

17 parts on this diagram · 2 diagrams in section
