STARTER

0001 112V 0.8KW 0002 112V 2.0KW 0003 112V 1.0KW 0004 112V 2.2KW 0005 112V 1.4KW 0006 112V 1.1KW

28011CLUTCH SUB-ASSY, STARTER

main28011-54260i5L..LF61,81,85200306-200503

main28011-54380i2L..LF82;2L..LF60,80..GEN200208-200501

main28011-70020i7KE..KF82..VN200208-200512

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i7K#..KF60,7#,8#..GEN,MA,TAIW,VN200005-200302

main28013-70030i7KE..KF82..VN200309-200512

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i7K#,1RZE,2RZE..KF60,7#,8#,RZF71,81,84,85..GEN,MA,TAIW,VN199612-200102

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i7K..KF60..FD200208-200406

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i7KE..KF82..RHD;7K#,1RZE,2RZE..KF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200302

28100STARTER ASSY

main28100-05010i2L..LF60,80,82..GEN200208-200406

12V, 2.0KW

main28100-05020i2L..LF80..MA199804-200212

12V, 2.0KW

main28100-06010i7K#..KF60,7#,8#..GEN199612-200208

12V, 0.8KW

main28100-06020i7KE..KF80..RHD199804-200212

12V, 0.8KW

main28100-06030i7KE..KF60,80..SCB,SHRV200210

12V 0.8KW

main28100-0C020i1RZE,2RZE..RZF61,80,81,85..SA200306-200503

12V 1.1KW

main28100-13080i7KE..KF82..PHL200211-200501

12V 0.8KW

main28100-54280i2L..LF80..LHD199810-200211

12V 2.0KW

main28100-54440i5L..LF61,81,85200004-200306

12V 2.2KW

main28100-75150i1RZE,2RZE..RZF81,82,84,85..GL..(GEN,PHL,TAIW)200208-200612

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-13080i7K#..KF60,80..(SCB,SHRW)..(LUB,SD)..(GEN,TAIW)200208-200612

main28110-54380i2L..LF82;2L..LF60,80..GEN200208-200501

main28110-75150i1RZE,2RZE..RZF81,82,84,85..GL..(GEN,PHL,TAIW)200208-200612

main28115-54260i5L..LF61,81,85200004-200306

28110ABEARING(FOR STARTER HOUSING)

main90099-10171i7KE..KF80..SHRW..TAIW;7K,2RZE..KF60,RZF84,85..(LUB,SD)..(GEN,TAIW)200208-200612

28113LEVER, STARTER PINION DRIVE

main28113-70020i7KE..KF82..RHD;7K#,1RZE,2RZE..KF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200302

28120YOKE ASSY, STARTER

main28120-13081i7K..KF60..FD200208-200406

main28120-54380i2L..LF82..RHD;2L..LF60,7#,80199612-200212

main28120-64040i5L..LF61,81,85200306-200503

main28120-70050i1RZE,2RZE..RZF81,82,84,85..GL..(GEN,PHL,TAIW)200208-200612

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i2L..LF82..RHD;2L..LF60,7#,80199612-200212

main90099-14092×2i7KE..KF80..SHRW..TAIW;7K,2RZE..KF60,RZF84,85..(LUB,SD)..(GEN,TAIW)200208-200612

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13080i7KE..KF82..VN200208-200512

main28130-54380i2L..LF82..RHD;2L..LF60,7#,80199612-200212

28130CBEARING, STARTER FLANGE

main90099-10183i7KE..KF82..RHD;7K#,1RZE,2RZE..KF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200302

28138RUBBER(FOR STARTER BEARING COVER)

main28138-13080×3i7KE..KF82..VN200208-200512

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i2L..LF82..RHD;2L..LF60,7#,80199612-200212

main28140-64040i5L..LF61,81,85200004-200306

main28140-70020i7K..KF60..FD200208-200406

28142BRUSH, STARTER

main28142-70020×2i7KE,1RZE..KF82,RZF82..SRF;7K#,1RZE..KF60,7#,80,RZF81..(SCB,SHRV,SRF)..(LUB,T2)..(GEN,MA,TAIW)200208

28143SPRING, STARTER BRUSH

main28143-54380×4i2L..LF82..RHD;2L..LF60,7#,80199612-200212

main28143-70020×4i7K..KF60..FD200208-200406

main90099-17115×4i5L..LF61,81,85200306-200503

28150SWITCH ASSY, MAGNET STARTER

main28150-10021i7KE..KF82..SRF;7K#..KF60,7#,80..(SCB,SHRV,SRF)..(LUB,T2)..(GEN,MA,TAIW)200208

main28150-54440i5L..LF61,81,85200306-200503

main28150-55060i2L..LF82..RHD;2L..LF60,7#,80199612-200212

main28150-75150i1RZE,2RZE..RZF81,82,84,85..GL..(GEN,PHL,TAIW)200208-200612

28159COVER, STARTER PROTECTOR

main28159-13080i7KE..KF82..RHD;7K#..KF60,7#,80199612-200302

28160ARMATURE ASSY, STARTER

main28160-54380i2L..LF82;2L..LF60,80..GEN200208-200501

main28160-64041i5L..LF61,81,85200004-200306

main28160-70021i7KE..KF82..SRF;7K#..KF60,7#,80..(SCB,SHRV,SRF)..(LUB,T2)..(GEN,MA,TAIW)200208

main28160-70050i1RZE,2RZE..RZF71,81,84,85..GEN,PHL,TAIW199911-200211

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-70020i7KE..KF82..RHD;7K#,1RZE,2RZE..KF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200302

28176SCREW, STARTER

main90068-00007×2i1RZE..RZF71,81..RHD200010-200208

(L)

main90099-00270×2i7K#,1RZE,2RZE..KF60,7#,8#,RZF71,81,84,85..GEN,MA,TAIW,VN; 7KE,1RZE..KF80,RZF81..PHL200102-200103

(J)

28177PLATE(FOR STARTER ARMATURE)

main28177-70020i7K..KF60..FD200208-200406

28199COVER, STARTER

main28199-46080i7KE..KF82..RHD;7K#,1RZE,2RZE..KF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200302

28255GEAR, PLANET

main28255-70020×3i7KE..KF82..RHD;7K#,1RZE,2RZE..KF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200302

28256GEAR, STARTER INTERNAL

main28256-70020i7KE..KF82..RHD;7K#,1RZE,2RZE..KF60,7#,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200302

9009690030

main90096-90030

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009904373

main90099-04373

9009904434

main90099-04434

9009905118

main90099-05118

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9017908204

main90179-08204

9161241035

main91612-41035

9413000802

main94130-00802

9451100800

main94511-00800

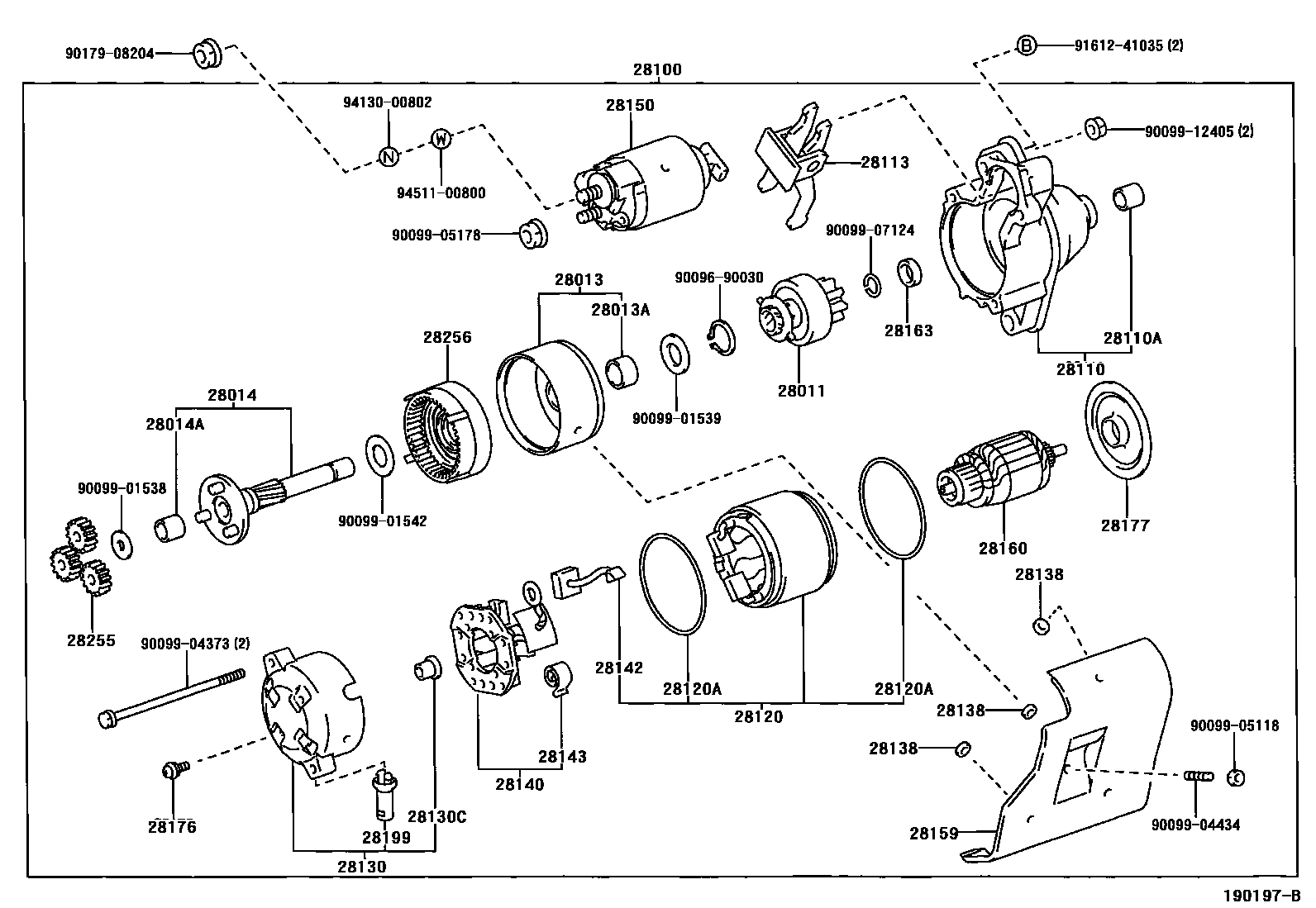

40 parts on this diagram · 6 diagrams in section
