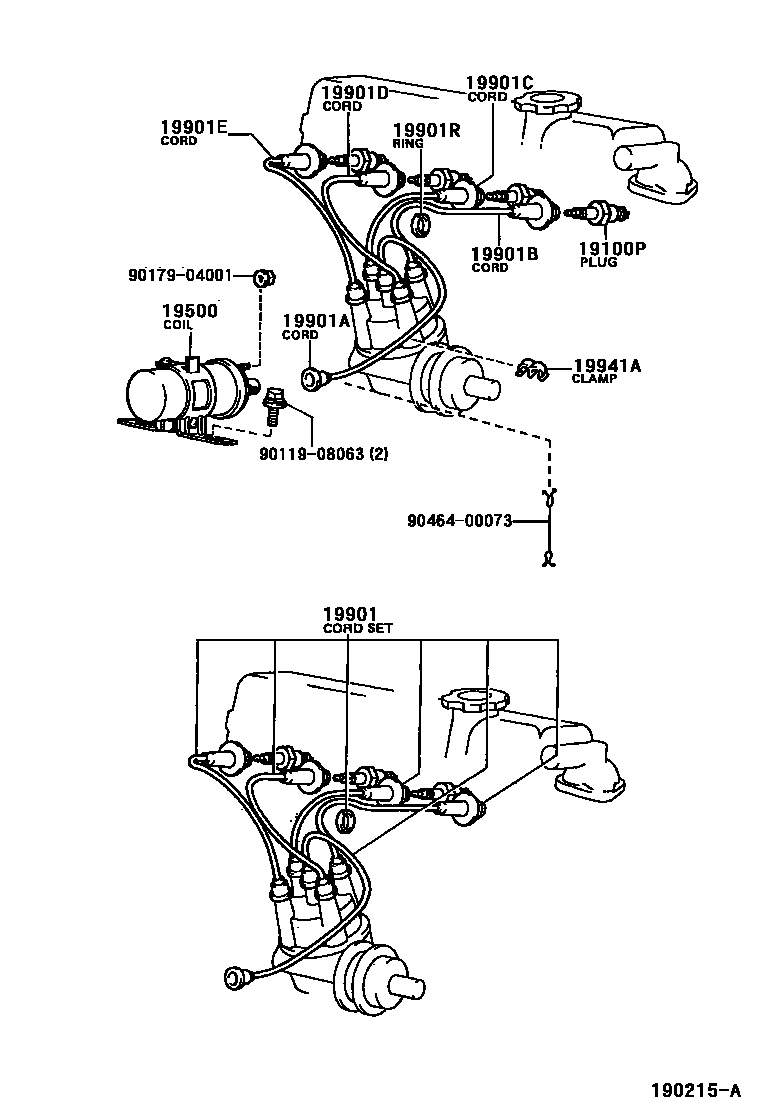

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1TYPE A 0002 1TYPE B 0003 1 0004 1 0005 1 0006 1

19100PPLUG, SPARK

main90080-91234i1RZE..RZF81..GEN200208-200406

BPR5EY

main90080-91235i7KE..KF72,82..SRF200208-200501

BPR5EY11,(L)

main90080-91235i7KE..KF82..RHD;7KE..KF72,80..GEN,PHL,VN200204-200302

BPR5EY11

main90080-91236i7KE..KF72,82..SRF200204-200501

W16EXR-U11,(L)

main90080-91237i1RZE..RZF81..GEN200208-200406

W16EXR-U

main90919-01059i7K..KF60,70,80199612-200612

W16EX-U

sub90919-01064

main90919-01064i1RZE,2RZE..RZF71,80,81,85..GEN,PHL,SA200004-200503

W16EXR-U

main90919-01091i7KE..KF72,8#..GEN,MA,PHL,VN199804-200204

W16EXR-U11

main90919-01091i7KE..KF82..RHD;7KE..KF72,80..GEN,MA,PHL,VN200204-200503

W16EXR-U11,(J)

main90919-01104i7KE..KF82..SRF;7KE..KF72,80..RHD200208-200503

BPR5EY11,(J)

main90919-01115i2RZE..RZF84,85..LHD199911-200612

P16R

main90919-01223i7KE..KF60,80..TAIW199902-200707

P16R8

main90919-01224i7KE..KF82..VN;7KE..KF60,80..TAIW199902-200707

BPR5EP8

19500COIL ASSY, IGNITION

main90919-02149i7K..KF60,70,80199612-200612

main90919-02208i7KE..KF82..RHD;7KE..KF60,72,80199804-200707

main90919-02208i7K..KF80200208-200406

BRUNEI SPEC

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21605i7K..KF60,70,80199612-200612

TYPE A:REFER TO ILLUSTRATION

main90919-21606i7K..KF80199612-200406

TYPE B:REFER TO ILLUSTRATION

main90919-21610i7KE..KF82..RHD;7KE..KF60,72,80199804-200707

main90919-22357i2Y..YF60,80200004-200306

main90919-22371i1RZE,2RZE..RZF61,8#..DLX,GL,STD199911-200612

19901ACORD, COIL RESISTIVE

main90919-13475i7K..KF80..CBU199612-200406

TYPE B:REFER TO ILLUSTRATION

main90919-13476i7K..KF60,70,80199612-200612

TYPE A:REFER TO ILLUSTRATION

main90919-13477i7KE..KF82..RHD;7KE..KF60,72,80199804-200612

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12084i7K..KF60200208-200612

main90919-12084i7K..KF60,70,80199612-200406

TYPE A:REFER TO ILLUSTRATION

main90919-15257i7K..KF80199612-200406

TYPE B:REFER TO ILLUSTRATION

main90919-15352i2Y..YF60,80200004-200306

main90919-15412i1RZE,2RZE..RZF71,80,81,84,85199911-200612

main90919-15524i7KE..KF60,72,82;7KE..KF80..(SHRV,SRF)..(MA,TAIW)199804-200612

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12083i7K..KF60,70,80200208-200612

main90919-12083i7K..KF60,70,80199612-200208

TYPE A:REFER TO ILLUSTRATION

main90919-15353i2Y..YF60,80200004-200306

main90919-15413i1RZE,2RZE..RZF71,80,81,84,85199911-200612

main90919-15416i7K..KF80..CBU199612-200406

TYPE B:REFER TO ILLUSTRATION

main90919-15525i7KE..KF82..RHD;7KE..KF60,72,80199804-200612

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12083i7K..KF60,70,80199612-200208

TYPE A:REFER TO ILLUSTRATION

main90919-12083i7K..KF60,70,80200208-200612

main90919-15224i7K..KF80199612-200406

TYPE B:REFER TO ILLUSTRATION

main90919-15354i2Y..YF60,80200004-200306

main90919-15414i1RZE,2RZE..RZF71,80,81,84,85199911-200612

main90919-15536i7KE..KF80..SHRW..TAIW199804-200612

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12084i7K..KF60,70,80199612-200208

TYPE A:REFER TO ILLUSTRATION

main90919-12084i7K..KF60,70,80200208-200612

main90919-15257i7K..KF80..CBU199612-200208

TYPE B:REFER TO ILLUSTRATION

main90919-15355i2Y..YF60,80200004-200306

main90919-15415i1RZE,2RZE..RZF61,8#..DLX,GL,STD199911-200612

main90919-15537i7KE..KF80..SHRW..TAIW199804-200612

19901RRING, RUBBER SPARK PLUG RESISTIVE CORD

main90202-11067i7K..KF60,70,80199612-200612

19941CLAMP, RESISTIVE CORD, NO.1

main90929-01031i2Y..YF60,80200004-200306

19941ACLAMP(FOR RESISTIVE CORD)

main19941-46020i7KE..KF60,72,80;7K#..KF8#..CBU..RHD199612-200612

9011908063

main90119-08063

9017904001

main90179-04001

9046400073

main90464-00073

14 parts on this diagram · 6 diagrams in section
