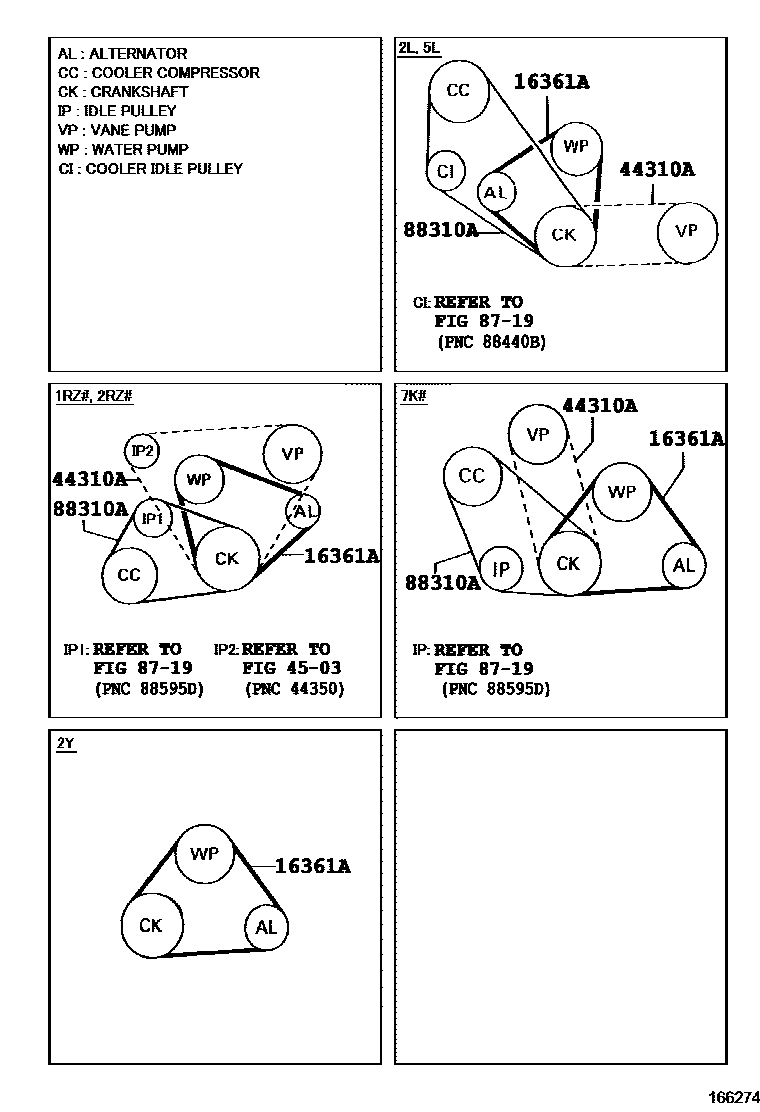

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-92010i2L..LF60,70,80199612-199706

L=1035X2,(L),BANDO

main90080-92012i2L..LF60,70,80199612-199706

L=1035X2,(L),MITSUBOSHI

main90080-92016i2L..LF82..RHD;2L..LF60,72,80200102-200212

(L),MITSUBOSHI

main90080-92017i2L..LF60,7#,80,82..RHD199905-200102

(L),BANDO

main90082-93003i7KE..KF82;7K#..KF60,7#,80..(SCB,SHRV,SRF)..(LUB,T2)..(GEN,MA,TAIW)200208

main90916-02211i2L,5L..LF61,80,81,85..PHL,SA; 2L..LF60,72,80,82..RHD200009-200102

(J)

main90916-02336i1RZE,2RZE..RZF61,8#..DLX,GL,STD200208-200612

main99364-80830i2Y..YF60,80200004-200306

44310ABELT, V(FOR VANE PUMP)

main90080-92013iLF60,80,82..GEN200208-200406

main90080-92014iKF72,82..RHD200208-200406

main99332-00825iLF61,81,85200004-200306

L=825

main99332-01120iRZF61,8#..DLX,GL,STD200208-200612

L=1120

main99332-50830iKF82..LHD200211-200301

L=830

main99332-50935iKF60,80..MA,PHL,TAIW,VN199804-200302

L=935

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91179iRZF81..GEN200208-200406

L=940

main90080-92023iKF80..CBU..GEN;KF7#,82..(DLX,GL)..CBU199911-200208

main90080-92024iLF80,82..GEN200208-200406

main99332-11030iKF80..GLX;KF60,70..(4FC,5F)..CBU;KF80..CBU..(GEN,MA,TAIW,VN)199612-199911

L=1030

main99332-11245iLF70,80..CBU..RHD199612-199911

L=1245

main99332-11250iLF85200004-200306

L=1250

main99364-20940iRZF80,81,85..(GL,GLX)..(PHL,SA)200210-200306

L=940

main99364-30940iRZF8#..(DLX,GL)..(PHL,SA,TAIW)200210-200612

L=940

5 parts on this diagram · 1 diagram in section
