Toyota T.U.V — WATER PUMP

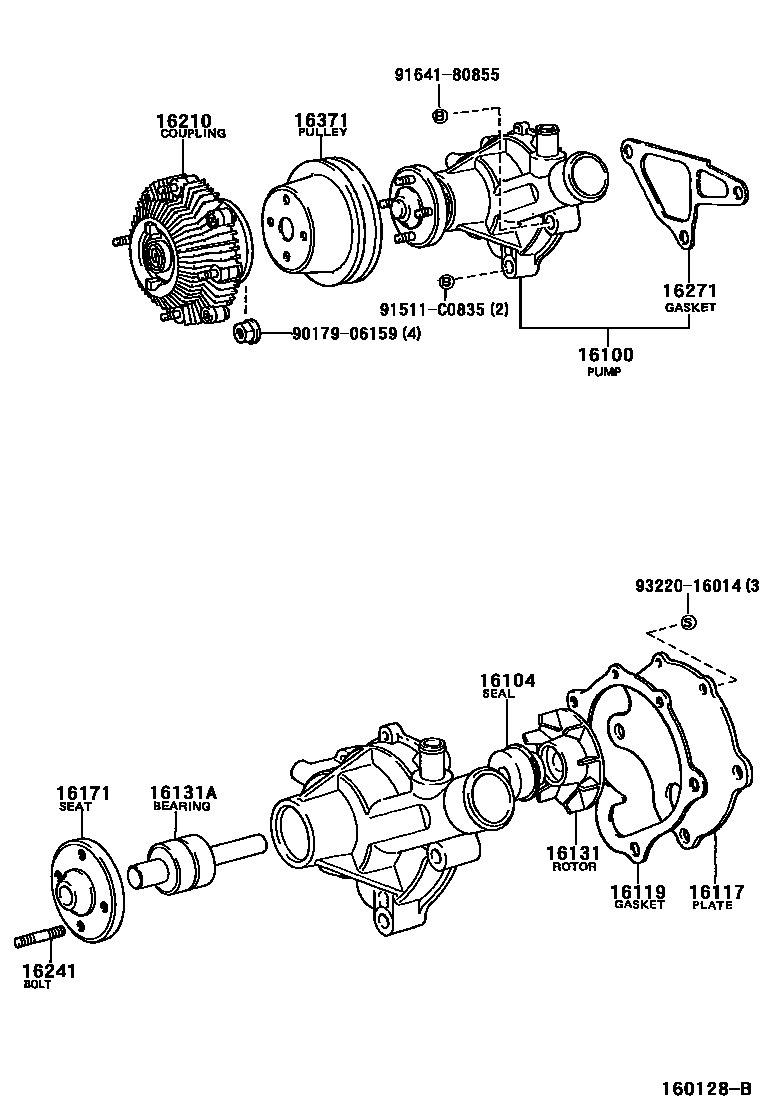

Parts diagram

16100PUMP ASSY, ENGINE WATER

16104SEAL SET, WATER PUMP

16117PLATE, WATER PUMP

16119GASKET, WATER PUMP BODY

16131ROTOR, WATER PUMP

16131ABEARING, WATER PUMP

16171SEAT, WATER PUMP PULLEY

16210COUPLING ASSY, FLUID

16241BOLT, STUD(FOR WATER PUMP COUPLING)

16271GASKET, WATER PUMP

16371PULLEY, FAN

9017906159

91511C0835

9164180855

9322016014

15 parts on this diagram · 4 diagrams in section

WATER PUMP for Toyota T.U.V

This section contains 28 genuine Toyota parts for the WATER PUMP system of the Toyota T.U.V. Key components include: PUMP ASSY, ENGINE WATER, SEAL SET, WATER PUMP, PLATE, WATER PUMP, GASKET, WATER PUMP BODY, GASKET, WATER PUMP COVER.
